FL3

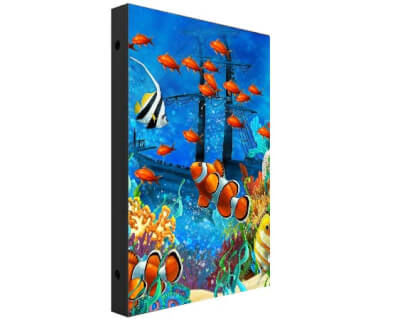

LED obrazovka série FL pro vnitřní fixní instalace.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 3,1 mm
Rozměry panelu: 576 × 750 mm
Svítivost (nits): 1 000
Hmotnost: 27 - 35 kg
Specifikace
| Item | Value | |
|---|---|---|
| Pixel Pitch(mm) |
3.1
|
|
| Pixel Density(pixels/㎡) |
102400
|
|
| Viewing Angle(Deg.) |
160(H)/160(V)
|
|
| Brightness(nits) |
1000
|
|
| Grey Level(bit) |
12/14/16
|
|
| Refresh Rate(Hz) |
1920/2880/3840
|
|
| Panel Size(mm) |
500(W)×750(H)×70(D)
|
500(W)×1000(H)×70(D)
|
| Panel Size(inch) |
19.68(W)×29.53(H)×2.75(D)
|
19.68(W)×39.37(H)×2.75(D)
|
| Panel Resolution(pixels) |
160 ×240
|
160×320
|
| Panel Weight(kg/㎡) |
27-35
|
|
| Panel Type and Material |
Iron
|
|
| Module Size(mm) |
250(W)×250(H)
|
|
| Module Size(inch) |
9.84(W)×9.84(H)
|
|
| Module Resolution(pixels) |
80×80
|
|
| Protection Grade |
IP20
|
|
| Serviceability |
Front/Rear
|
|
| Avg.Power Consumption(W/㎡) |
135(AC)
|
|
| Max.Power Consumption(W/㎡) |
540(AC)
|
|
| Brightness Adjustment |
Manual/Auto/Programmable
|
|
| Operating Temp/Humidity(℃/%RH) |
-20~+50/10~90
|
|
| Storage Temp/Humidity(℃/%RH) |
-40~+60/0~90
|
|
| Lifetime(hours) |
100000
|
|
| Compliant Standard |
CE,FCC,RoHS
|
|
