FDU-3138

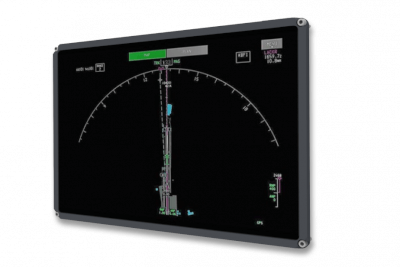

15.4” (13” x 8”) Flight Display Unit for civil aviation

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Best-in-class true 8-bit AMLCD for superior color rendering
  • Very wide viewing angles – ideal for cross-cockpit viewability
  • Guaranteed brightness and color range over the operating temperature of the display and over its lifetime
  • Multiple video inputs
  • Quiet by design, thanks to its closed and fan-less architecture

Product description

The FDU-3138 is a 13x8 inch Flight Display Unit featuring multiple digital video inputs. Equipped with the latest, sunlight readable Active Matrix Liquid Crystal Display and LED backlight technology, the FDU-3138 provides high brightness and contrast along with excellent viewing angles in all directions. This allows the display to be mounted both vertically in front of the pilots and tilted horizontally in the pedestal, assuring perfect cross-cockpit vision.

All HW and SW of the FDU-3138 have been developed according to DO-178B and DO-254 up to DAL A. Therefore this display is the ideal front end for PART23 and PART25 electronic flight instrument systems.

Specifikace

ELECTRO-OPTICAL

Panel type Active matrix LCD (normally black)
Panel active area 15.4" diagonal (13" x 8")
Panel resolution 1680x1050 (WSXGA+)
The WSXGA+ resolution creates a close match to the combined resolution of two 10.4” XGA displays placed side-by-side in portrait orientation.
Color depth True 8-bit - 16,777,216 colors and 256 grayscales
Viewing angle H: +/-80°
V: +/-80°
Backlight LED backlight
Luminance 0.1 up to 120fL
Sunlight readability Contrast ratio >14:1 @ 10,000 fC
Heater Heater for display startup at extremely cold temperatures (optional)

INTERFACES

Video inputs (1) Dual video inputs are standard
Default Inputs: 2x DVI-D
Other video inputs possible (Arinc 818, HD-SDI, etc.)"
Inputs/Outputs (1) Video source/mode selection and BIT data retrieval via either RS-422 or A429
Discretes for display configuration, lighting mode selection, etc.
ARINC 429 control, RS-232 maintenance interface

 CONTROLS

Brightness control (1) ALS sensors, bezel control (optional), or remote
Bezel controls (1) Available with custom bezels
Touch screen Multi-touch capability through PCAP with built-in mechanisms for certifiable touch interface (optional)

GENERAL SPECIFICATIONS

Power supply 28VDC, MIL-STD-704A
Power consumption 36W @ 100fL (20C ambient)
Weight 3 kg / 6.6 lbs
Cooling Passive cooling (no requirement for forced external cooling) - fan-less design
Built-in testing PBIT / CBIT / IBIT
Software RTCA/DO-178 up to Design Assurance Level (DAL) A
Hardware RTCA/DO-254 up to Design Assurance Level (DAL) A

 ENVIRONMENTAL CONDITIONS

Compliance DO-160G
High temperature +55C operational / +71C short-time / +85C ground survival
Low temperature -15C operational / -40C short-time / -55C ground survival
Altitude 40,000 ft
