F1-40
IP68 ATR (Air Transport Rack) Mission Computer
Základní informace
ATR (Air Transport Rack) is a standard that specifies form fit and function of enclosures designed to protect the main internal system. This military enclosure must meet EMI / EMC requirements to prevent noise interference, provide lightning protection and be isolated from small particle contaminants. So, it can be deployed in unmanned aerial vehicles, fighters, and helicopters. To satisfy diverse conditions, ATR chassis are available in different sizes—1/2, 3/4 and Full ATR sizes. Based on 3/4 ATR size, 7Starlake launches a new Rugged Airborne Mission Computer F1-40.
- MIL-STD810G Thermal, shock, vibration,
- Humidity / EMI / EMC conditions
- Equipped NVIDIA® Jetson AGX Orin GPU module 2048 CUDA® cores / 64 Tensor Cores
- 9th / 8th Gen Intel® Xeon® / Core ™ processor
- IP68 Chassis with D38999 connectors
- Dual Redundant MIL-STD-1553 connections
- Dual ARINC 429 input connections
- 4 x DDR4-2400MHz, up to 128GB,
- MIL-STD 461/1275/704 10V~33V DC-Input
- Extreme Temperature : -40~+55 Degree
Specifikace
| CPU | Core i7-9850HE (6 Cores/12 Threads, 9M Cache, up to 4.40 GHz), 45W Core i7-9850HL (6 Cores/12 Threads, 9M Cache, up to 4.10 GHz), 25W Xeon E-2276ME (6 Cores/12 Threads, 12M Cache, up to 4.50 GHz), 45W Xeon E-2276ML (6 Cores/12 Threads, 12M Cache, up to 4.20 GHz), 25W |
| Memory type | 4 x 260 Pin DDR4 2400MHz SO-DIMM (up to 128GB) |
| GPU (Options) | Jetson AGX Orin™ AI supercomputer NVIDIA Ampere Architecture 2048 NVIDIA® CUDA® cores / 64 Tensor Cores 12 core Cortex A78 ARM 64-bit CPU / 32GB 256-bit LPDDR5 |
| VIDEO OUTPUT | 3 x DVI |
| VIDEO INPUT | 4 Channel capture module for 4 x SMA male connectors |
| COM | 3 x RS-232 3 x RS-232/422/485 |
| USB | 2 x USB3.0 2 x USB2.0 |
| Ethernet | 4 x GbE |
| Power Type | 10V ~ 33V DC IN |
| Storage | 1 x2.5” SATA SSD, 1TB |
| Operating Temperature | -40 to +55 C |
| Dimension | Estimated = (WxDxH) = 7.5"x12"x6" |

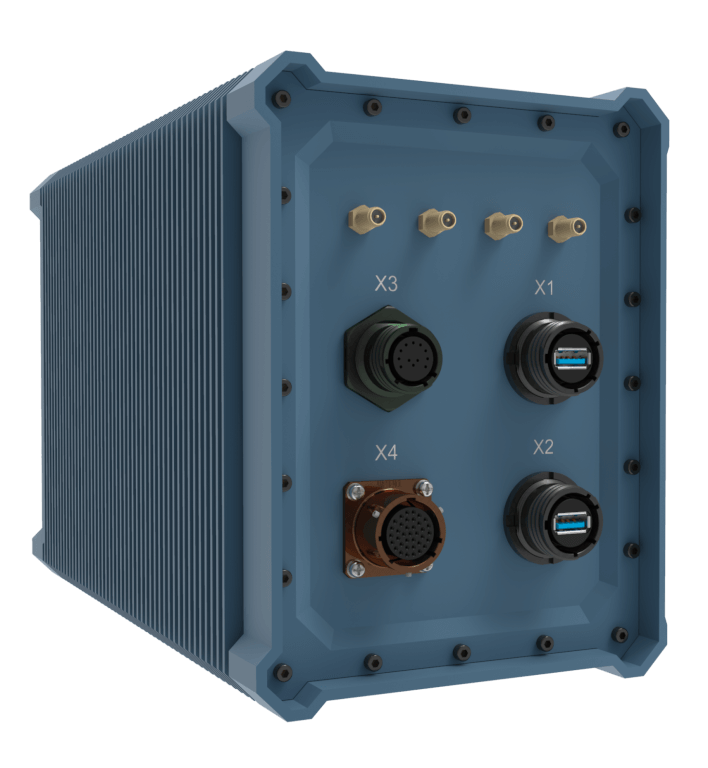

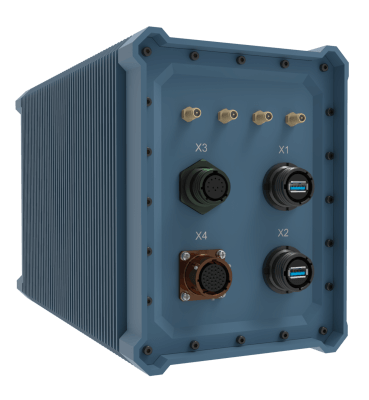

| FRONT I/O | 1 x USB 3.0 with D38999 connector on X1 1 x USB 3.0 with D38999 connector on X2 2 x USB 2.0 with D38999 connector on X3 4 x GbE LAN with 35pin D38999 connector on X4 4 x SMA connectors |

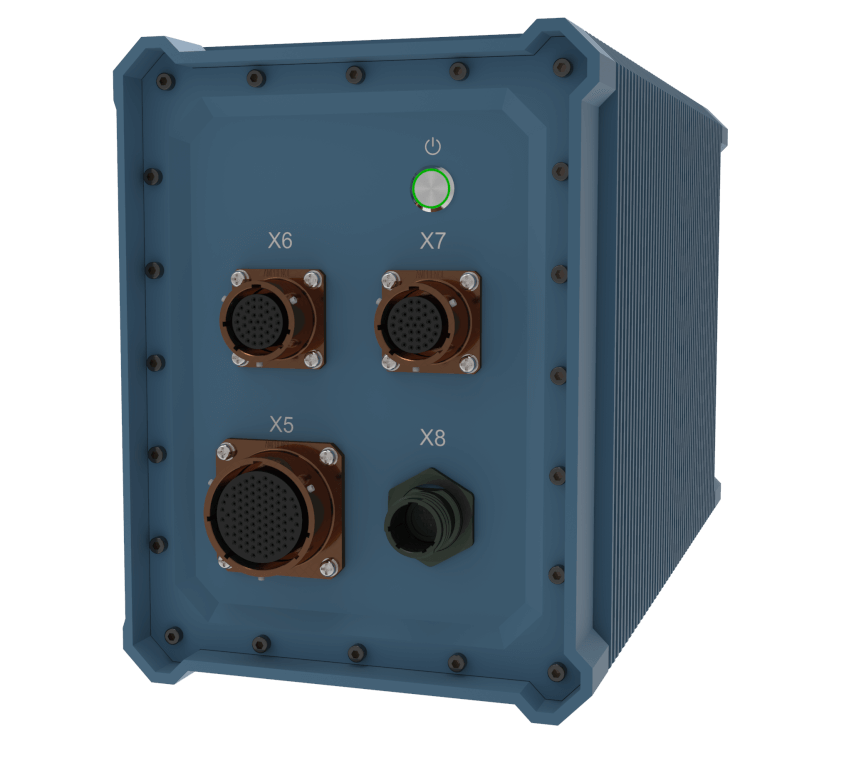

| REAR I/O | 3 x DVI with 55pin D38999 connector on X5 3 x RS-232 with 35pin D38999 connector on X6 3 x RS232/485 with 35pin D38999 connector on X7 1 x 10V~33V DC-in with D38999 connector on X8 |
| Enviromental standards | MIL-STD-810, 461, 1275, IP-68 Qualifications |
