ATR (Air Transport Rack) QUADRO P5000 4 GPU System

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

ATR (Air Transport Rack) is a standard that specifies form fit and function of enclosures designed to protect the main internal critical parts. This military enclosure not only meets EMI / EMC requirements, but also sustains heavy vibrations up to 10Grms. In addition, with mezzanine type connectors, the completed system can support up to 75G shock. Thus, it can be deployed in unmanned vehicles, fighters, helicopters and battleship as well. Based on 3/4 ATR size, 7Starlake launches a new Rugged Airborne Mission Computer F1-30G4.  As a modular mission computer, F1-30G4 features a built in EBX OXY5741 SBC powered by Intel 9th XEON E-2276ML (6 Cores, Max Turbo up to 4.2GHz). Fusing 4 x NVIDIA QUADRO P5000 MXM with 4 x LAN expansions, 4 x USB and 2 x COM for device connects ability and 600W Military Standard 18V~36V DC-In power module, F1-30G4 is an optimum choice for high performance computing, demanding graphics applications, GPU-accelerated data processing, yet ruggedized enough for harsh environments.

  • SFF Rugged PCIe/104 computer with Intel®9th Gen.® Xeon® E-2276ML CPU
  • 4 x NVIDIA® Quadro Embedded P5000 MXM GPU (2048 CUDA, 16GB GDDR5)
  • DDR4-2666 Up to 128GB
  • DC-DC 18V~36V, MIL-STD 461/1275
  • MIL-STD 810 Shock up to 75Grms
  • Operating Temp. -40°C~+55°C


CPU Intel® Xeon® E-2276ML (12M Cache, up to 2.0/4.2 GHz)
MEMORY TYPE 4 x SO-DIMM DDR4 2666 MHz up to 128GB
GPU 4 x NVIDIA Quadro P5000 Embedded GPU (2048 CUDA, 16GB GDDR5 each GPU)
STORAGE 1 x M.2 (M-key, type:2280, SATA/PCIe 3.0x4 NVMe)
Support up to 4x SATAIII (RAID 0,1,5) SSD backup storage

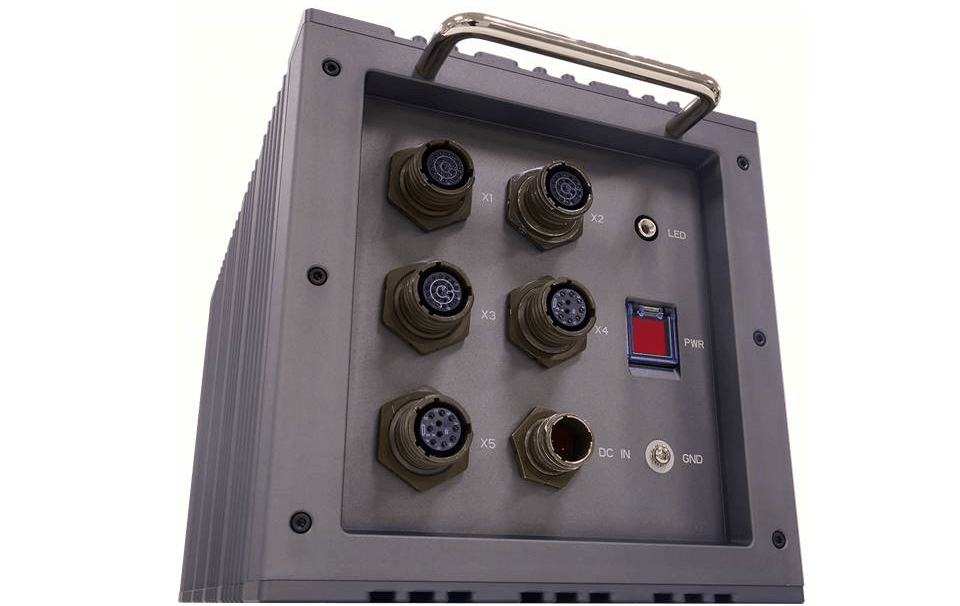

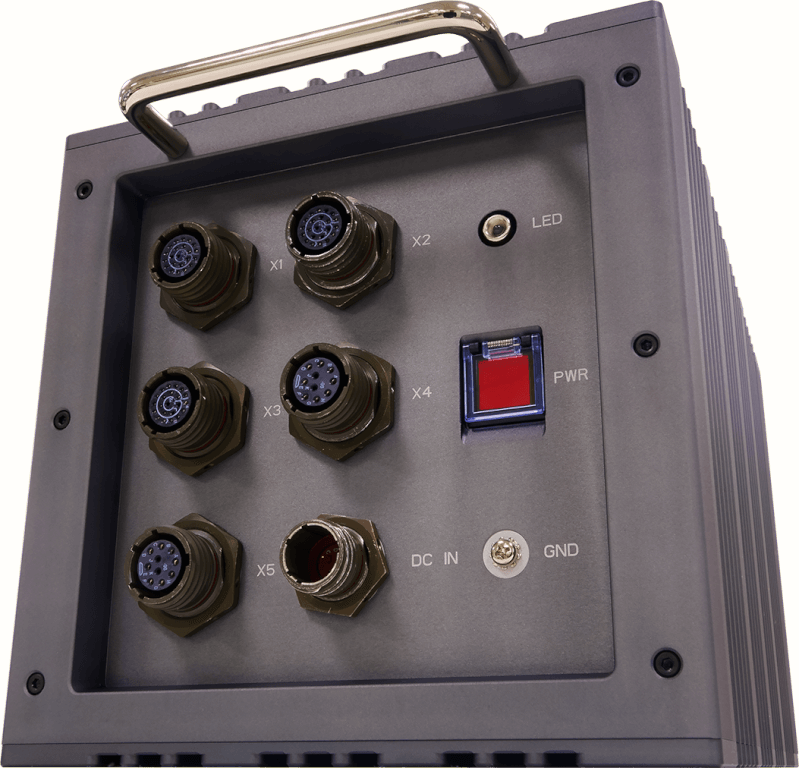

FRONT I/O Amphenol D38999 Connectors or M12 Connectors by request
2 x USB
2 x LAN
2 x COM
1 x DVI
1 x DC-IN 18V~36V

DC-IN 18V~36V, 600W Military Standard Power Module
with Cosel Solution

Operating Temp.

-40°C to +55°C

Storage Temp.

-40°C to +85°C

Relative Humidity

Up to 95%RH @40°C, non-condensing

Ingress Protection

Designed for compliance with IP65, MIL-STD-810G


Designed to meet MIL-STD-461

Stackable Modules
  • PCIe/104(FPE module) Expand 4 extra 10/100/1000 mbps Gigabit Ethernet
  • PCIe/104(FPE) Dual 10GbE SFP+ module
  • PCIe/104(FPE) I/O module
  • PCIe/104(FPE) MXM Graphics Card for 4 DisplayPort Module Support NVIDIA® GTX1080M/QUADRO P5000 GPU
  • Storage carrier with 1x 2.5" HDD/SSD socket and 2x mSATA socket PCIe/104 SSD/mSATA/Mini PCIe Carrier
    support 1x 2.5" SSD + 2x mini PCIe LAN module (MT321/MT321R)



16 Kg (35.24 lb)

Dimension (W x H x D)

125 x 250 x 325 mm
