21-inch auxiliary display for Air Traffic Control


Základní informace

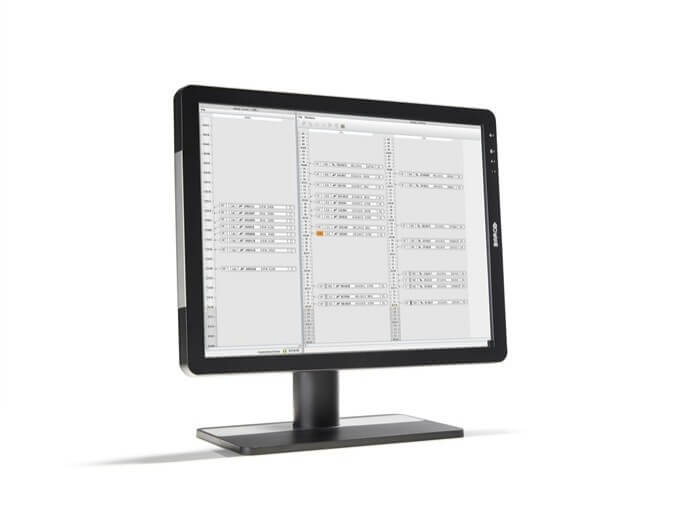

The growing reliance on advanced software tools increases the need for more diverse HMI display surfaces in ATC and ATM environments. Barco's MDRC-2221, a 21.3-inch auxiliary display with a 1,600 x 1,200 resolution and wide viewing angle, answers that need. Thanks to its 4:3 aspect ratio screen, the display is suited for a wide range of applications. Furthermore, its high-quality IPS LCD panel and continuous backlight stabilization technology ensure high and stable brightness, and offer a wide viewing angle. Easily integrated into consoles, the MDRC-2221 ATM is highly accepted in air traffic control rooms worldwide.
Unequaled image quality

Featuring the latest LCD panel technologies, the MDRC-2221 ATM offers brightness uniformity in white, gray, and black images. The wide viewing angle, high contrast, and anti-reflective surface allow you to observe data at a glance, and in the best possible conditions.
Unique design

The fan-less design ensures noiseless operation for improved operator comfort. All cables are hidden and connectors are easily accessible. Thanks to its slim design, low weight and mechanical flexibility, the display provides control center designers with a new degree of freedom to reduce plant and energy costs.
Green performance

Using mercury-free and energy-saving LED backlights, the MDRC-2221 ATM significantly reduces power consumption. When not in active use, the display consumes near-zero energy and produces no heat.

Klíčové prvky

Low life cycle cost
No reflection and high contrast at a wide viewing angle
Noiseless performance thanks to fan-less design
Lightweight and stylish design
Easy integration
Long-term support with 3-year warranty
Worldwide acceptance


Active screen diagonal 541 mm (21.3")
Screen technology TFT Color LCD
Active screen area 432 mm x 324 mm (17" x 12.76")
Aspect Ratio 4:03
Native resolution 1600x1200
Pixel pitch 0.270 x 0.270 mm
Viewing angle 178°
Brightness 250 cd/m² (max typ 440 cd/m²)
Contrast ratio 1500:01:00
Video input signals DP, DVI
Backlight Output Stabilization (BLOS) yes
Backlight LED - Backlight optical stabilization
Ambient Light Compensation (ALC) yes, preset value in OSD
Touch screen no
Power consumption 23 W nominal; less than 1.0 W in off/stand-by mode; DPMS support
Power requirements 100-250 V (nominal)
USB ports 1 upstream, 2 downstream
USB standard 2.0
Dimensions w/o stand (W x H x D) 376 x 484 x 75.93 mm (portrait)
484 x 376 x 75.93 mm (landscape)
Dimensions with stand (W x H x D) 376 x 591.7 x 201.33 mm (portrait)
484 x 537.7 x 201.33 mm (landscape)
Dimensions packaged (W x H x D) 584 x 667 x 272 mm
Net weight with stand 8.7 kg
Net weight w/o stand 5.25 kg
Net weight packaged with stand 12.4 kg
Height adjustment range 100 mm +/- 5.0 mm
Tilt -5° / +20°
Swivel -45° / +45°
Pivot 90°
Mounting standard VESA (100 mm)
Certifications CE (MDD 93/42/EEC class I product), CE - 2004/ 108/EC, IEC 60601-1:2005, ANSI/AAMI ES60601-1 (2005/(R)2012 + C1:2009/(R)2012 + A2:2010/(R)2012), CAN/CSA-C22.2 No. 60601-1 (2008), DEMKO - EN 60601- 1:2006, EN 60601-1-2:2007, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS
Supplied accessories User Guide
Cable routing strap
Video cables (1x DVI, 1x DP)
Main cables (UK, European (CEBEC/KEMA) or USA (UL/CSA)
Adaptor plug NEMA 5-15P)
USB 2.0 cable
This adaptor is a forming part of the device. (Manufacturer: BridgePower Corp.; Model: BPM060S24F09; Input: 100-240 V AC, 50-60 Hz, 1.5 A; Output: +24 V DCV, 2.7 A)
Warranty 3 years
