TL-354

Tenký, lehký displej o úhlopříčce 21,3" nabízí rozlišení 1 600 x 1 200.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

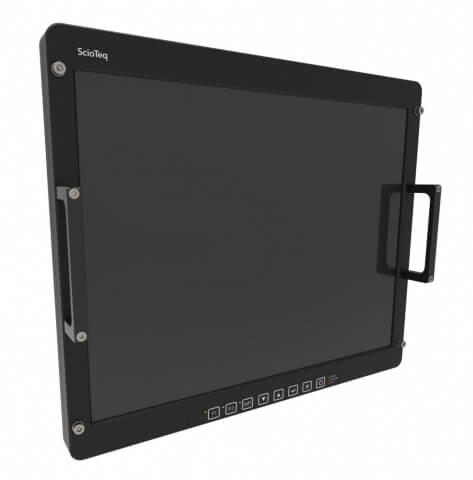

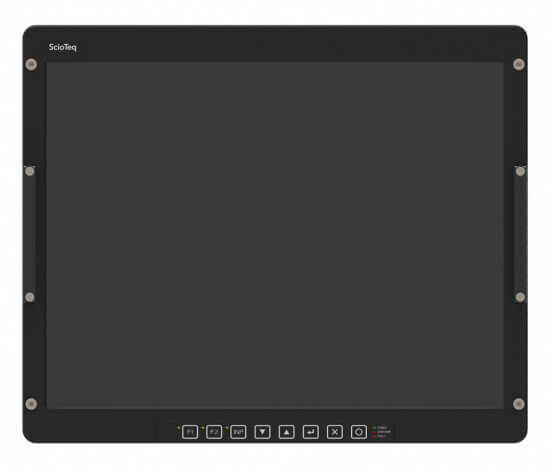

The TL-354 is a Ruggedized 21.3” UXGA (1600 x 1200) Multi-purpose display

  • Cost effectiveness
  • Long life
  • Low weight yet extremely rugged design
  • Drop in replacement for legacy 20.1" UXGA displays
  • Optional Touch Screen
  • Optional LFC (LCD Flickering Compensation)
  • MIL-S-901D grade A option
  • Mission-critical operations in naval, ground army and unmanned environments

The TL-354 is a new 21.3” thin and light-weight rugged display combining unmatched thinness with exceptionally low weight.

A perfect fit for legacy systems
ScioTeq's TL-354 offers a new generation upgrade solution for ScioTeq's TL-351 in terms of LCD resolution, ruggedization, and display functionality.

The TL-354 can serve as a drop-in replacement for customers needing displays with a 4:3 aspect ratio and 1600 x 1200 screen resolution. It is the perfect solution for legacy systems currently equipped with a 20.1” UXGA display. The TL-354 features a first-class 21.3” Active Matrix Liquid Crystal Display offering excellent performance in terms of brightness, dimming, crispness, contrast, and viewing angle. Equipped with an LED backlight, the TL-354 offers a long lifetime and reduces power consumption.

ScioTeq's TL displays are designed for application in the most extreme environments, making them suited for naval combat, army, UAV and airborne use.

Previous names: Barco TL-354 / Esterline CODIS TL354



Specifikace

Panel type Active Matrix LCD
Panel active area 21.3 inch diagonal
Resolution 1600 x 1200 (UXGA)
Backlight LED
Contrast ratio 1 500:1
Brightness 300 cd/m² (87fL) typical
Signal Inputs 2 x DVI, VGA, HD-SDI, RS-232 or RS-422, USB, Ethernet
Controls OSD/web interface
SNMP remote display control
Indicators Green ‘Power’ LED, Red ‘Fault’ LED
OSD On Screen Display & web interface
Power 28 VDC or 115-220VAC
per MIL-STD-704E and MIL-STD1275D guidelines
Power consumption 40 W typical (without heating)
Weight  ± 10kg

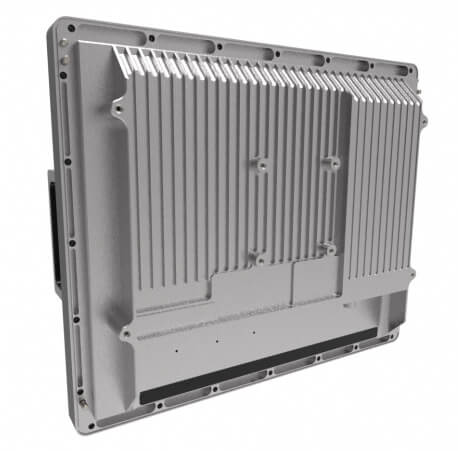

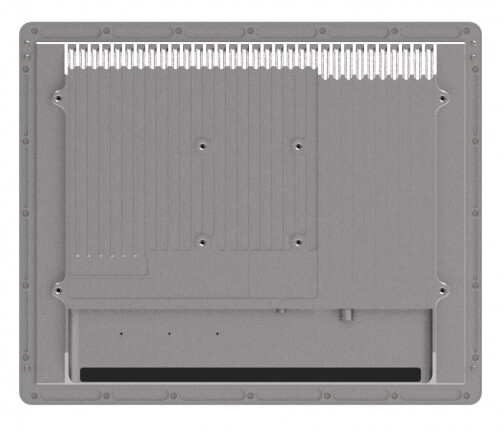

Cooling  Passive
Finishing Bezel color: Black RAL 9005
Surface treatment: ROHS compliant Chromated Cr3 (MIL-DTL-5541 type II Class 3
Vibration Ships MIL-STD-167-1 Type 1
Airborne 2g MIL-E-5400T Fig.2, curve IIa (sheet 2 of 3)
Airborne 5g MIL-E-5400T Fig.2, curve IIIa (sheet 2 of 3) (option)
Randome MIL-STD-810F, Meth 514.5 Proc I, comp. wheeled vehicle (C2 & C3) (option)
Shock MIL-STD-810F Meth 516.5,  30g - 12,5ms
MIL-S-901D,Lightweight, Grade A (option)
Operational temperature   Low temp: -10°C (immediate usable image at power up, image fully compliant with specs after 30 minutes)
 0°C ~ +50°C
 -25°C ~ +55°C (option)
Storage temperature  -40°C ~ +70°C
Relative humidity max. 95% @ 40°C
Drip proof MIL-STD-810F, Meth 506.4 proc III
Altitude low pressure 40.000ft (187 mbar)
Rapid decompression MIL-STD-810F, Meth 500.4 Proc III, 8.000ft to 40.000ft in 15s (option)
EMI / EMC MIL-STD-461F - Navy Applications
MIL-STD-461F - Navy Applications / Navy fixed and Airforce Applications (option)
FCC FCC-A
Ingress protection IPx5 on display front
IPx5 on unit level with optional circular MIL connectors
