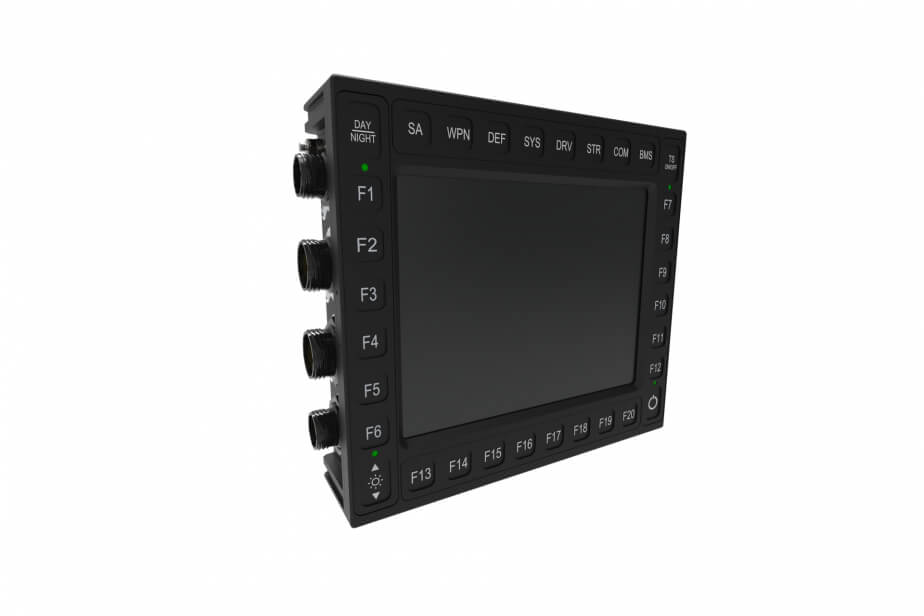

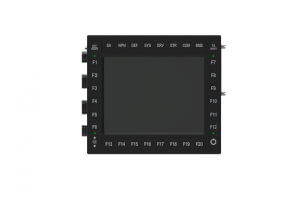

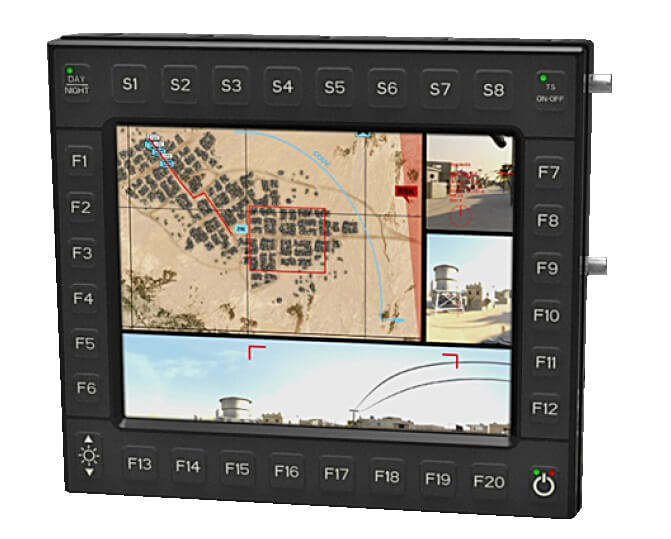

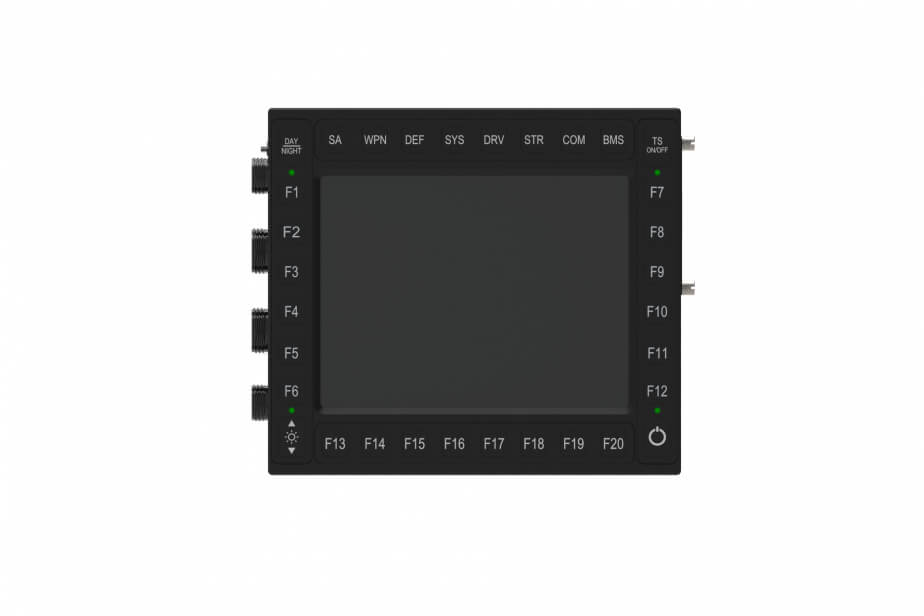

SV-126
10" smart display with touchscreen
Základní informace
- 10-inch XGA (1024 x 768) color AMLCD, LED backlight
- Fan-less, rugged design
- Full MIL qualification
- Impact-resistant, glass-on-glass, analog-resistive touchscreen
- Optically-bonded, index-matched, high-contrast display
- Intel® mobile multi-CoreTM CPUs
- COM ExpressTM architecture that enables easy technology insertion to latest processors
- Modular design with six expansion slots
- Optional Codis video XMC board for hard real-time video
- Field-removable storage with SATA 3.1 compliant (6 Gb/s) SSDs
- Compact footprint for easy integration into vehicles
Compact, rugged design with powerful processing and open architecture delivers situational awareness for C4ISR
The SV-126 smart display from ScioTeq combines a 10.4-inch high-bright touchscreen with the graphics and computing power of a rugged computer to provide a high-performance visualization processor in a compact footprint. Because of its design for SWaP-C and modular open architecture, this display is ideal for vehicle mounted C4ISR applications
Extreme Performance
Our SV-126 smart display offers the latest proven technologies, such as a rugged analog-resistive, low reflection touchscreen and the latest generation of Intel® Core™ processors. These features are packaged to deliver optimal performance while operating in harsh environments.
Modular Design
The SV-126 display includes six expansion slots based on open industry standards. This modularity allows customized IO configurations and dedicated hardware controllers to support multiple security domains.
Image Processing and Real-Time Performance
The SV-126 display connects to a variety of imaging and data sources to deliver enhanced situational awareness. The media-management software supplied with the display enables hardware-accelerated GPU-based image processing with low latency for stream decoding, scaling, and windowing. The display can be optionally equipped with the VXB video board for hard real-time video inputs directly to the screen.
Previouse names Barco SV-126 / Esterline Codis SV-126
Specifikace
| Panel type | Active Matrix LCD |
| Panel active area | 10.4 inch diagonal |
| Resolution | 1024 x 768 (XGA) |
| Color depth |
6 bits/color |
| Backlight | LED |
| Contrast ratio | 700:1 in dark room typical |
| Dimming ratio | >200:1 typical |
| Brightness | Day mode: 650 cd/m² / 190 fL min. Night mode: 3.43 cd/m² / 1.0 fL max., dimmable to black |
| Signal Inputs | 2x Intel PRO1000 Gigabit Ethernet ports 4 x USB 2.0 4 x serial lines (RS-232/RS-422/RS-485) 2 x CAN bus (ISO 11898, CAN 2.0 A/B, and J1939 compliant) HD audio in/out/micro4x video inputs RS-170, PAL/NTSC 11 x GPIO + PTT I/O isolated or buffered as applicable |
| HMI | 4 control keys 32 function keys Rugged AR high-resolution touchscreen |
| Computing | Intel® Quad Core™ I7-6822EQ, 4 x 2.0 GHz |
| RAM | Up to 16 GB DDR3 SODIMM |
| Graphics card | Integrated Intel® HD Graphics 530 |
| Storage | 256 GB field-removable SSD, SATA 3.1 compliant (6 Gb/sec) |
| Option slots | 1x PCI-e 1 x XMC or M.2 mini PCI-e 3 x mini PCI-e |
| Vibration | Vibration: tracked-vehicle profile - MIL-STD-810G |
| Shock | 40 g, 23 ms (6 shocks/axis) - MIL-STD-810G |
| Operational temperature | -46° to +65° C (+71° C with limitations) - MIL-STD-810G |
| Storage temperature | -51° to +71° C - MIL-STD-810G |
| Humidity | 95% RH temperature cycle 60°C - MIL-STD-810G |
| Drip proof | MIL-STD-810F Meth 506.4 proc III |
| Altitude | 40.000 ft operating, 50.000 ft non-operating - MIL-STD-810G |
| EMI / EMC | MIL-STD-461G - Ground Army |
| Sand & dust, salt fog | MIL-STD-810G - 48 hours, 5-percent concentration, blowing sand/dust |
| GENERAL SPECIFICATIONS | |
| Power | MIL-STD-1275E compliant |
| Power consumption | 50 W typical, 80 W max. (without heaters) |
| Weight | 5.9 kg |
| Dimensions | 286 x 254 x 68 mm (w x h x d) |
| Cooling | Passive |
