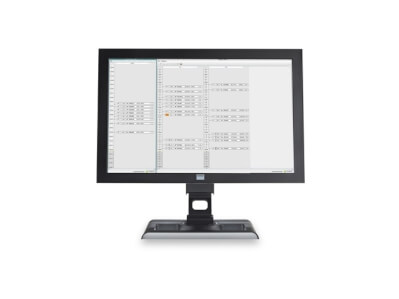

Codis MDRC-1119 ATM/TS

19" Auxiliary Touchscreen Display for Air Traffic Control (ATC). Today's ATC and ATM environments require more diverse HMI display surfaces. That's why Codis developed the MDRC-1119 ATM/TS display, a 19-inch auxiliary monitor with 1 280 x 1 024 resolution

Stanislav Valášek

Stanislav Valášek

Dispečerská pracoviště +420 515 915 031

Klíčové prvky

  • 1,280 x 1,024 resolution
  • 5:4 aspect ratio
  • Optional protective front cover
  • Easy integration into consoles
  • User-friendly touch screen interface

Specifikace

Active screen diagonal 483 mm (19")
Screen technology TFT color LCD
Active screen area 301 x 376 mm (11.85 x 14.80")
Aspect Ratio 5:04
Native resolution 1,280 x 1,024
Pixel pitch 0.294 x 0.294 mm
Viewing angle 178°
Brightness 180 cd/m² (stabilized max white)
Contrast ratio 1,300:1
Video input signals DVI, VGA
Backlight Output Stabilization (BLOS) yes
Dimensions Without stand: landscape: 418 x 346 x 70 mm (16.5 x 13.6 x 2.76") With stand: Landscape: 418 x 535~425 x 223 mm
Ambient Light Compensation (ALC) no
Touch screen yes
