FD-361

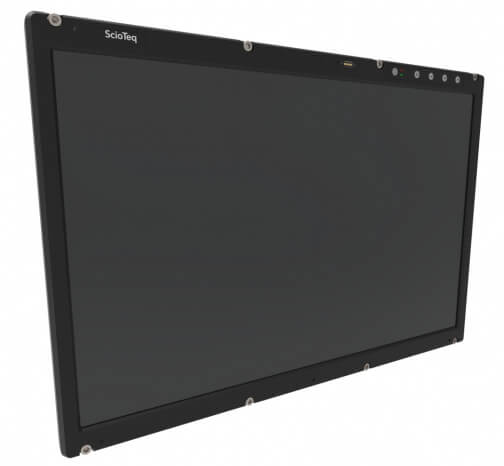

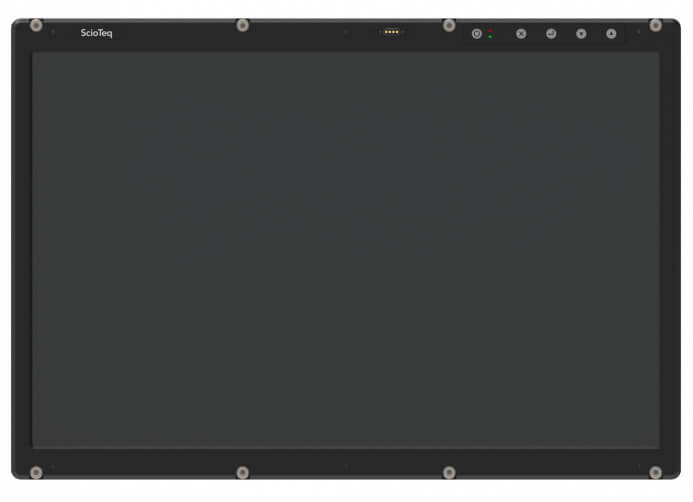

The FD-361 is a Ruggedized 24” WUXGA (1920 x 1200) Multi-touch workstation display
Základní informace
- Cost effectiveness
- Long life
- Low weight yet extremely rugged design
- Multi-Touch
- LFC (LCD Flickering Compensation)
- Mission-critical operations in naval and unmanned environments
- Option to mount a lighted writing surface in front of the display
The FD-361 is a 24” WUXGA Main Console display offering a brightness of 440 cd/m² to ensure full sunlight readability under all expected ambient lighting conditions typically encountered on board of Navy ships. The FD-361 features a glove compatible projected-capacitive multi-touch screen. Combined with LCD Flicker Compensation (LFC) technology and an extremely compact, lightweight design, it is perfectly suited for mission-critical operations in naval environments.
The LWS-361 is an option, available for the FD-361, providing an optically clear writing surface to be attached in front of the FD-361 front surface, allowing the operator to make annotations using a grease pencil. The LWS-361 provides edge lighting of the writing surface to make the grease pencil markings visible to the operator. The LWS-361 includes a mounting mechanism to fasten it to the FD361 face.
Previous name: Esterline CODIS FD-361
Specifikace
| Panel type | Active Matrix LCD |
| Panel active area | 24 inch diagonal |
| Resolution | 1920 x 1200 (WUXGA) |
| Backlight | LED |
| Dimming ratio | 2000:1 |
| Contrast ratio | 1000:1 |
| Brightness | 440 cd/m² (128fL) typical |
| Viewing angle | ± 89° horizontal and vertical |
| Touch | Multi-Touch touchscreen |
| Signal Inputs | DVI-D / VGA |
| USB | USB2.0 for Touch communication |
| Vibration operational | MIL-STD-167-1 Type 1 |
| Vibration non-operational (shipping and handling) | MIL-STD-810G Meth 514.6, Cat 2 and Cat 9 |
| Shock | MIL-S-901D Grade A, Class I hard mount |
| Operational Temperature | MIL-STD-810G Meth 501.5 and Meth 502.5, Proc II high temperature: + 50°C (122°F) low temperature: 0°C (32°F) |
| Storage Temperature | MIL-STD-810G Meth 501.5 and Meth 502.5, Proc I high temperature: + 70°C (158°F) low temperature: - 40°C (-40°F) |
| Temperature shock | MIL-STD-810G Meth 503.5, Proc I-C 3 cycles from - 20°C up to + 50°C |
| Relative Humidity | MIL-STD-810G Meth 507.5, Proc II max 95% |
| Enclosure | MIL-STD-810G Meth 506.5, Proc III |
| Altitude low pressure | MIL-STD-810G Meth 500.5, Proc I & II operating: between 4,200ft and -1,900ft non-operating: up to 15,000ft |
| Salt Fog | MIL-STD-810G Meth 509.5 on display FRONT |
| Sand & Dust | MIL-STD-810G Meth 510.5, Proc I & II on display FRON |
| EMI / EMC | MIL-STD-461F - NAVY applications (Surface ships & Submarine internal) |

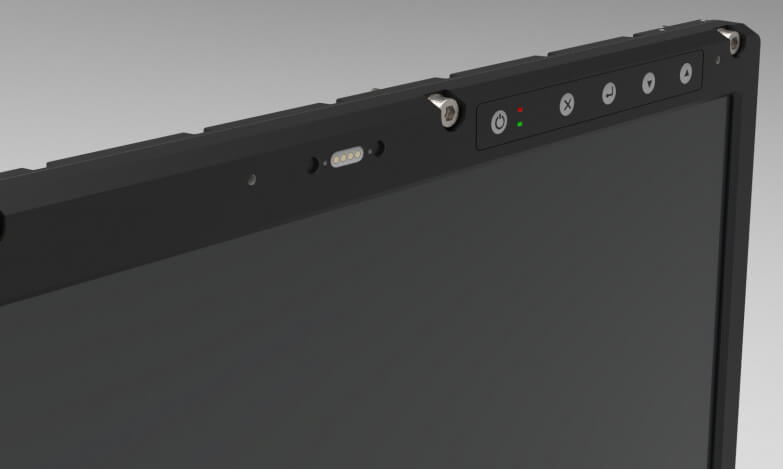

| Controls | UP / DOWN / SEL / QUIT / STANDBY in conjunction with OSD |
| Indicators | Green ‘Power’ LED, Red ‘Fault’ LED |
| OSD | On Screen Display & web interface |
| Power | 12 VDC |
| Power consumption | maximum 48W (at full display brightness) |
| Weight | 8.6 ± 0.25 kg (18.96 ± 0.55 lbs) |
| Cooling | Passive |
| Finishing | Bezel color: Black RAL 9005 Surface treatment: ROHS compliant Chromated Cr3 (MIL-DTL-5541 type II Class 3) |
