Ruggedized 15.6” WXGA (1366 x 786) Multi-touch control display

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  •     WXGA desktop X11 terminal and input device
  •     Screen brightness of 500 cd/m² for full sunlight readability
  •     Glove-compatible projected-capacitive multi-touch screen
  •     Support for up to 4 simultaneous touches and gestures
  •     Extremely compact, lightweight design
  •     Perfect configuration for mission-critical operations in naval  environments

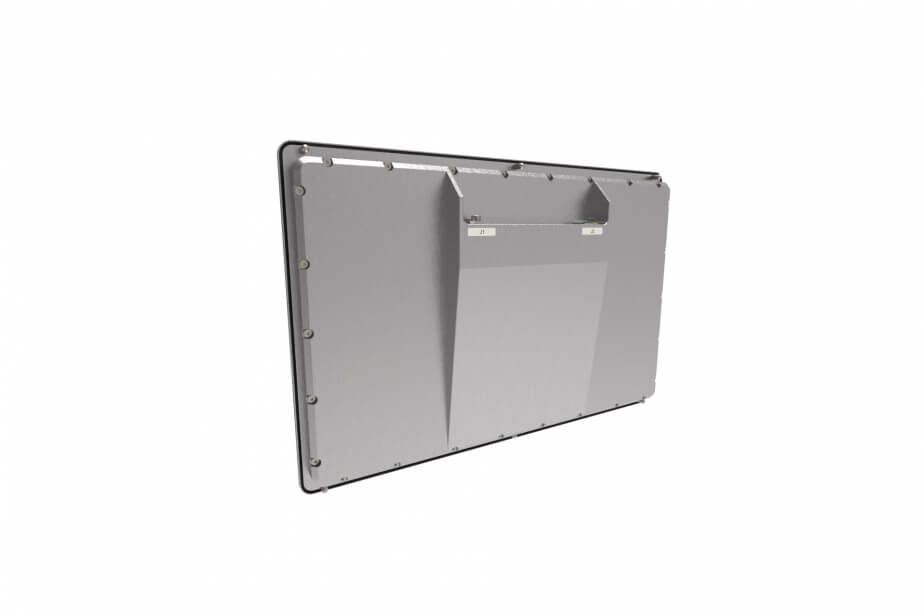

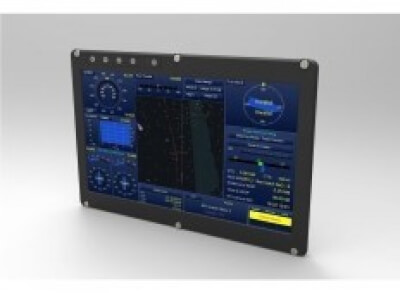

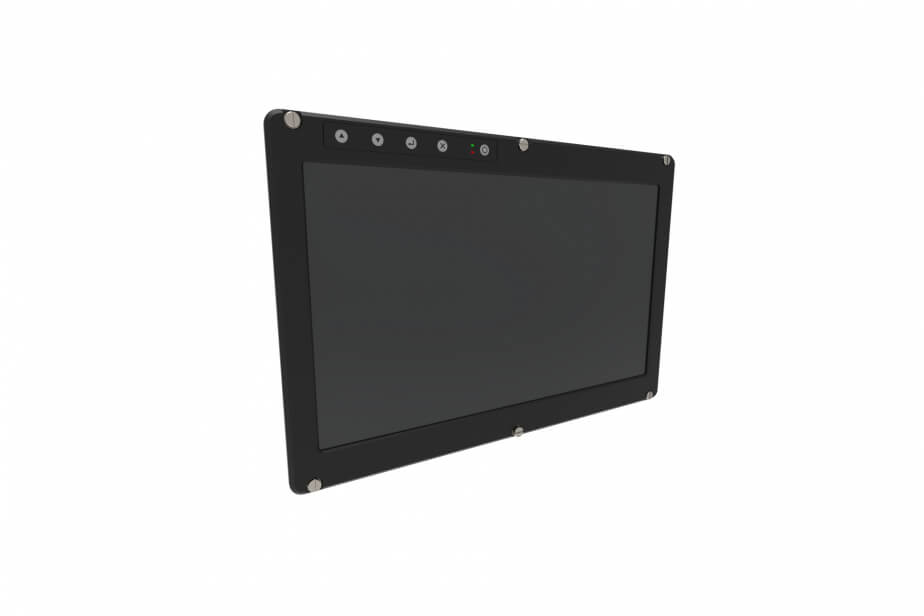

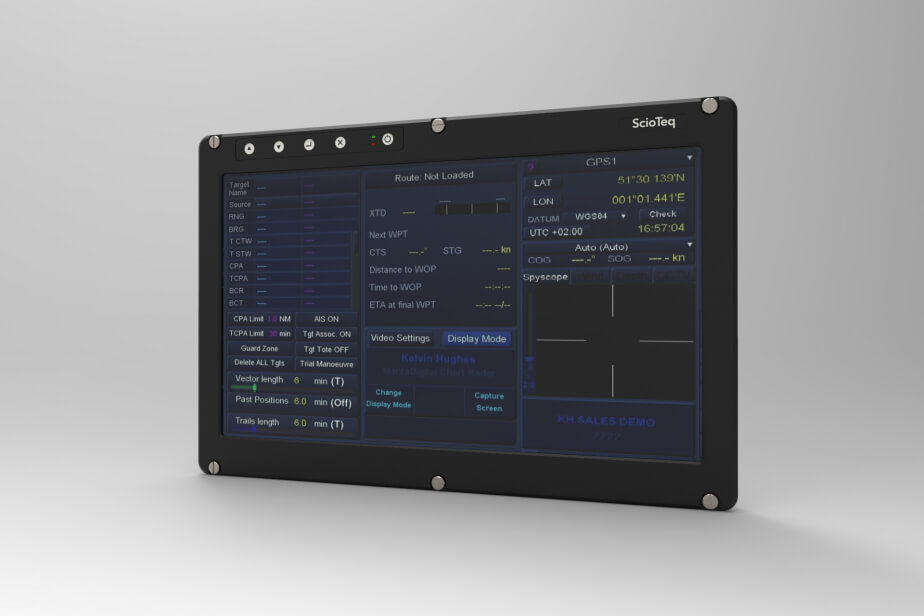

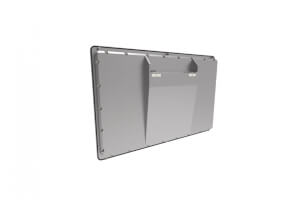

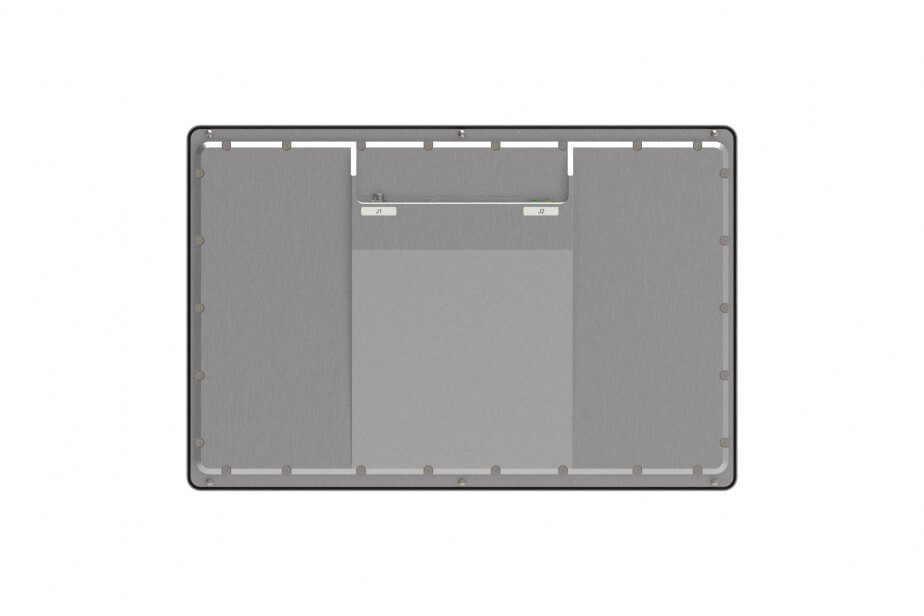

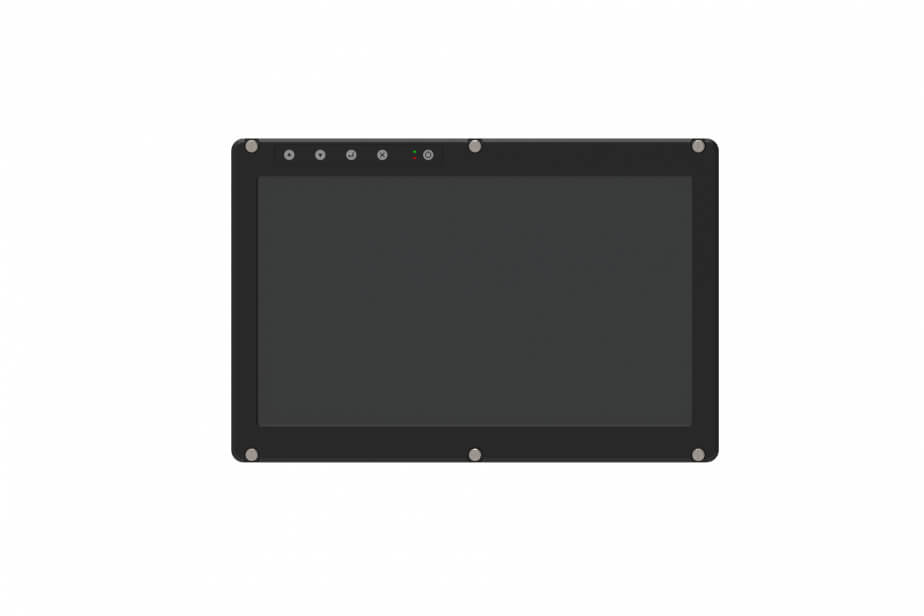

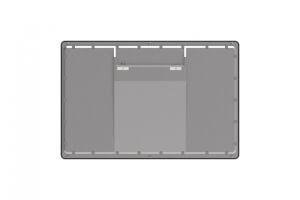

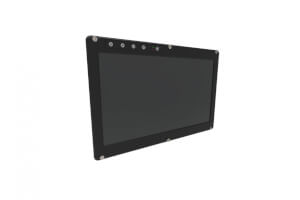

The FD-240 is a 15.6” WXGA desktop X11 terminal and input device. The screen offers a brightness of 500 cd/m² to ensure full sunlight readability under all expected ambient lighting conditions typically encountered on board of Navy ships. The FD-240 features a glove compatible projected-capacitive multi-touch screen supporting up to 4 simultaneous touches and gestures. Combined with an extremely compact, lightweight design, it is perfectly suited for mission-critical operations in naval environments



Panel size 15.6 inch
Resolution 1366 x 786 (WXGA)
Backlight LED
Brightness 500 cd/m² (146 fL) typical
Dimming ratio 1000:1
Contrast ratio 900:1
Viewing angle ± 80° horizontal and vertical
Touch Multi-Touch touchscreen
Vibration operational MIL-STD-167-1
Type 1
Vibration non-operational (shipping and handling) MIL-STD-810G
Meth 514.6, Cat 2 and Cat 9
Shock MIL-S-901D
Grade A, Class I hard mount
Operational Temperature MIL-STD-810G
Meth 501.5 and Meth 502.5, Proc II
high temperature: + 50°C (122°F)
low temperature: 0°C (32°F)
Storage Temperature MIL-STD-810G
Meth 501.5 and Meth 502.5, Proc I
high temperature: + 70°C (158°F)
low temperature: - 40°C (-40°F)
Temperature shock MIL-STD-810G
Meth 503.5, Proc I-C
3 cycles from - 20°C up to + 50°C
Relative Humidity MIL-STD-810G
Meth 507.5, Proc II
max 95%
Enclosure (Drip) MIL-STD-810G
Meth 506.5, Proc III
Altitude low pressure MIL-STD-810G
Meth 500.5, Proc I & II
operating: between 4,200 ft and -1,900 ft
non-operating: up to 15,000 ft
Rapid decompression MIL-STD-810G
Meth 500.5, Proc III
from 5,000 ft to 35,000 ft
Salt Fog MIL-STD-810G
Meth 509.5
on display FRONT
Sand & Dust MIL-STD-810G
Meth 510.5, Proc I & II
on display FRONT
EMI / EMC MIL-STD-461F - NAVY applications (Surface ships & Submarine internal)
Controls  UP / DOWN / SEL / QUIT / STANDBY
in conjunction with OSD
Indicators Green ‘Power’ LED, Red ‘Fault’ LED
OSD On Screen Display & web interface
Signal Inputs X11 over the RJ45 ethernet interface
Power 12 VDC 10% (Switchcraft connector RASPC10PS)
Power consumption  maximum 40W (at full display brightness)
Weight  3.35 ± 0.15 kg (7.39 ± 0.33 lbs)
Finishing Bezel color: Black RAL 9005
Surface treatment: ROHS compliant Chromated Cr3 (MIL-DTL-5541 type II Class 3)
