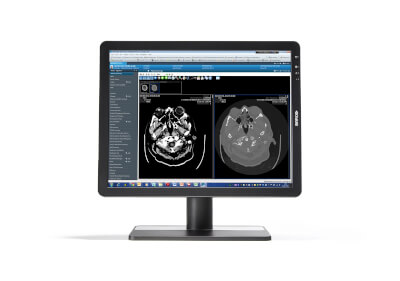

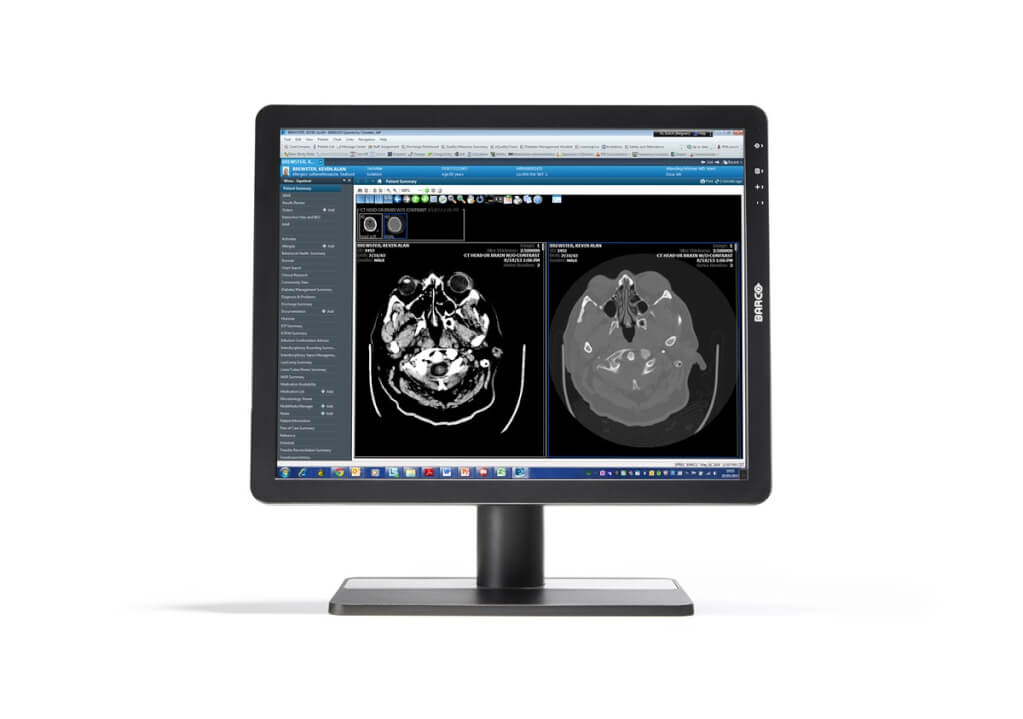

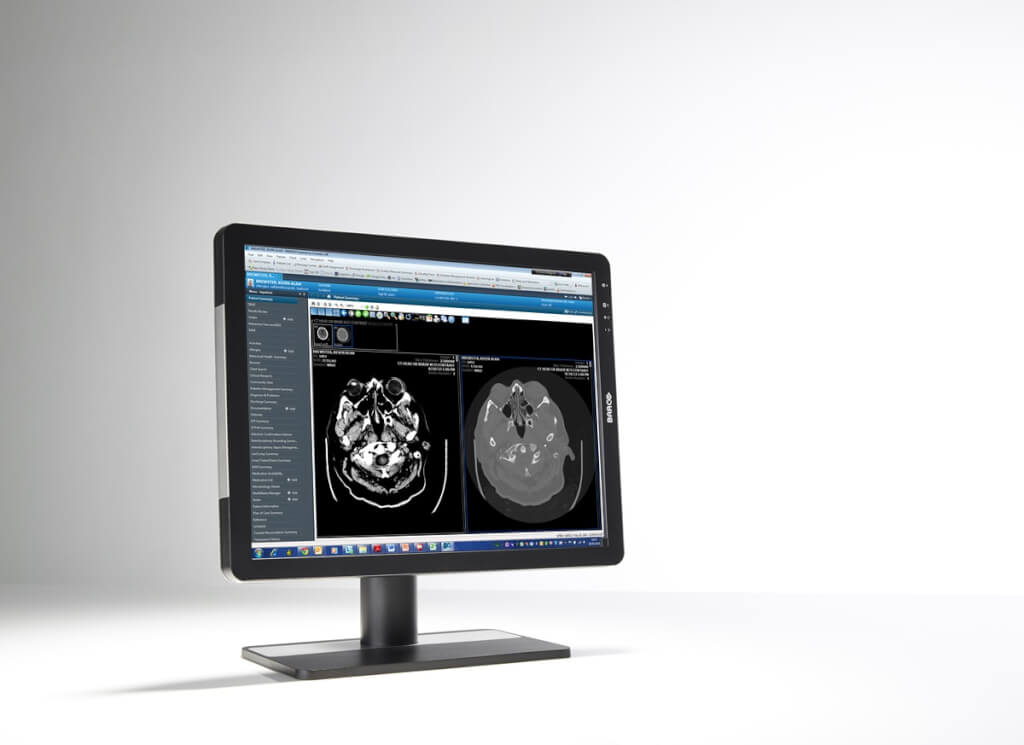

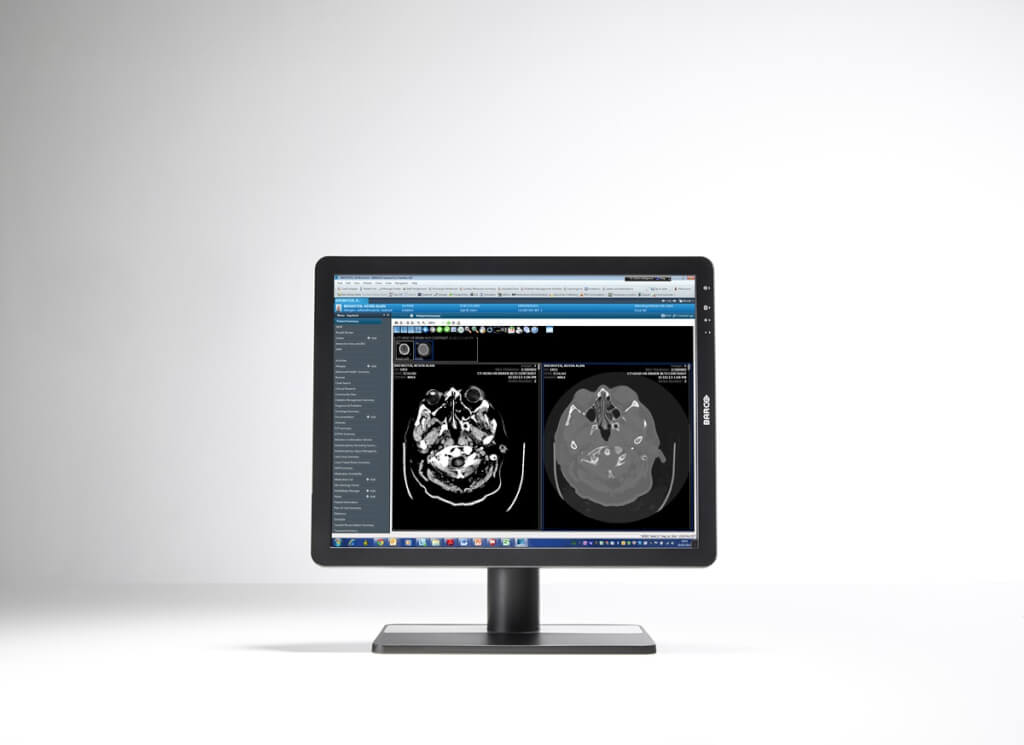

Eonis MDRC-2221

21" clinical display for clinical image review

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • The perfect side display for radiologists
  • With front sensor for consistent images
  • With remote QA management tools

Barco's Eonis® 21" offers a 40% higher calibrated luminance and almost twice the contrast ratio of the previous generation. It comes with a unique front consistency sensor to guarantee consistent images over time, making it ideal for viewing standard PACS images, RIS data, and image-enabled EMR.

With a full-screen format and 2MP resolution for viewing consistent, quality-controlled images for accurate image review, it is the perfect side display for radiologists.

Designed to boost productivity & ergonomics

Equipped with LED backlights, Eonis® 21" features a 250 cd/m² calibrated luminance and an excellent contrast ratio, allowing you to view high-detail images quickly and efficiently and with fewer image manipulations. IPS panel technology ensures accurate images even when looked at from a wide viewing angle. Built-in ambient light presets ensure perfect image quality in dark or bright reading environments.

The front-of-screen consistency sensor works seamlessly together with Barco's MediCal QAWeb service for quality assurance and remote asset management and automatically aligns image quality every time the display is switched on, providing you with a solid basis for confident image review.

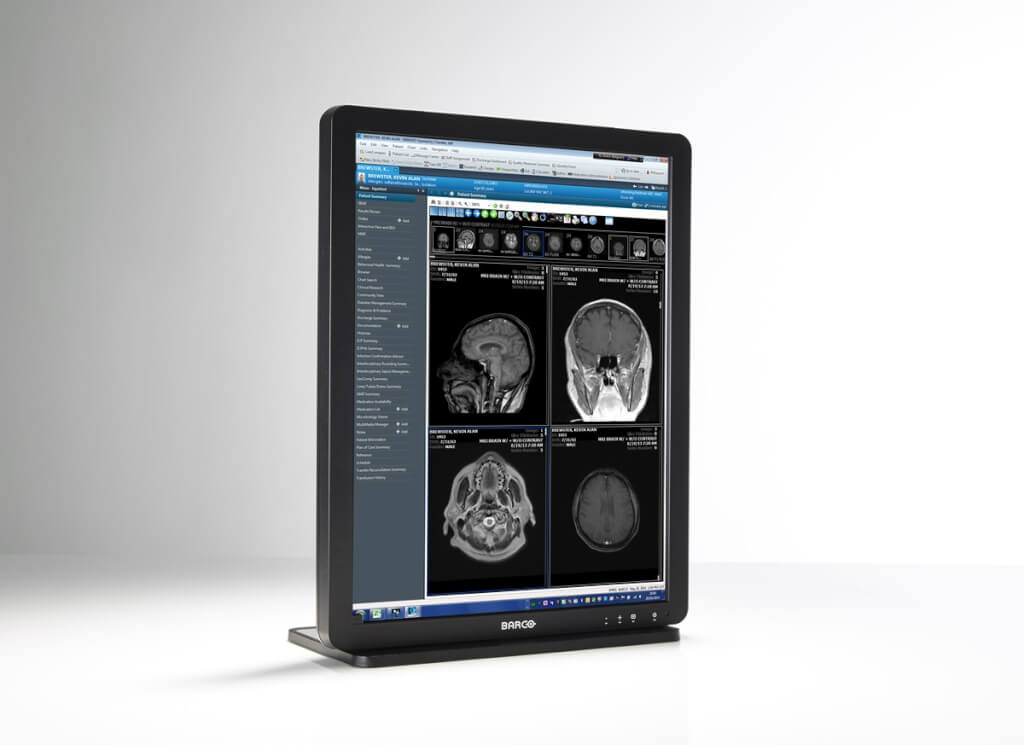

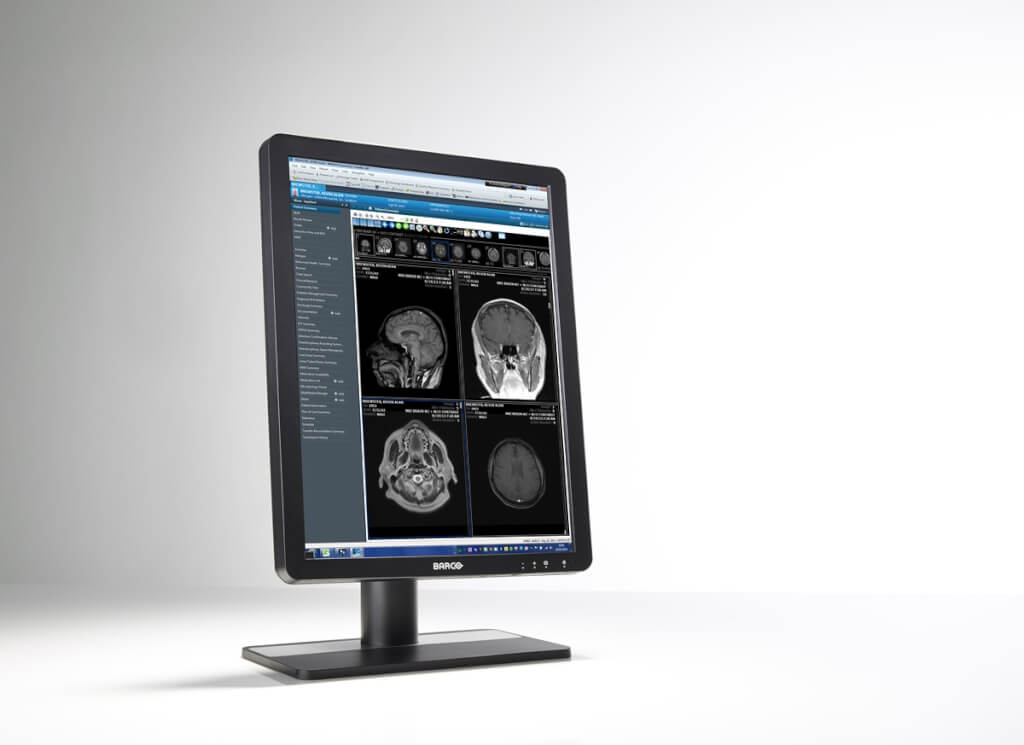

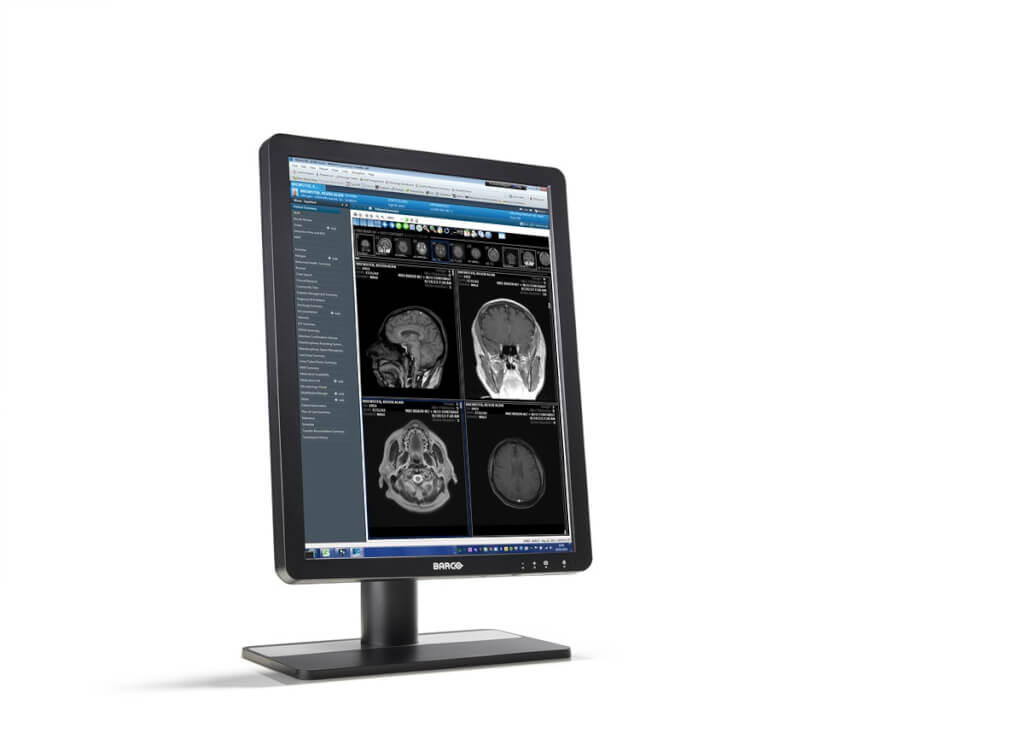

The display offers flexible tilt and swivel capabilities and a space-saving design to make viewing more ergonomic. Additionally, positioning the 21-inch screen in portrait orientation provides you with more flexibility when viewing skeletal radiography images or patient data.

Specifikace

Active screen size (diagonal) 541 mm (21.3")
Active screen size (H x V) 432 mm x 324 mm (17" x 12.76")
Aspect ratio (H:V) 4:3
Resolution 2MP (1600 x 1200)
Screen technology TFT Color LCD
Pixel pitch 0.270
Color imaging Yes
Gray imaging Yes
Color support 10 bit
Viewing angle (H, V) 178°
Ambient Light Compensation (ALC) Yes, preset values in OSD
Front sensor Yes
Maximum luminance 440 cd/m2; typical
DICOM calibrated luminance 250 cd/m²
Contrast ratio 1500:1 typical
Response time (Tr + Tf) 20 ms
Housing color Black + Silver
Video input signals DisplayPort, DVI
USB ports 1 upstream, 2 downstream
USB standard 2.0
Power requirements (nominal) 100 - 240 V
Power consumption (nominal) 32 W (< 1W in stand-by)
Power save mode Yes
Power management DPMS
OSD languages English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean
Dimensions with stand (W x H x D) 376 x 591.7 x 201.33 mm (portrait)
Dimensions w/o stand (W x H x D) 376 x 484 x 75.93 mm (portrait)
Dimensions packaged (W x H x D) 584 x 667 x 272 mm
Net weight with stand 8.7 kg
Net weight w/o stand 5.25 kg
Net weight packaged with stand 12.4 kg
Height adjustment range 100.0 +/- 5.0 mm
Tilt -5° / +20°
Swivel -45° / +45°
Pivot Yes
Mounting standard VESA (100 mm)
Screen protection N/A
Certifications CE (MDD 93/42/EEC class I product), CE-2014/30/EU, IEC 60601-1(ed.3), IEC 60601-1(ed.3);am1, ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:12), CAN/CSA-C22.2 No. 60601-1 (2014), EN 60601-1-2:2015, EN 60601-1:2006/A11:2011/A12:2014,EN 60601-1:2006/A1:2013, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS, BSMI
Supplied accessories User Guide
  Cable routing strap
  Video cables (1x DVI + 1x DP)
  Main cables (UK, European (CEBEC/KEMA) or USA (UL/CSA; adaptor plug NEMA 5-15P))
  USB 2.0 cable
  Cleaning cloth
  This adapter is a forming part of the medical device.
  (Manufacturer: BridgePower Corp., BPM060S24F09; Input: 100-240 V AC, 50-60 Hz, 1.5 A; Output: +24V DC, 2.7 A)
QA software MediCal QAWeb & QAWeb PP
Warranty 3 years
Operating temperature +10°C / +35°C
Storage - transport temperature -20°C / +60°C
Operating humidity 20% - 85% (non-condensing)
Storage - transport humidity 5% - 95% (non-condensing)
Operating altitude 3000 m
Storage - transport altitude 5500 m
Operating pressure 70 kPa - 106 kPa
Storage - transport pressure 50 kPa - 106 kPa
