Eonis 24" MDRC-2224

24" clinical display for hospital-wide viewing of clinical data and images 24" clinical display designed for infection control

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace varianta BL

  • 24" display for reviewing clinical images
  • With front sensor for consistent images
  • With remote QA management tools

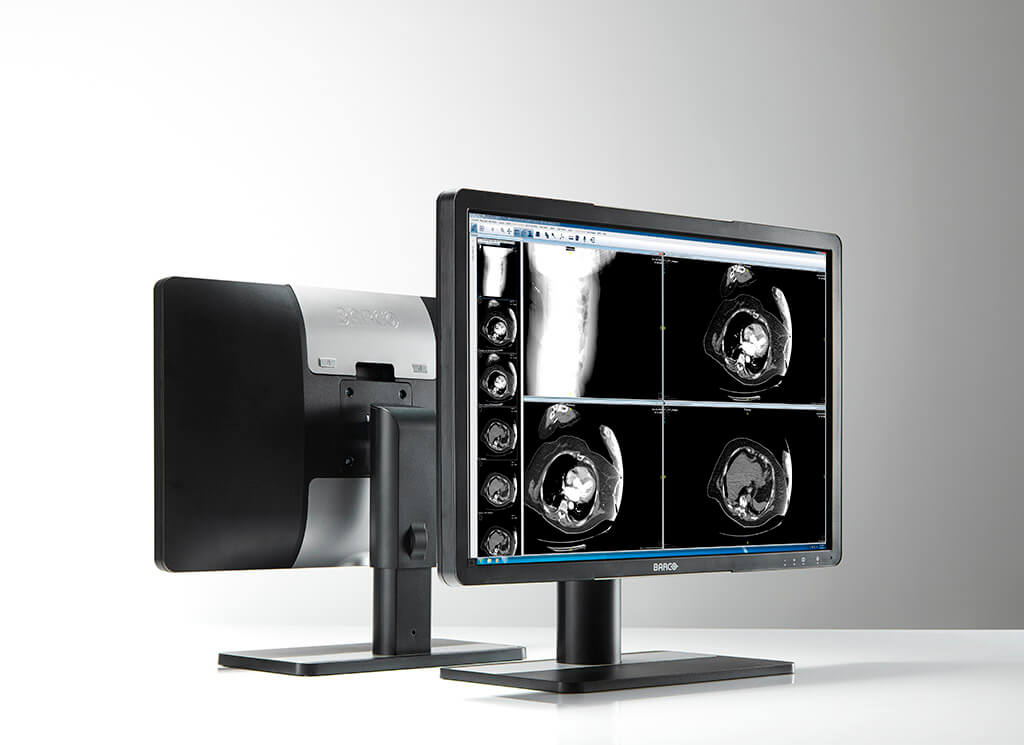

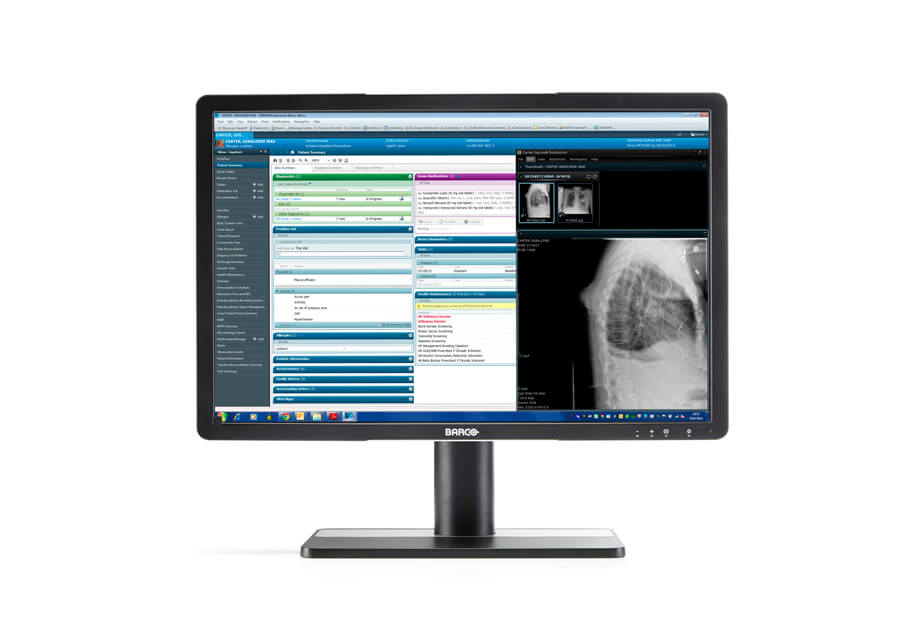

This 24” Eonis® display has been built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.

High image quality

The high-quality Eonis display presents sharp, bright images with high contrast. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Centralized quality assurance

The display comes complete with Barco’s cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Smart design, fit for purpose

Barco’s Eonis display features an integrated cable management system, making it safe to use in a clinical environment. The multiple mounting options and connections further add to the smart design.

Základní informace varianta WP

  • 24" display for reviewing clinical images
  • With front sensor for consistent images
  • With remote QA management tools
  • Fully sealed, fully cleanable

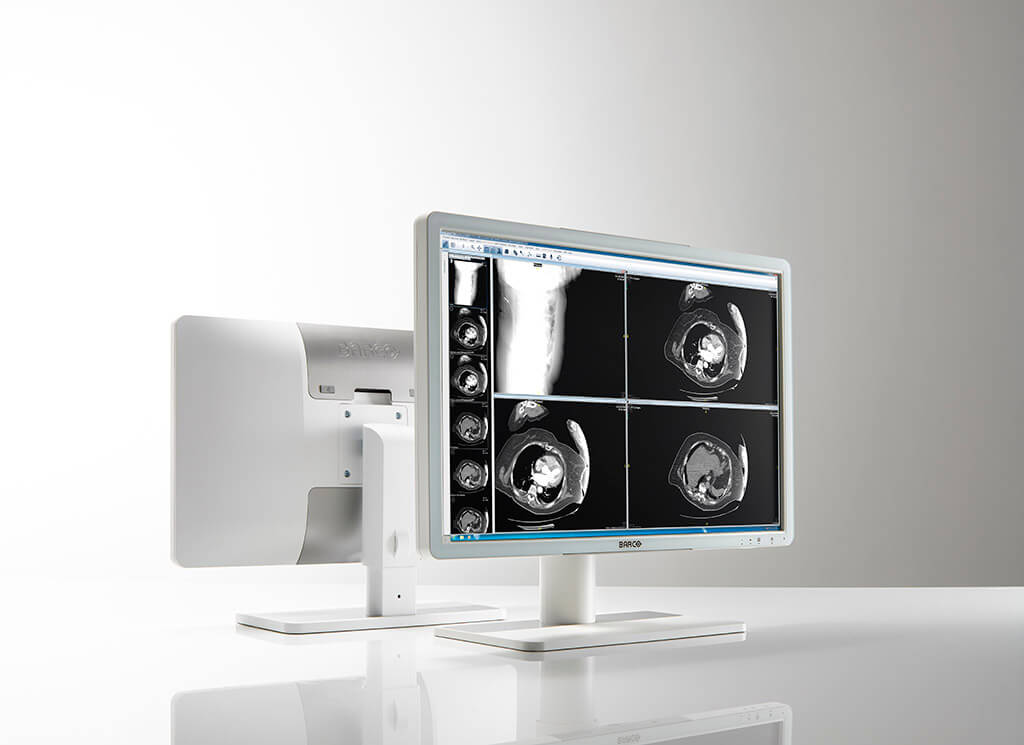

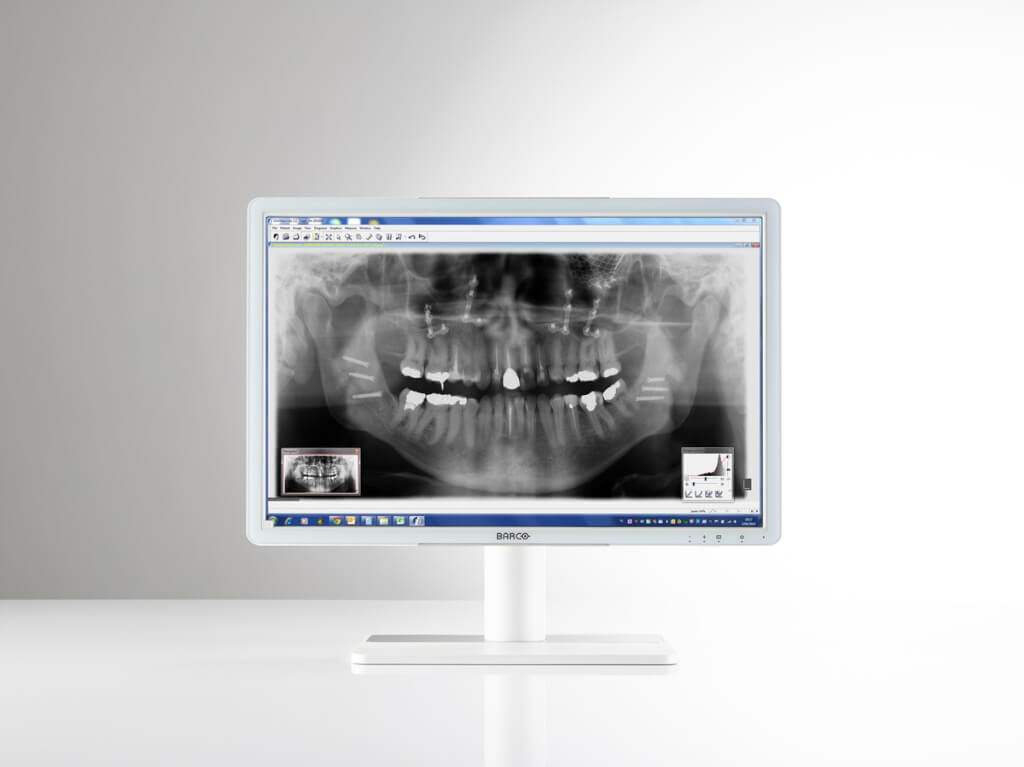

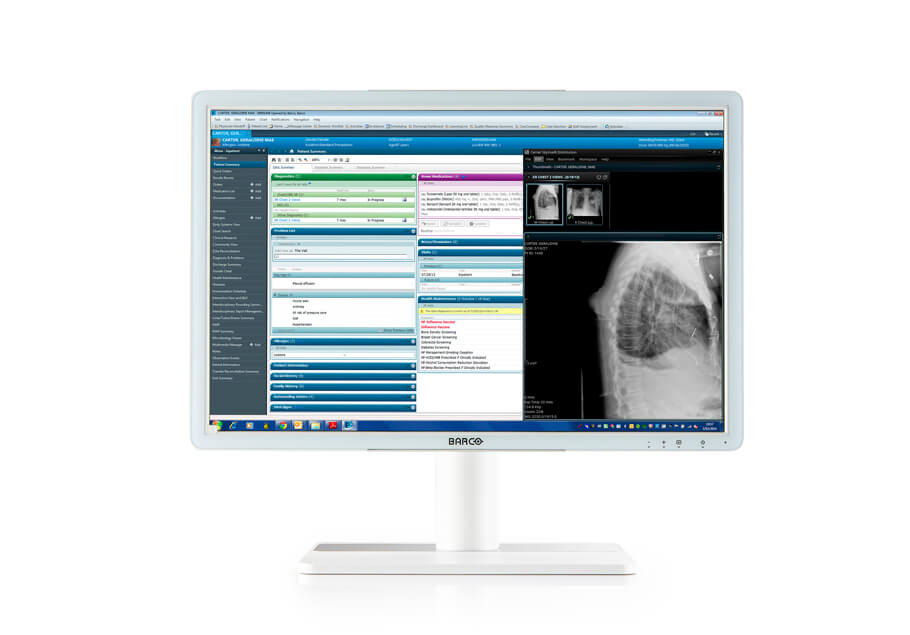

This 24” Eonis® display has been built with healthcare specialists in mind. It combines consistent image quality and an attractive, versatile design with networked quality assurance. The white version display features a front glass panel and is fully sealed, making it exceptionally cleanable, even with 70% alcohol cleaning agents.

Fully cleanable design

Barco’s Eonis features toughened glass and covered cables, making the display safe to use in a clinical environment. In places where infection control is a major concern, the white version is the best choice. The display has a protective front glass panel and is rated IP-32 front and back, making it exceptionally cleanable to prevent contamination. The multiple mounting options and connections further add to the smart design.

Consistent image quality

Barco's Eonis display has a unique front consistency sensor to automatically align the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Centralized quality assurance

The Eonis display comes complete with Barco’s cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Specifikace

  MDRC-2224, Option BL MDRC-2224, Option WP
Screen technology TFT Color LCD IPS
Active screen size (diagonal) 611.3 mm (24.1”)
  518.4 mm x 324.0 mm (20.41” x 12.76”) (HxV) 518.4 mm x 324.0 mm (20.41” x 12.76”) (HxV)
Backlight LED
Aspect ratio 16:10
Resolution 2MP (1920 x 1200)
Pixel pitch 0.270 mm x 0.270 mm
Color imaging Yes
Gray imaging Yes
Color support 10 bit; 16.7 million colors
Viewing angle 178° (IPS)
Ambient Light Compensation (ALC) Yes, preset values in OSD
Front sensor Yes
Maximum luminance 300 cd/m² typical
DICOM calibrated luminance 180 cd/m² (default out-of-the-box setting)
Contrast ratio 1000:1 typical
Response time (Tr + Tf) 14 ms typical
Housing color Black + Silver White + Silver
Video input signals VGA, DisplayPort, HDMI
USB ports 1 upstream, 2 downstream
USB standard 2.0
Power requirements (nominal) 100-240 V
Power consumption (nominal) 40 W (less than 1.0 W in stand-by)
Power save mode Yes
Power management DPMS
Dot clock 165 MHz
OSD languages English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean
Dimensions with stand (W x H x D) 560.4 x 533 x 164.45 mm 560.4 x 533 x 166.35 mm
Dimensions w/o stand (W x H x D) 560.4 x 366 x 59.82 mm 560.4 x 366 x 61.72 mm
Dimensions packaged (W x H x D) 481 x 273 x 761 mm 481 x 273 x 761 mm
Net weight with stand 8.58 kg 9.7 kg
Net weight w/o stand 5.2 kg 6.37 kg
Net weight packaged with stand 12.58 kg 13.7 kg
Height adjustment range 100 mm +/- 5.0 mm
Tilt -5° / +20°
Swivel -45° / +45°
Pivot 90°
Mounting standard VESA (100 mm)
Screen protection N/A Protective, non-reflective glass cover
Certifications CE (MDD 93/42/EEC class I product), CE-2014/30/EU, IEC 60601-1 (ED.3), IEC 60601-1 (ED.3);am1, ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:12), CAN/CSA-C22.2 No. 60601-1 (2014), EN 60601-1-2:2015, EN 60601-1:2006/A11:2011/A1:2013/A12:2014, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS, BSMI
Supplied accessories User Guide
  Cable routing strap
  Video cables (1 x DP, 1 x HDMI)
  Main cables (depending on the region of operation)
  USB 2.0 cable
  This adapter(s) is a forming part of the medical device.(Manufacturer: BridgePower Corp.; model:BPM060S12F03; Input:100-240 V AC, 50-60 Hz, 1.5 A; Output: +12V DC ( ), 5.0 A)
QA software QAWeb & QAWeb Private Practice
Warranty 3 years
