Eonis 22" MDRC-2222
22" clinical display for hospital-wide viewing of clinical data and images
Základní informace
- 22" display for reviewing clinical images
- With front sensor for consistent images
- With remote QA management tools
- Touchscreen (Option TS)
- Fully cleanable (Option WP)

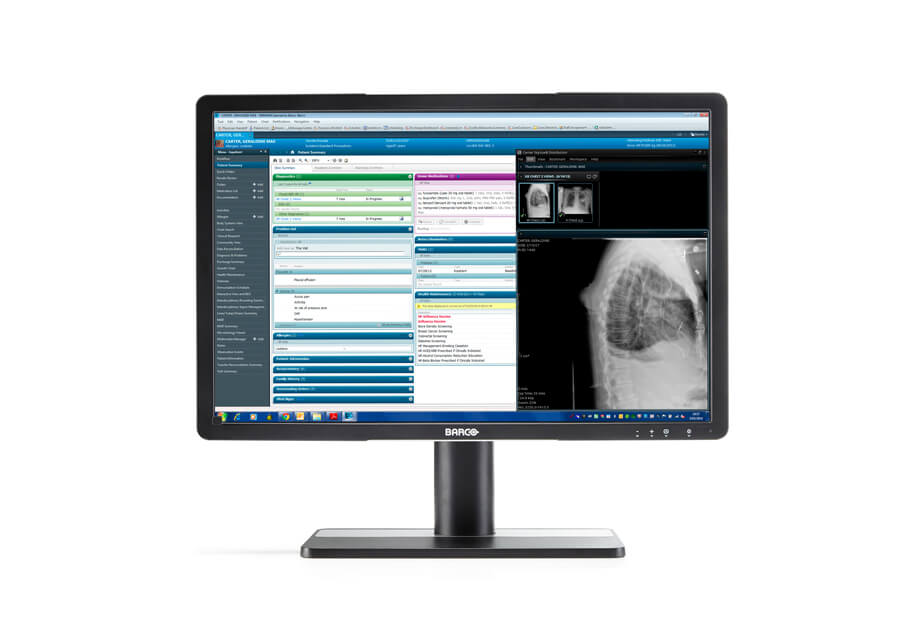

Eonis® is a 22" display built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.
Touchscreen option - featuring PCAP multi-touch 10 points technology - makes it ideal for viewing and controlling modality images, EMR, patient data, …

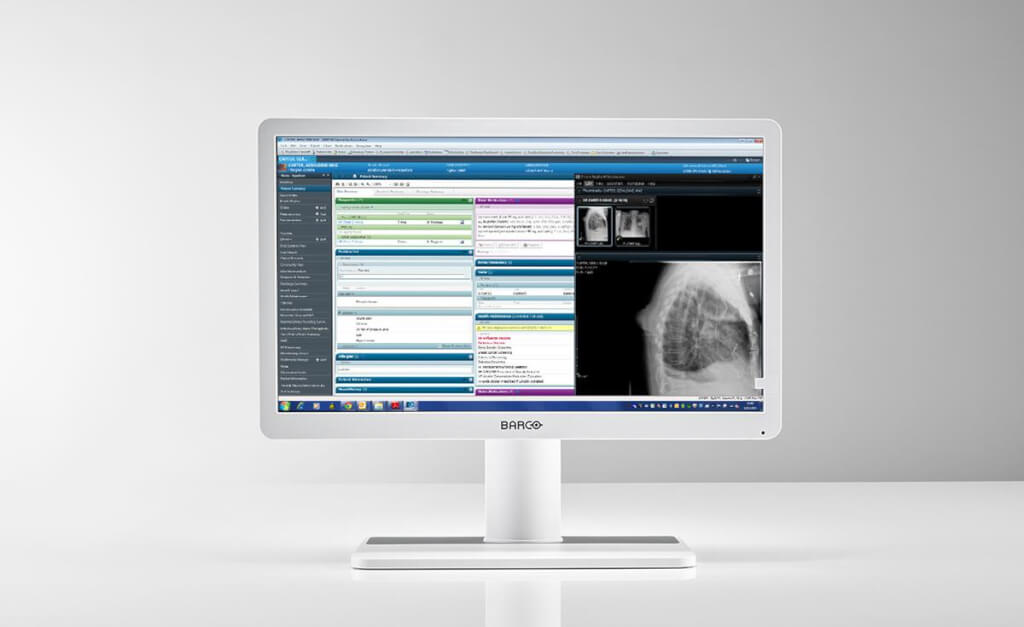

Fully cleanable - white version features a front glass panel, making it exceptionally cleanable, even with 70% alcohol cleaning agents.
High image quality
Eonis presents sharp, bright images. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Centralized quality assurance
Eonis displays come with Barco’s cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Smart design, fit for purpose
Barco’s Eonis display features multiple mounting options and connections. The user-friendly height, tilt and pivot adjustments of the base allow the monitor to be positioned for maximum comfort to help ease the physical strains of a long work day.
Specifikace
| MDRC-2222 Option BL | MDRC-2222 Option TS | MDRC-2222 Option WP | |
|
Screen technology
|
LCD
|
LCD
|
LCD
|
|
Active screen size (diagonal)
|
546 mm (21.5")
|
546 mm (21.5")
|
546 mm (21.5")
|
|
Active screen size (H x V)
|
476 x 268 mm (18.7 x 10.5")
|
476 x 268 mm (18.7 x 10.5")
|
476 x 268 mm (18.7 x 10.5")
|
|
Aspect ratio (H:V)
|
16:09
|
16:09
|
16:09
|
|
Resolution
|
2MP (1920 x 1080 pixels)
|
2MP (1920 x 1080 pixels)
|
2MP (1920 x 1080 pixels)
|
|
Pixel pitch
|
0.248 mm
|
0.248 mm
|
0.248 mm
|
|
Color imaging
|
Yes
|
Yes
|
Yes
|
|
Gray imaging
|
Yes
|
Yes
|
Yes
|
|
Bit depth
|
30 bit
|
30 bit
|
30 bit
|
|
Viewing angle (H, V)
|
178°
|
178°
|
178°
|
|
Ambient light presets
|
Yes, reading room selection
|
Yes, reading room selection
|
Yes, reading room selection
|
|
Front sensor
|
Yes, Front Consistency Sensor
|
Yes, Front Consistency Sensor
|
Yes, Front Consistency Sensor
|
|
Maximum luminance (panel typical)
|
300 cd/m²
|
300 cd/m²
|
300 cd/m²
|
|
DICOM calibrated luminance
|
180 cd/m²
|
180 cd/m²
|
180 cd/m²
|
|
Contrast ratio (panel typical)
|
1000:01:00
|
1000:01:00
|
1000:01:00
|
|
Response time ((Tr + Tf)/2) (typical)
|
7.5 ms
|
7.5 ms
|
7.5 ms
|
|
Housing color
|
RAL 9004
|
RAL 9004
|
RAL 9003
|
|
Video input signals
|
1x DVI-I
1x DisplayPort |
1x DVI-I
1x DisplayPort |
1x DVI-I
1x DisplayPort |
|
USB ports
|
1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream |
1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream |
1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream |
|
Power rating
|
100-240 Vac, 50-60 Hz, 0.6-0.4 A
|
100-240 Vac, 50-60 Hz, 0.6-0.4 A
|
100-240 Vac, 50-60 Hz, 0.6-0.4 A
|
|
Power consumption
|
20 W (nominal)
< 0.5 W (hibernate) < 0.5 W (standby) |
20 W (nominal)
< 0.5 W (hibernate) < 0.5 W (standby) |
20 W (nominal)
< 0.5 W (hibernate) < 0.5 W (standby) |
|
Dimensions with stand (W x H x D)
|
Portrait: 337 x 525~602 x 201 mm
Landscape: 514 x 388~498 x 201 mm |
Portrait: 337 x 525~602 x 201 mm
Landscape: 514 x 388~498 x 201 mm |
Portrait: 337 x 525~602 x 201 mm
Landscape: 514 x 388~498 x 201 mm |
|
Dimensions w/o stand (W x H x D)
|
Portrait: 315 x 514 x 67 mm
Landscape: 514 x 315 x 67 mm |
Portrait: 315 x 514 x 67 mm
Landscape: 514 x 315 x 67 mm |
Portrait: 315 x 514 x 67 mm
Landscape: 514 x 315 x 67 mm |
|
Dimensions packaged (W x H x D)
|
700 x 240 x 460 mm
|
700 x 240 x 460 mm
|
700 x 240 x 460 mm
|
|
Net weight with stand
|
5.6 kg
|
6.5 kg
|
6.4 kg
|
|
Net weight w/o stand
|
3.3 kg
|
4.2 kg
|
4.1 kg
|
|
Net weight packaged
|
7.0 kg (without optional accessories)
|
7.9 kg (without optional accessories)
|
7.8 kg (without optional accessories)
|
|
Tilt
|
-5° to +22°
|
-5° to +22°
|
-5° to +22°
|
|
Pivot
|
90°
|
90°
|
90°
|
|
Height adjustment range
|
110 mm
|
110 mm
|
110 mm
|
|
Mounting standard
|
VESA (100 mm)
|
VESA (100 mm)
|
VESA (100 mm)
|
|
Screen protection
|
N/A
|
N/A
|
Protective, anti-glare glass cover
|
|
Recommended modalities
|
All digital images, except digital mammography
|
All digital images, except digital mammography
|
All digital images, except digital mammography
|
|
Certifications
|
FDA Class I, 510(k) exempt CE (Medical Device Class I) CCC (China), Inmetro (Brazil), KC (Korea), BIS (India) Safety specific: IEC 60950-1:2005 + A1:2009 + A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:12 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-003 Level B VCCI Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
FDA Class I, 510(k) exempt CE (Medical Device Class I) CCC (China), Inmetro (Brazil), KC (Korea), BIS (India) Safety specific: IEC 60950-1:2005 + A1:2009 + A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:12 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-003 Level B VCCI Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
FDA Class I, 510(k) exempt CE (Medical Device Class I) CCC (China), Inmetro (Brazil), KC (Korea), BIS (India) Safety specific: IEC 60950-1:2005 + A1:2009 + A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:12 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-003 Level B VCCI Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
|
Supplied accessories
|
1x DisplayPort video cable 1x USB cable 1x printed User Guide (English) 1x System disc, containing QAWeb software and translations of the User Guide Mains cables |
1x DisplayPort video cable 1x USB cable 1x printed User Guide (English) 1x System disc, containing QAWeb software and translations of the User Guide Mains cables |
1x DisplayPort video cable 1x USB cable 1x printed User Guide (English) 1x System disc, containing QAWeb software and translations of the User Guide Mains cables |
|
QA software
|
MediCal QAWeb
|
MediCal QAWeb
|
MediCal QAWeb
|
|
Operating temperature
|
0 °C to 40 °C
|
0 °C to 40 °C
|
0 °C to 40 °C
|
|
Storage temperature
|
-20 °C to 60 °C
|
-20 °C to 60 °C
|
-20 °C to 60 °C
|
|
Operating humidity
|
8% to 85% (non-condensing)
|
8% to 85% (non-condensing)
|
8% to 85% (non-condensing)
|
|
Storage humidity
|
5% to 95% (non-condensing)
|
5% to 95% (non-condensing)
|
5% to 95% (non-condensing)
|
|
Operating pressure
|
70 kPa
|
70 kPa
|
70 kPa
|
|
Storage pressure
|
50 to 106 kPa
|
50 to 106 kPa
|
50 to 106 kPa
|
