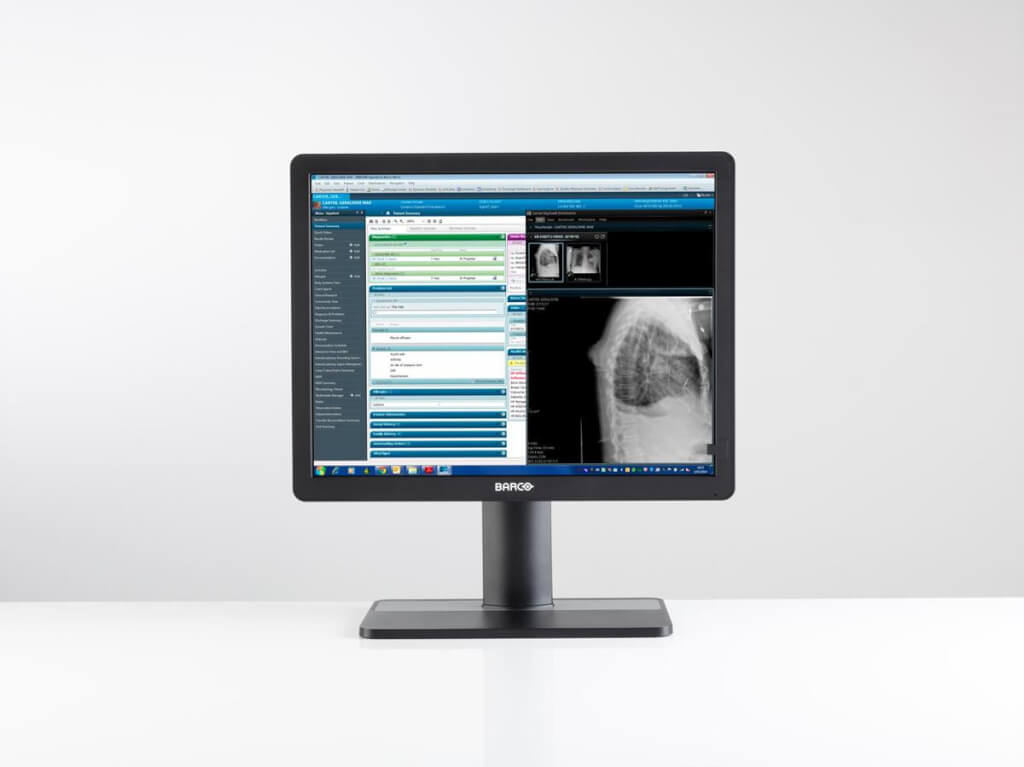

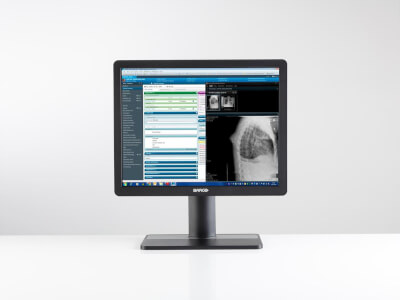

Eonis 21" MDRC-2321
21" clinical display for hospital-wide viewing of clinical data and images
Základní informace
This 21” Eonis® display has been built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.
High image quality
The high-quality Eonis display presents sharp, bright images with high contrast and a wide viewing angle. Eonis uses the latest in advancements in LED backlight technology, ensuring a higher brightness that can be maintained over a longer period of time.
The display’s unique front consistency sensor ensures fast power-up and continuous luminance stability. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Centralized quality assurance
Eonis comes complete with Barco’s cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Smart design, fit for purpose
Barco’s Eonis display is safe to use in a clinical environment. The multiple mounting options and connections add to the smart design.
The display is as high in brightness as it is low in power consumption. The lightweight form factor and packaging help reduce the environmental footprint of this product.
Specifikace
| Screen technology | LCD |
|---|---|
| Active screen size (diagonal) | 541.0 mm (21.3") |
| Active screen size (H x V) | 432.0 mm x 324.0 mm (17.0 x 12.8") |
| Aspect ratio (H:V) | 4:3 |
| Resolution | 2MP (1600 x 1200 pixels) |
| Pixel pitch | 0.270 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Ambient light presets | Yes, reading room selection |
| Front sensor | Yes, Front Consistency Sensor |
| Maximum luminance | Standard brightness versions (MDRC-2321 (option Sxxx)): 500 cd/m² High brightness versions (MDRC-2321 (option Hxxx)): 1000 cd/m² |
| DICOM calibrated luminance | Standard brightness versions (MDRC-2321 (option Sxxx)): 250 cd/m² High brightness versions (MDRC-2321 (option Hxxx)): 400 cd/m² |
| Contrast ratio (panel typical) | 1800:1 |
| Response time ((Tr + Tf)/2) (typical) | 8 ms |
| Housing color | RAL 9004 |
| Video input signals | 1 x DP, 1 x DVI-I |
| USB ports | 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
| Power rating | 100-240 VAC, 50/60 Hz, 0.9-0.5 A |
| Power consumption | Standard brightness versions (MDRC-2321 option Sxxx): 20 W High brightness versions (MDRC-2321 option Hxxx): 25 W < 0.5 W (hibernate) < 0.5 W (standby) |
| Dimensions with stand (W x H x D) | Portrait: 374.5 x 506.6~583.3 x 201.3 mm Landscape: 477.0 x 411.5~529.6 x 201.3 mm |
| Dimensions w/o stand (W x H x D) | Portrait: 477.0 x 374.5 x 70.4 mm Landscape: 374.5 x 477.0 x 70.4 mm |
| Dimensions packaged (W x H x D) | 660 x 513 x 230 mm |
| Net weight with stand | MDRC-2321 (option SNIB and HNIB): 5.8 kg MDRC-2321 (option STIB and HTIB): 6.8 kg |
| Net weight w/o stand | MDRC-2321 (option SNIB and HNIB): 3.6 kg MDRC-2321 (option STIB and HTIB): 4.6 kg |
| Net weight packaged | MDRC-2321 (option SNIB and HNIB): 8.4 kg (without optional accessories) MDRC-2321 (option STIB and HTIB): 9.4 kg (without optional accessories) |
| Tilt | -5° to +22° |
| Pivot | 0° to 90° |
| Height adjustment range | 110 mm |
| Mounting standard | VESA (100 mm) |
| Screen protection | MDRC-2321 (option STIB and HTIB): PCAP touchscreen MDRC-2321 (option SNIB and HNIB): None |
| Recommended modalities | All digital images, except digital mammography. |
| Certifications | FDA class I, 510(k) exempt CE (Medical Device Class I) CCC (China), KC (Korea), BIS (India) Safety specific: IEC 60950-1:2005 + A1:2009 +A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:12 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-003 Level B VCCI (Japan) Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
| Supplied accessories | 1x DisplayPort video cable 1x USB cable 1x printed User Guide (English) 1x System disc, containing QAWeb software and translations of the User Guide Mains cables |
| Optional accessories | None |
| QA software | MediCal QAWeb |
| Warranty | 3 years |
| Operating temperature | 0 °C to 40 °C (15 °C to 35 °C within specs) |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 8% to 80% (non-condensing) |
| Storage humidity | 5% to 90% (non-condensing) |
| Operating pressure | 70 kPa minimum |
| Storage pressure | 50 to 106 kPa |
