EN235A

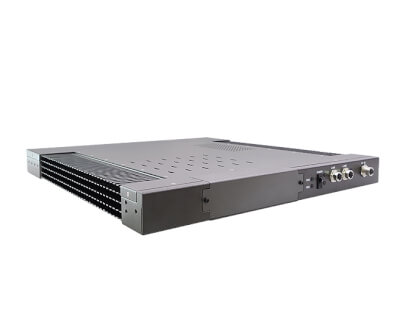

1U Rackmount Fanless System with 3rd Gen. Intel® Core™ Processor, EN50155 Certified, 33.6V to 62.4V DC-in, Smart UPS, Extended Temp. -40~70°C
Základní informace
- Intel® Ivy Bridge Processor Core i7
- 2 x DDR3 SO-DIMM up to 16 GB
- 4 x 2.5" SATA HDD/SSD (2 x Easy Swap 2.5" HDD cage)
- Dual GbE LAN ports (M12 connector)
- 4 x USB 3.0, 1 x VGA, 1 x HDMI, 1 x DVI-I
- 9V~24V DC-in
- Extended temperature -40 to 70°C
- EN50155 compliant
EN 235A is 19" 1U Rack-mount Fanless rugged System, suitable for application such as railway, high-end automation etc. Powered by Intel® Ivy Bridge i7-3610QE CPU and QM77 chipset, quad cores CPU can have high performance 2.3GHz- 3.3 GHz. The fanless design ensures silent operation and eliminates the possibility of gathering dust and external debris inflow which may cause system failure over time. EN235A integrates wide range DC input from 33.6V to 62.4V with extended temperature operation up to +70°C without CPU throttling. Moreover, being EN50155-certified, EN235A possesses high performance under various power supply conditions, especially in rolling stock equipment and railway application.
Specifikace
| CPU | Intel® 22nm Ivy Bridge Processor (Mobile) socket(rPGA988) Intel® Core™ i7-3610QE (4C x 3.3 GHZ), 6M L2 cache (45W) Intel® Core™ i5-3610ME (2C x 2.7 GHZ), 3M L2 cache (35W) Intel® Core™ i3-3120ME (2C x 2.4 GHZ), 3M L2 cache (35W) |
| Chipset | Intel® QM77 Express Chipset (Intel® BD82QM77 PCH) |
| Power System | EN50155 standard 48V solution (33.V to 62.4V DC in) OpenUPS Uninterruptible Power Supply Board CYCLON Battery Set supply 10V 2.5A for 1 hour |
| Memory type | 2 x 204-pin SO-DIMM DDR3 1333/1600 MHz up to 16GB |
| Expansion Slot | 1 x Mini PCIe for GEN2 |
| Storage Device | 2 x 2.5" SATA HDD/SSD (Easy Swap 2.5" HDD cage) 2 x 2.5" SATA HDD/SSD (Fixed) |
| Power Button | 1 |
| LED Indicator | 1 x Power LED 1 x HDD LED 4 x LAN LED |
| LAN | 2 x M12 Connectors Extended from Front Window |
| Power Input | 1 x M12 Power Connector |
| VGA | 1 x 15-pin VGA connector (female) |
| DVI-D | 1 x 25-pin DVI-D connector (female) |
| HDMI | 1 x 19-pin HDMI A Type connector (female) |
| Ethernet | Intel® 82579LM & 82574IT GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports) |
| Audio | Mic-in, Line-out |
| COM | 1 x RS232/422/485 |
| USB | 4 x USB 3.0 |
| 2.5" HDD/SSD Tray | 2 |
| GND Screw | 1 |
| Windows | Windows 7 32 bit, Windows 7 64 bit |
| Linux | Open SUSE 12.2、Ubuntu 12.04 |
| Power Requirement | 33.6V to 62.4V DC-in |
| Dimension | 440 x 44 x 463 mm (17.32" x 1.73" x 18.23") |
| Weight | 9.05 kg (19.94 lbs) |
| Operating Temp. | -40 to 70°C (ambient with air flow) |
| Storage Temp. | -40 to 85°C |
| Relative Humidity | 10% to 90%, non-condensing |
| EMC | CE, FCC Class A |
| Railway | EN50155 Compliant
|
