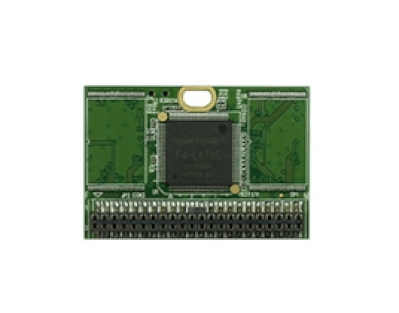

EDC 1SE2 Horizontal

The Innodisk Embedded DISK CARD 1SE2 (EDC 1SE2) products provide high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Write protection security
  • Enhanced power cycling management

The Innodisk Embedded DISK CARD 1SE2 (EDC 1SE2) products provide high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. Innodisk Embedded DISK CARD 1SE2 (EDC 1SE2) is embedded solid-state data storage systems for industrial work place. Embedded DISK CARD 1SE2 (EDC 1SE2) features an extremely light weight, reliable, low-profile form factor.

Embedded DISK CARD 1SE2 (EDC 1SE2) supports advanced PIO (0-6), Multi Word DMA (0-4), Ultra DMA (0-6) transfer modes, multi-sector transfers, and LBA addressing.

Specifikace

Model Name EDC 1SE2 Horizontal
Interface PATA
Flash Type SLC
Type Horizontal
Capacity 8GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 110/75
Max. Power Consumption 0.76W(3.3V x 230mA)
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 48 x 32.6 x 7.3
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C

Ke stažení
