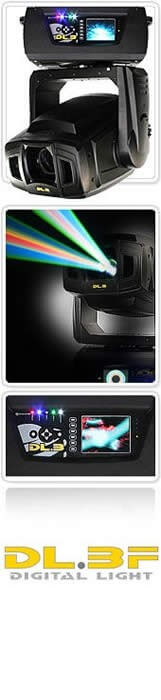

DL 3F Digital Light

The DL.3F Digital Light integrates a media server loaded with a wealth of digital content with a high output 3-chip light engine.


Základní informace

DL.3F mounts like any other intelligent moving luminaire and controls just as easily with plug-and-play operation using standard DMX cabling and protocols. It is the perfect solution for permanant installations and fixed venues.


Collage Generator™ This patent-pending feature enables multiple DL.2, DL.3 and DL.3F units to create seamless vertical, horizontal or central panoramic media projections controlled from a lighting console. Using multiple digital lighting fixtures allow you to increase effective screen luminance. High End Systems not only started the digital revolution, it also offers the widest digital lighting product mix of any manufacturer, priced and scaled for any budget and solution. The DL.3F retains the full software capabilites of the original DL.3 while offering reduced functions for fixed installations.



  • DL.3 software based on Windows XP and DirectX technology
  • Powerful Content Management and Configuration software can remotely manage multiple DL.3 fixtures
  • Supports importing of custom content including: 3D objects, media files, still images.
  • DMX512 and Art-Net support
  • Remote software upgrade capability
  • Royalty-free stock digital art collection featuring more than 1,400 lighting-optimized files including seven new content providers and three new High End Systems stock content folders

Graphics Engine

  • Simultaneous playback of nine discrete media streams on separate 2D/3D objects
  • 36 object parameters give you graphic controls for each individual media stream including:
    • a choice of multiple play modes and play speeds
    • the ability to define any segment of a video loop including Scrub capability
    • multiple color mixing and visual effects that can be combined any way you choose
    • variable opacity to allow for crossfading or dissolves between media streams
    • full control of image rotation, positioning and scaling on X,Y and Z axes
    • visual modes that let you control brightness and contrast to optimize content
  • 52 global parameters provide graphic controls to the composite image created by up to 9 media streams
    • intensity overlays the opacity control to provide system-wide intensity level
    • overall image color mixing applied to composite media stream image
    • color effects including edge colors allow for combined image color mixing
    • multiple mask selections with edge fading and strobe effects
    • Chroma Key effects to layer any content by keying on any colormix to make transparent
    • edge fading for creating montages
    • keystone correction on output projection
    • digital shutters on output projection
    • viewpoint controls provide ability to change viewing angle/perspective on images
  • Multiple modes for synchronizing all networked DL.3 fixtures

Content Management Application (CMA)

  • Versions available for Windows and Mac operating systems
  • Communicates with Axons, DL.2 and DL.3 fixtures over an Ethernet network
  • Uploads and downloads custom digital content to DL.3 fixtures
  • Configures DL.3 fixtures with remote control of all menu commands


  • 17 motion parameters for mechanical fixture control include:
    • mechanical iris adjustment to full black-out
    • 400-degree pan and 240-degree tilt movement
    • DMX control of projector zoom and focus
    • DMX control of vertical lens shift
  • Full color display and preview monitor/menu functions
  • Powered by an Intel Core2 Duo 2.4 GHz processor with an ATI HD2900 Graphics Processor
  • Gigabit Ethernet for fast content uploading and multiple fixture synchronization
