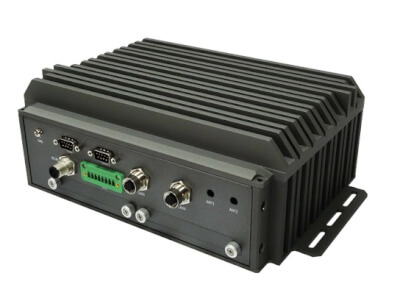

CPT10M
Intel® Core™ i7 Broadwell Processor, 9V to 36V DC-in, Extended Temp. -40 ~ 70°C
Základní informace
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Heavy-duty fully IP54 Rugged aluminum chassis with M12 connectors
- 5th Gen Intel® Broadwell-U processors Onboard
- XR-DIMM DDR3L Up to 16GB
- Multi-Displays by 2 x DisplayPort
- 2 x RJ45 , 2 x M12 Rugged Ethernet connectors
- 1 x Rugged Digital I/O
- 2 x USB 3.0, 2 x USB 2.0, 4 x COM ports (3 x RS232, 1x RS232/422/485)
- 9V~36V DC-in by M12 connector
- Extended Temperature -40 to 70 °C
- 2 optional power for EN50155 compliance
Specifikace
| CPU | Intel® Broadwell-U Processor Intel® Core™ i7-5650U 3.1 GHz (4M Cache, 15W) Intel® Core™ i5-5350U 2.9 GHz (3M Cache, 15W) Intel® Celeron® 3765U 1.9 GHz (2M Cache, 15W) |
| Memory Type | 2 x DDR3L XR-DIMM support up to 16GB |
| Expansion Slot | 1 x mPCIe/mSATA (w/ SIM card) |
| Storage Device | 2 x 2.5" SATA HDD/SSD |
| Power Button | 1 with LED backlight |
| HDD LED | 1 |
| USB | 2 x USB 3.0 2 x USB 2.0 |
| COM | 2 x RS422/485 with 5V selectable |
| Ethernet | 2 x RJ45 GbE LAN |
| DisplayPort | 2 x DisplayPort |
| COM | 1 x RS232/422/485 with 5V/12V selectable 1 x RS232 with 5V/12V selectable |
| DIO | 8-bit DIO |
| Ethernet | 2 x M12 GbE LAN |
| Storage Device | 2 x 2.5" SATA HDD/SSD Tray |
| Antenna | Reserved two antenna holes |
| Power Input | 9V to 36V DC-in (4-pin M12 connector) |
| Supported OS | Windows 7/8/8.1/10 Open SUSE 12.2、Ubuntu 12.04 |
| Power Requirement | 9V to 36V DC-in |
| Dimension | 310 x 200 x 98 mm (12.2" x 7.9" x 3.9") |
| Weight | 4.1 kg (9.03 lbs) |
| Operating Temp. | -40 to 70°C (ambient with air flow) |
| Storage Temp. | -40 to 85°C |
| Relative Humidity | 10% to 90%, non-condensing |
| EMC | CE, FCC |
