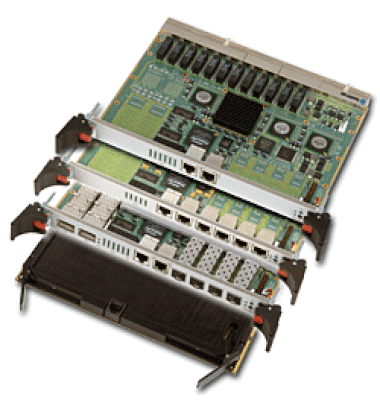

CP6923

Flexi-Switch - State-of-the-art CompactPCI VME PICMG 2.16 VITA 31.1 Switch

The new Kontron CP6923 is a 6U hot-swappable CPCI and VITA 31 switch with 24 ports and two high performance uplinks (10 GbE). The CP6923 provides built-in switching capacity for CompactPCI and VITA 31.1 installations at an unsurpassed price/performance ratio by implementing the latest switching technology. It applies to VoIP installations such as Call Servers, MediaGateways and Trunking Gateways in wireline and wireless networks, as well as VoIP systems in enterprise networks with high demands on performance.


Vlastnosti

Additional	Conduction cooled and rugged versions available
Connection	PICMG 2.16
Dimensions (H x W x D)	6U / 4HP
Ethernet/Bridging Protocols	Include VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP
Function	managed
Operation Temperature	0°C to 55°C (rugged versions up to -40 to +85°C)
Ports	24x GbE or 20x GbE + 4x SFP optional, 2x 10 GbE XFP optional
Power Consumption	max. 35 Watt
Routing Protocols	Include OSPFv2, RIPv2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP
