CPCI/PICMG 2.16 Intel® Core™2 Duo 2.53 GHz (T9400) System/Peripheral CPU 4HP, single slot CPU with passive cooling Scalable processor speed, Intel® Core™2 Duo up to 2.53 GHz Support of latest FSB performance with 1066 MHz Up to 16GB DDR2 667 M



Highest-Performance, PCI Express-based computing blade

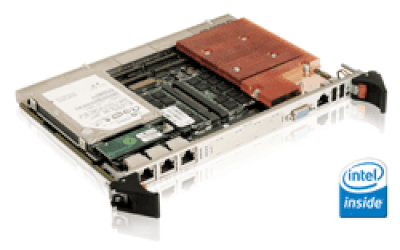

The CompactPCI CPU board available with the Intel® Core™2 Duo processor T9400 meets the highest performance requirements and, in combination with the Intel® 5100 MCH chipset, increases the data throughput to 8.5GB/s.
The PICMG 2.16-compatible CP6016 features an T9400 processor with 6MB L2 cache in latest 45nm technology, supports Enhanced Intel® Virtualization, Dynamic Accelleration Technology and SpeedStep.

Designed for bandwidth-intensive applications, the CP6016 provides hot swap, IPMI (Intelligent Platform Management Interface) and TPM (Trusted Platform Module 1.2) support, and meets the highest standards for the management and security of high-availability applications.
This makes this board exceptionally attractive to multiple markets, including highly sensitive, security-relevant telecom and datacom applications and, thanks to its robust construction, is also ideal for image-processing systems in medical and defense systems, among many other vertical segments.

If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

CPU Intel® Core™2 Duo T9400, 2.53GHz
DRAM up to 16GByte with ECC, DDR2 SO-RDIMM
Chipset Intel® 5100 MCH and ICH9R I/O Controller Hub
4HP Version VGA, COM, 3x Ethernet, 2x USB, LEDs, Reset, PMC/XMC cutout
Additional Watchdog, Hardware Monitor, Trusted Platform Module 1.2
Cache 6 MByte
DRAM speed 667 MHz
Ethernet 5x Gigabit, 3x to front, 2x to rear, PICMG 2.16 compliant
Flash Disk USB NAND Flash Module up to 8GB
Front Side Bus 1066 MHz
Frontpanel VGA (CRT), COM1, 3x Ethernet, 2x USB, LEDs, Reset, PMC/XMC
Graphics ATI ES1000 (64 MByte external video memory)
IPMI Yes (IPMI V1.5)
PMC 1x slot XMC PCIe x8 or 1x slot PMC 64-bit/133 MHz
Power Consumption 2.53GHz max. 64W; typ. 55W; 2.0GHz max 55W; typ. 45W
Rear I/O Yes, VGA, 4xUSB, HDAudio, 2xCOM, PS/2, 2xEth, 4xSATA, 2xFan, Battery In
SATA 6x SATA 2.0, RAID 0/1/5/10 capabilities; 1 onboard SATA disk option
System peripheral System / Stand alone
Temperature/Humidity 0-60°C, 93% rel. humidity
USB 7x USB 2.0 max.
