CompactPCI 2.16 8HP Dual Intel® Quad-Core Processor Board Dual Intel® Quad-Core Xeon®; Dual Intel® Dual-Core Xeon® Intel® 5100 MCH chipset & Intel® I/O Controller Hub 9R 2.13GHz core frequency (45nm), 1066MHz FSB; 12 MB (2x6 MB) L2 cache 32GB DDR2 m



Dual Intel® Quad-Core LV Xeon® 6U CompactPCI Processor Board

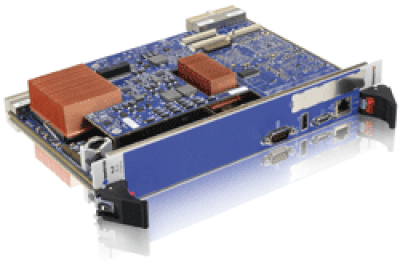

The CP6014 CompactPCI processor board featuring two Quad-Core Intel®
Xeon® LV L5408 Processors, complemented by the cost-optimized Intel®
5100 MCH chipset & Intel® I/O Controller Hub 9R. The significance of
eight processor cores on one board now opens up market opportunities
that never before existed and, likewise, gives new and existing Kontron
CompactPCI customers tremendous system upgrade opportunities.

The Kontron CP6014 CPCI processor board targets storage, wireless
infrastructure, security, voice, and the medical market segments. Taken in
conjunction with the advantages of Virtualization software, the CP6014
can now address new data-intensive applications such as video recognition
and medical imaging.

The Intel® Quad-Core Xeon LV L5408 Processor interfaces to the baseboard via the 771 land socket and is based on 45nm technology, which reduces power consumption, increases switching speed, and significantly increases transistor density over the previous 65nm technology. The L5408 has a power envelope of 40W and supports a core frequency of 2.13GHz, a Front Side Bus of 1066MHz, and an on-die L2 cache of a 12 MB (2x6 MB).

If you need more information about CPCI systems or PMC/XMC modules, please visit systems or PMC/XMC

CPU 2x Intel® Quad-Core XEON or 2x Intel® Dual-Core XEON up to 2.13GHz
DRAM up to 32GByte DDR2 RAM
Chipset Intel® 5100 MCH chipset & Intel® I/O Controller Hub 9R
8HP Version VGA, USB2.0, COM1, GigaBit Ethernet, LEDs, Reset, PMC/XMC cutout
Additional Watchdog
Cache 2x 6 MByte
DRAM speed 667 MHz
Ethernet 1 front GigaBit, 2 PICMG2.16 Rear GbE Channels
Flash Disk Solid State Drive Module (SSD) available in different sizes
Front Side Bus 1066 MHz
Graphics AMD-M72-C128 PCIe
IPMI Yes (IPMI V1.5)
PMC one 64bit / 66MHz 5V/3.3V slot or one XMC PCIe x4 slot
Power Consumption Dual Core 126W; Quad Core 156W
SATA up to 2 SATA ports on Rear I/O;
Temperature/Humidity n/a
USB 3x USB 2.0
