CPCI/PICMG 2.16 Intel® Core™2 Duo up to 2.16 GHz (T7400) System/Peripheral CPU 4HP, single slot CPU with passive cooling Scalable processor speed, Intel Core2 Duo up to 2.16 GHz Support of latest FSB performance with 667 MHz Up to 4GB DDR2 400



Highest-Performance, PCI Express-based computing blade

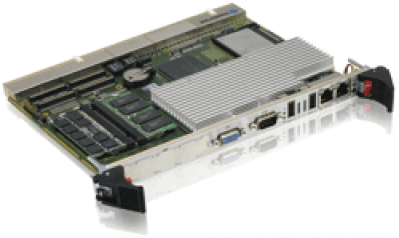

The CompactPCI CPU board available with the Intel® Core2 Duo processor meets the highest performance standards and, in combination with the E7520 chipset, manages data throughput with server quality. The PICMG 2.16-compatible CP601264 features an L2 cache that is twice as large (4 MB), a much improved internal architecture, and 64-bit Intel technology for increased performance over the Core Duo option.

Designed for bandwidth-intensive applications, the CP601264 provides hot swap and IPMI (Intelligent Platform Management Interface) support, and meets the highest standards for the management of high-availability applications. This makes this board exceptionally attractive to multiple markets, including – highly sensitive, security-relevant telecom and datacom application solutions and, thanks to its robust construction, is also ideal for image-processing systems in medical technology (tomographs) systems, among many other vertical segments.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

CPU Intel® Core™2 Duo up to 2.16GHz
DRAM up to 4 GByte with ECC, DDR2
Chipset Intel® E7520 and 6300ESB I/O Controller Hub
4HP Version VGA, COM, 2x Ethernet, 2x USB, LEDs, Reset, PMC/XMC cutout
Additional Watchdog, HW monitor
Cache 4 MByte
DRAM speed 400 MHz
Ethernet 4x Gigabit, 2x to front, 2x to rear, PICMG 2.16 compliant
Flash Disk CompactFlash socket
Front Side Bus 667 MHz
Frontpanel VGA (CRT), COM1, 2x Ethernet, 1x USB, LEDs, Reset, PMC/XMC
Graphics ATI ES1000 (64 MByte external video memory)
IPMI Yes (IPMI V1.5)
PMC 1x slot XMC PCIe x8 or 1x slot PMC 64-bit/66 MHz
Power Consumption 1.5GHz max. 39W; 2.16GHz max 56W
Rear I/O Yes
SATA Up to 2 SATA ports, 1 onboard SATA disk option
System peripheral system/stand alone
Temperature/Humidity 0-60°C, 93% rel. humidity
USB 4x USB 2.0
