CPCI/PICMG 2.16 Intel® Core™ Duo up to 2.0 GHz (T2500) System/Peripheral CPU 4HP, single slot CPU with passive cooling Scalable processor speed, Intel Core Duo up to 2.0 GHz Support of latest FSB performance with 667 MHz Up to 4GB DDR2 400 MHz SDRAM



High-Performance, PCI Express-based computing blade

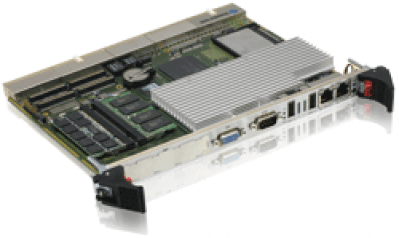

Kontron´s CP6012, a 6U CompactPCI CPU board with Intel® Core Duo processor T2500 (2 GHz), meets the highest performance demands. With its E7520 and 6300ESB chipset, it handles data throughput like a server. Compared to Intel® Pentium® M, dual-core technology allows approximately twice the performance at similar power consumption. The PICMG 2.16-compliant Kontron CP6012 is designed for bandwidth-intensive applications and, thanks to hot-swap support and IPMI (PICMG 2.9-compliant Intelligent Platform Management Interface) meets the highest demands for the management of high-availability applications. The CP6012 offers a high degree of integration and the latest interface technologies such as PCI Express, up to 4 GB/400 MHz DDR2 SODIMM RAM (6.4 GB/sec throughput) and 2x fast Serial-ATA interfaces including hard drive on board as well as a CompactFlash slot. Four Gigabit Ethernet interfaces via PCI Express (two to the backplane / two front-side), max. 4x USB 2.0, 1xCOM, VGA, and rear I/O support round out the feature set.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

CPU Intel® Core™ Duo up to 2.00GHz
DRAM up to 4 GByte with ECC, DDR2
Chipset Intel® E7520 and 6300ESB I/O Controller Hub
4HP Version VGA, COM, 2x Ethernet, 2x USB, LEDs, Reset, PMC/XMC cutout
Additional Watchdog, HW monitor
Cache 2 MByte
DRAM speed 400 MHz
Ethernet 4x Gigabit, 2x to front, 2x to rear, PICMG 2.16 compliant
Flash Disk CompactFlash socket
Front Side Bus 667 MHz
Frontpanel VGA (CRT), COM1, 2x Ethernet, 1x USB, LEDs, Reset, PMC/XMC
Graphics ATI ES1000 (64 MByte external video memory)
IPMI Yes (IPMI V1.5)
PMC 1x slot XMC PCIe x8 or 1x slot PMC 64-bit/66 MHz
Power Consumption 1.66GHz max. 34W; 2.00GHz max 52W
Rear I/O Yes
SATA Up to 2 SATA ports, 1 onboard SATA disk option
System peripheral system/stand alone
Temperature/Humidity 0-60°C, 93% rel. humidity
USB 4x USB 2.0
