CPCI/PICMG 2.16 Celeron® M440; 1.86GHz CPCI/PICMG 2.16 cost optimized value oriented design Celeron® M440 1.86 GHz Single slot 4HP CPU with passive cooling Scalable memory size up to 4GB SO-DIMM 2xGbE on FP and 2xGbE PICMG 2.16 VGA, 2x USB, PMC o

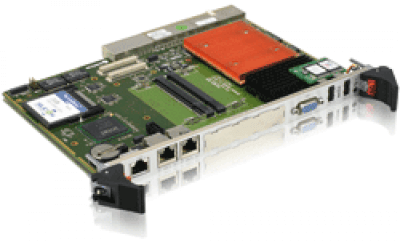

The CP6001-V is a cost/performance optimized solution designed for demanding, cost-sensitive applications such as those found in automation technology.
The Value Line CompactPCI board can be equipped with an Intel® Celeron® M440 (1.86 GHz) processor. The hot-swap-capable CPU board is equipped with a variety of interfaces, including three USB 2.0 ports, two front panel GbE and two GbE PICMG 2.16 ports.
In addition, there is a serial interfaces and the usual connections for graphics (VGA CRT with a resolution of 2048 x 1536 pixels) as well as a PMC-slot, a CompactFlash socket, an USB Flash socket, and the site for an onboard 2.5" HDD.
If you need more information about sytems or PMC modules, please follow the links systems or PMC/XMC
|CPU||Intel® Celeron® M440, 1.86GHz|
|DRAM||up to 4 GB SO-DIMM DDR2|
|Chipset||Intel® 945GM and ICH7-R I/O Controller Hub|
|4HP Version||2x Gb Ethernet, 2x USB 2.0, LEDs, CRT, COM1, PMC, Reset|
|Additional||Watchdog, HW monitor|
|Cache||1 MB L2 cache|
|DRAM speed||Dual Channel 533 MHz|
|Ethernet||2x 10/100/1000Base-Tx, Front and 2x PICMG 2.16|
|Flash Disk||CompactFlash and USB Flash socket|
|Front Side Bus||533 MHz|
|Frontpanel||VGA, COM, 2x Ethernet, 2x USB, LEDs, Reset, PMC cutout|
|Graphics||945 GM internal, max. 128 MB|
|PMC||1x 32 Bit / 33 MHz 3.3V|
|Power Consumption||max. 28 W|
|Rear I/O||Yes, PICMG2.16|
|System peripheral||System or Peripheral|
|Temperature/Humidity||0-60°C, 93% rel. Humidity|
