3U CPCI Intel® Core™(2) Duo CPU with comprehensive SATA and RAID functionality 4HP CPU with passive cooling High performance based on Intel®’s Dual-Core technology 4x Rear IO SATA interfaces with RAID 0/1/5/10 support Comprehensive I/O capabilities:
RAID technology has become an essential element for meeting the escalating industry requirements for higher storage capacity, performance and data reliability.

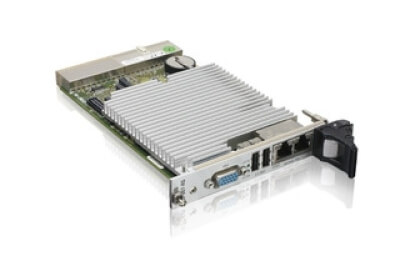

The CP307-RS, a single slot 3U CompactPCI board, is especially designed to feed these growing demands. The feature set of the board is tailored to performance and functionality at the same time:
The board comes with a high performance Intel® dual-core processor.
Intel®‘s dual-core technology is optimized for multi-threaded applications and multitasking and delivers the needed performance to build up and manage the RAID arrays.
The mobile chipset 945GM Express together with the ICH7R lay the foundations for the RAID storage by providing a comprehensive SATA and RAID functionality
|CPU||Intel® Core™(2) Duo Processor, 1.5 and 1.66 GHz|
|DRAM||Max 4 GByte (2 GByte soldered + 2 GByte via SO-DIMM socket)|
|Chipset||Intel® 945GM and ICH7R|
|4HP Version||2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs|
|CPU L2 Cache||2 / 4 MByte|
|DRAM speed||667 MHz|
|Flash Disk||CompactFlash socket|
|Power Consumption||18W / 1.66 GHz LV , 20W / 1.5 GHz LV|
|Rear I/O||2x USB 2.0, 1x Gigabit Ethernet, 4x SATA, 2x COM, 1x VGA|
