High Performance Rugged Intel® Core™ Duo CPU, extended temperature version with 1.2 GHz processor Versatile 4HP or 8HP CPU with passive cooling Scalable processor speed, Intel Core™ Duo 1.2 GHz / 1.66 GHz / 2.0 GHz Version for extended temperature -4

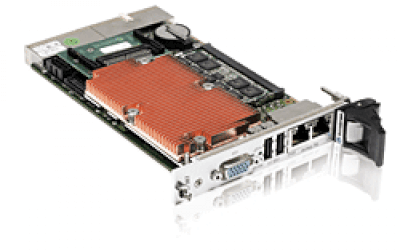

The CP307 offers dazzling performance with dual-core technology, 667 MHz front side bus, DDR2-SDRAM expandable up to 4GB and comprehensive communication interfaces: on board are 2 x GBit Ethernet, up to 6 x USB 2.0, two SATA interfaces, and a CompactFlash slot.
The graphics accelerator integrated into the Mobile Intel 945GM Express provides excellent 2D, 3D, and video features for VGA and DVI, with dual operation possible.
The CPU board is available as single slot (4HP) or dual slot (8HP). In the 8HP version, the CP307 offers additional legacy support, LPC, COM, DVI, and 2,5" SATA carriers.
The CP307 is even offered in an extended temperature version (E2 range from -40°C to +85°C) with a 1.2GHz processor.
|CPU||Intel® Core™ Duo Processor, up to 2 GHz|
|DRAM||Max 4 GByte (2 GByte soldered + 2 GByte via SO-DIMM socket)|
|Chipset||Intel® 945GM and ICH7R|
|4HP Version||2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs|
|8HP Version||DVI, COM1, 2x USB 2.0, PS/2, Reset, HDD Carrier|
|CPU L2 Cache||2 MByte|
|DRAM speed||667 MHz|
|Flash Disk||CompactFlash socket|
|Power Consumption||18 W / 1.66 GHz LV|
