CP306-V
Celeron M 600MHz (313) / 1.3GHz (320), Industry tailored CPU Celeron M 600MHz (313) / 1.3GHz (320) with passive cooling Industry tailored with DVI, PS/2, CompactFlash access on Frontpanel Up to 1GB PC333 DDR SDRAM w/ or w/o ECC via SODIMM-socket Mez
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

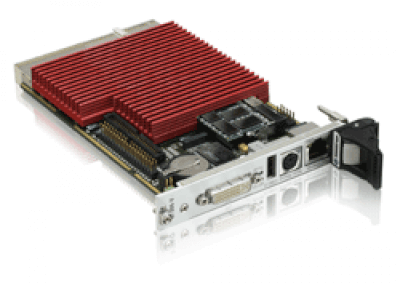

CP306-V, Celeron M, Industry tailored CPU
The CP306-V 3U CompactPCI system master CPU from Kontron Modular Computers demonstrates PC computing performance in a first-rate resistant construction.
Based on the Intel Celeron M processor the CP306-V at 1.3GHz has the best price / performance ratio in the Kontron cPCI Value Line.
The 8HP version adds full PC connectivity (DVI-I, Fast Ethernet, USB, PS/2, COM1, onboard HDD, Compact Flash, and second IDE connector, reset button, LED).
Vlastnosti
The CP306-V 3U CompactPCI system master CPU from Kontron Modular Computers demonstrates PC computing performance in a first-rate resistant construction.
Based on the Intel Celeron M processor the CP306-V at 1.3GHz has the best price / performance ratio in the Kontron cPCI Value Line.
The 8HP version adds full PC connectivity (DVI-I, Fast Ethernet, USB, PS/2, COM1, onboard HDD, Compact Flash, and second IDE connector, reset button, LED).
Vlastnosti
| CPU | Intel® Celeron® M up to 1.3 GHz |
| DRAM | up to 1 GByte SO-DIMM DDR |
| Chipset | Intel® 855GME and ICH4 |
| 4HP Version | 1x Ethernet, DVI-I, PS/2, 1x USB 2.0, LEDs |
| 8HP Version | COM1, CompactFlash access, Reset |
| CPU L2 Cache | 512 kByte |
| DRAM speed | 333 MHz |
| Ethernet | 1x 100Base-Tx |
| Flash Disk | CompactFlash socket, Front panel access |
| Graphics | 855GME internal |
| Power Consumption | 20 Watt / 1.3 GHz |
