CP306

Pentium M, 2MB L2 cache, up to 1.8GHz Pentium M with 2MB L2 cache up to 1.8GHz Up to 1GB direct soldered DDR-SDRAM/ECC at 333MHz Intel® 82855GME chipset with internal graphic controller, resolution 2048 x 1536 x 8bit/60Hz, max. shared memory 6

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

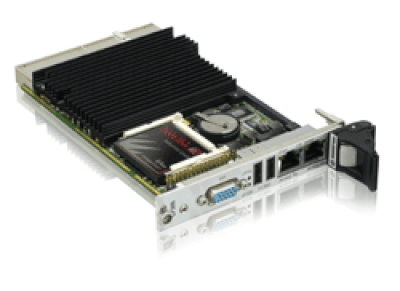

CP306 - Pentium M processor 745 performance for less power consumption

The CP306 3U CompactPCI system master CPU from Kontron Modular Computers demonstrates high PC computing performance in a first-rate resistant construction.

Based on the Intel Pentium M processor the CP306 at 1.8GHz equals performance wise a Pentium 4 board at 2.6GHz to 2.8GHz, but comes in single slot / 4HP width.

This robust designed CPU fits ideal in applications with a low power budget or tight thermal constraints and is even offered in an extended temperature version (E2 range from -40°C to +85°C) with dedicated processor versions.

The rear IO versions enable to access all interfaces, of the 4HP board, from the back side of the housing.

The 8HP version adds full PC connectivity (PS/2, COM1/2, onboard HDD, FDD, LPT and second IDE connector, reset button, LED).


Vlastnosti
CPU Intel® Pentium® M up to 1.8 GHz (745)
DRAM 1 GByte with ECC soldered
Chipset Intel® 855GME and ICH4
4HP Version 2x Ethernet, CRT, 2x USB 2.0, LEDs
8HP Version COM1/2, PS/2, Reset, HDD Carrier
CPU L2 Cache 2 MByte
DRAM speed 333 MHz
Ethernet 1x 1000Base-Tx, 1x 100Base-Tx
Flash Disk CompactFlash socket
Graphics 855GME internal
Power Consumption 22 W / 1.8 GHz, 13 W / 1.4 GHz
Rear I/O Optional
