Intel® Atom™ 3U CompactPCI CPU board Low-power CPU based on Intel®’s Atom™ technology Passive cooling concept for convection cooled and forced airflow applications Fully EN50155 compliant Comprehensive I/O capabilities: Gigabit Ethernet, USB,

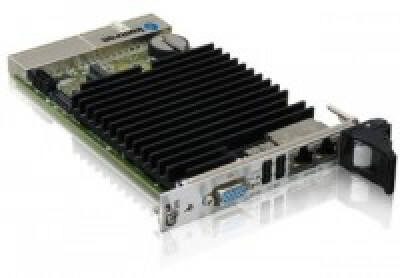

The CP305, a low-power 3U CompactPCI board, supports the highly efficient Intel® Atom™ N270 combined with the Intel® 945GSE Express Chipset and ICH7-M I/O Controller Hub.
The 1.6 GHz Intel® Atom™ Processor N270 delivers high performance combined with low power consumption and minimal cooling requirements. The processor comes with one core supporting two parallel threads (Intel® Hyper-Threading technology) for better performance and increased system responsiveness.
The mobile chipset 945GSE featuring the Intel® 3D graphics accelerator delivers sophisticated graphics performance for high-resolution and dual display applications.
|CPU||Intel® Atom™ N270, 1.6 GHz|
|DRAM||Max. 2 GByte soldered DDR2|
|Chipset||Intel® 945GSE and ICH7-M|
|4HP Version||2x Gigabit Ethernet, CRT, 2x USB 2.0, 2x LEDs|
|8HP Version||DVI, COM1, 2x USB 2.0, PS/2, Reset, HDD Carrier|
|CPU L2 Cache||512 kByte|
|DRAM speed||533 MHz|
|Flash Disk||CompactFlash socket|
|Power Consumption||10 W / 1.6 GHz with 2 GB RAM|
