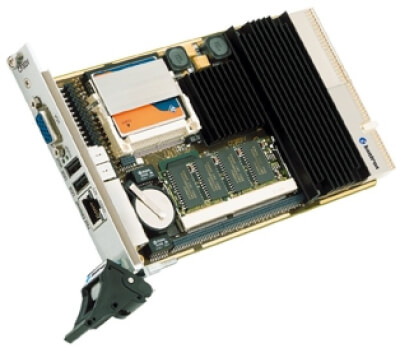

CP303-V

Celeron 256KB L2 Cache 400MHz Up to 512 MByte SDRAM on one SODIMM socket 815 chipset internal VGA Fast ethernet channe Optional rear I/O support Celeron microBGA ULV 400MHz

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

Value Line: optimized design for cost sensitive applications

Designed with value oriented components the CP303-V is tailored for cost sensitive applications without compromising on the processor performance.


Vlastnosti

CPU Intel® LV Celeron® 400 MHz
DRAM up to 512 MByte SO-DIMM
Chipset Intel® 82815GMCH and 82801 ICH2
4HP Version 1x Ethernet, 2x USB, LEDs, CRT or COM1
8HP Version COM 1/2, PS/2, Reset
CPU L2 Cache 256 kByte
DRAM speed 133 MHz
Ethernet 1x 10/100Base-Tx
Flash Disk CompactFlash socket
Front Side Bus 133 MHz
Graphics I82815 internal
Power Consumption 8 Watt / 400 MHz
