Rugged display-processing module

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • MIL qualification
  • Powerful processing performance in extreme conditions
  • Compact design
  • Modular and open architecture allowing the most recent PCIe graphics cards
  • Intel® Mobile CoreTM computing power
  • Rugged design for on-the-move operations
  • High-resolution network video streaming
  • High-performance image processing
  • Extensive range of I/O options
  • Dual Ethernet featuring high redundancy
  • Scalable architecture for custom-made applications
  • Easy local or remote maintenance
  • Options with or without cooling fans

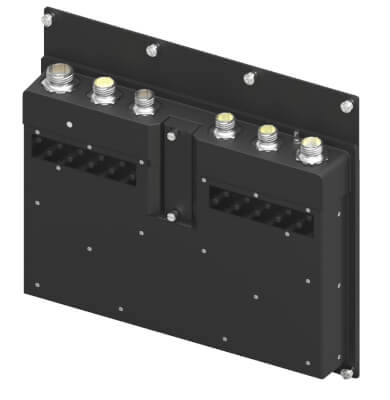

The DPM-S display processing module from ScioTeq delivers the latest in industrial workstation-class PCIe graphics and Intel® Mobile CoreTM  computing performance, all packaged in a compact and sealed enclosure. Its built-in rugged computer is qualified for use in harsh operating conditions.

Hardware-Accelerated Streaming and 3D Imaging
Networked video streaming and processing, such as image fusion, are enabled through GPU hardware acceleration for real-time situational awareness and enhanced decision making.

Designed for Integration
Multiple expansion slots allow customization of the platform interfaces, making the CODIS DPM-S unit configurable for applications from thin client up to fully functional workstations.

Previouse names Barco DPM-S / Esterline Codis DPM-S



Computing  Intel® Quad Core™ I7-6822EQ, 4 x 2.0 GHz
Graphics card  Intel® HD Graphics 530 (standard, Fanless Chassis)
Option: NVIDIA GPU (Requires Fans Chassis)
Inputs / outputs 2 x DVI-DL (standard, Fanless Chassis)
1 x DVI-DL (GPU Option, Fans Chassis)
2x Intel PRO1000 Gigabit Ethernet port
4x USB 2.0
4x isolated serial lines (RS-232/RS-422/485)
HD audio in/out/mic/PTT
4x isolated video inputs RS-170, PAL/NTSC
Option slots 1x PEG16 (MXM or PCIe)
1x XMC or M.2 mini PCIe 4x mini PCIe
1x M.2 mini SATA
2x isolated CAN bus, J1939 and CAN 2.0B
Operating system No Operating System installed
Power supply 28 VDC nominal
Power consumption 62 W nominal
Dimensions 305 x 217 x 76 mm / 12.00 x 8.50 x 3.00 inches (w x d x h)
Weight  5 kg / 11 lbs
Operating temperature -30° to +55° C (+65° C with fans)
Storage temperature -40° to +71° C
Humidity 95 percent, 60° C
Altitude 35,000 feet operating, 40,000 feet non-operating
Salt fog 48 hours, 5-percent concentration
Sand and dust blowing sand/dust
Ingress protection IP65
Vibration trailer and composite-wheeled vehicles
Shock 40 g, 23 ms (6 shocks/axis)
Ground army
