DPM-3

Customizable computer delivers real-time video processing and MIL-qualified performance in a compact, rugged design

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • MIL qualification
  • Powerful processing performance in extreme conditions
  • Compact design
  • Modular and open architecture allowing the most recent MXM graphics cards
  • Intel® Mobile CoreTM computing power
  • Rugged design for on-the-move operations
  • High-resolution network video streaming
  • High-performance image processing
  • Extensive range of I/O options
  • Dual Ethernet featuring high redundancy
  • Scalable architecture for custom-made applications
  • Easy local or remote maintenance

Compact, rugged video processor with open architecture
The DPM-3 rugged computer from ScioTeq is used for on-the-move operations in the space constrained crew stations of combat and tactical vehicles and helicopters. It delivers the latest MXM graphics and Intel® Mobile CoreTM computing power, and is fully MIL qualified and field proven.

Compact, Modular Solution for Extreme Environments
The DPM-3 computer is designed for optimal SWaP-C (size, weight, power, and cost), offering the most compact package in its processing class. Its modular and open architecture facilitates a complete, customized solution, all ruggedized for the most extreme environments.

Real-Time Video Processing
The DPM-3 computer easily connects to a wide range of sensors, and its discrete GPU enables hardware accelerated image processing. Also featured are advanced video processing (such as image fusion) and high-resolution video streaming functionality for improved situational awareness.

Previous names Barco DPM-3 / Esterline DPM-3/ Esterline CODIS DMP-3

Specifikace

Computing  Intel® Quad CoreTM i7-6822EQ, 4x 2.0 GHz
RAM Up to 16 GB DDR3 SODIMM
Graphics card  Integrated Intel® HD530 Graphic
Storage capacity  256 GB Removable SSD, SATA II compliant (3 Gb/sec)
Inputs / outputs 2 single link DVI outputs for primary and secondary display
2x Intel PRO1000 Gigabit Ethernet ports
6x USB 2.0
8x serial lines (RS232/RS422/RS485) 2x CAN buses, CAN 2.0B compliant
HD audio in/out/micro AC 97
I/O isolated or buffered as applicable
Option slots 1x MXM (graphics upgrade slot)
2x XMC or 1x XMC and 4x mini PCI-e
1x vehicle I/O extension slot
Operating system Microsoft Windows 10 IoT Enterprise 2016 LTSB, 64-bit
BIT, BITE, Maintenance Enhanced embedded Built-In-Test features to provide permanent unit monitoring, Fault detection, Fault isolation, and Fault recording. Enhanced Maintenance capabilities to configure the unit, Locally monitor the unit (Customer Application), even Remotely Maintain the unit.
Power supply 28 VDC, MIL-STD-1275D compliant, IES hold-up compliant
Power consumption 50 W typ., 80 W max. (without heaters)
Dimensions 305 x 217 x 76 mm / 12.00 x 8.50 x 3.00 inches (w x d x h)
Weight  5 kg / 11 lbs
ENVIRONMENTAL MIL-STD-810G
Operating temperature -46° C to +65° C (+71° C with limitations)
Storage temperature -46° C to +71° C
Humidity 95 percent, 60° C
Altitude 40,000 feet operating, 50,000 feet non-operating
Salt fog 48 hours, 5-percent concentration
Sand and dust blowing sand/dust
Ingress protection 1 meter immersion for 30 minutes
Vibration Tracked-vehicle profile
Shock: 40 g, 23 ms (6 shocks/axis)
EMI / EMC MIL-STD-461E/F
Ground army
OPTIONS
Graphics upgrade ATI Radeon HD8860M MXM 3.0, with operating temperature limitations
ScioTeq vehicle I/O extension board 16x digital input, contact to the vehicle chassis ground
4x digital outputs, 300 mA, referenced to the vehicle VBAT (32 V max. low side)
4x digital outputs, 2 A, referenced to the vehicle GND (high side)
4x analog inputs (2x 0 to 5 V and 2x 0 to 36 V)
Operating system Windows 10 IoT 64 bit, Centos Linux 7.x, 64-bit upon request

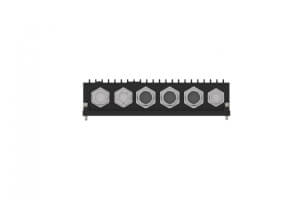

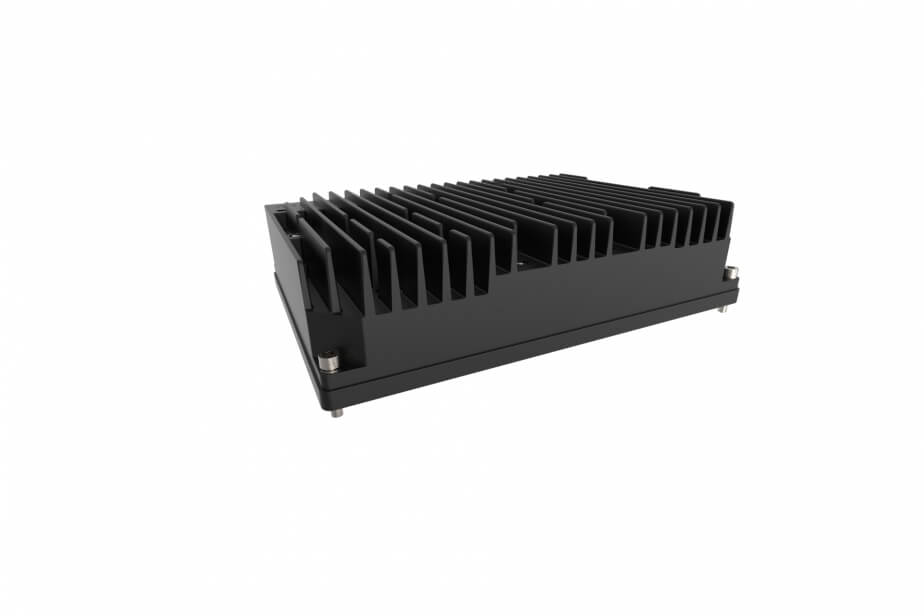

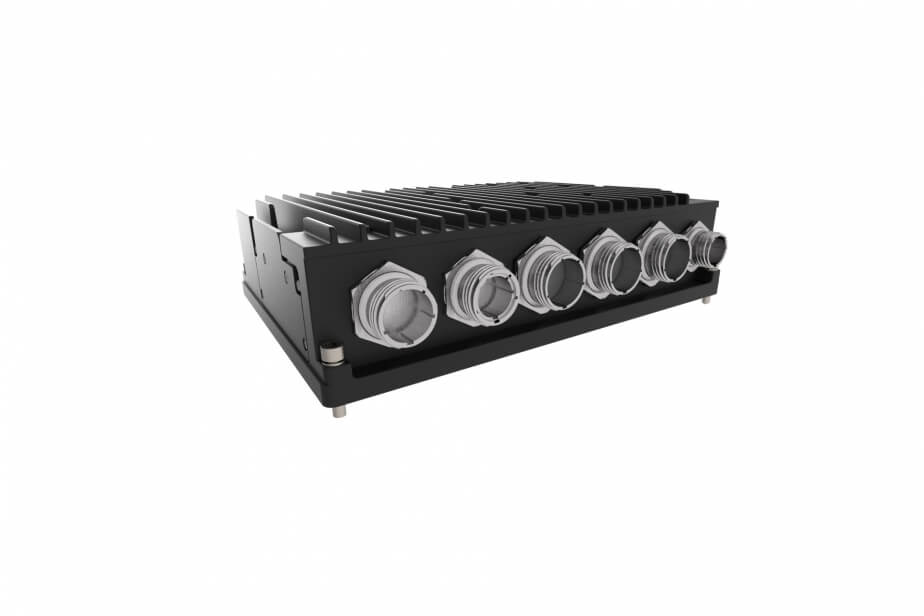

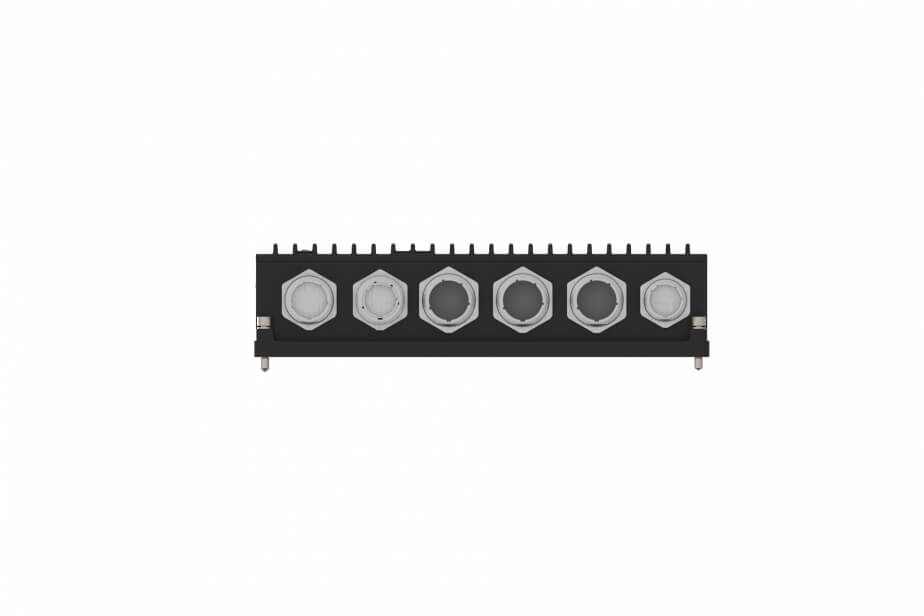

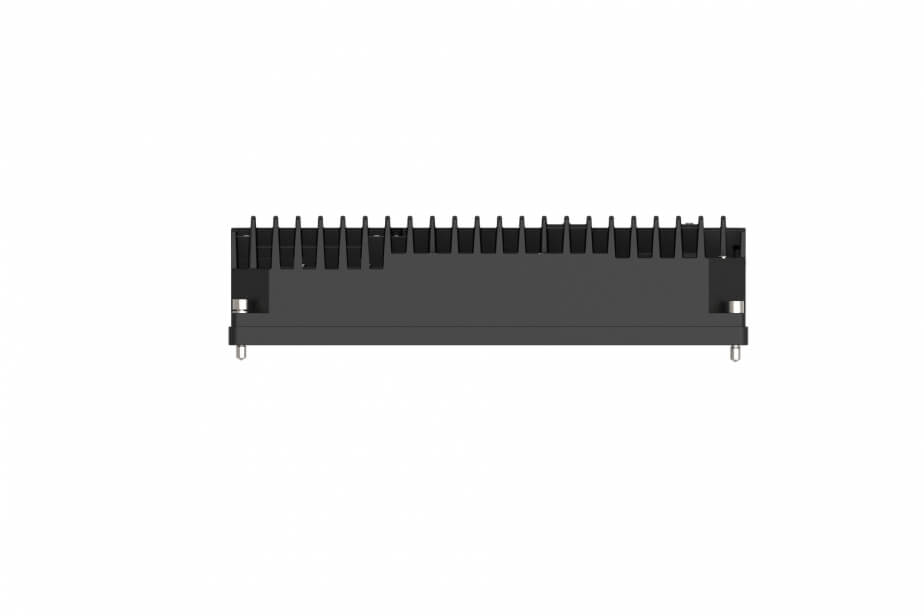

Fotogalerie
