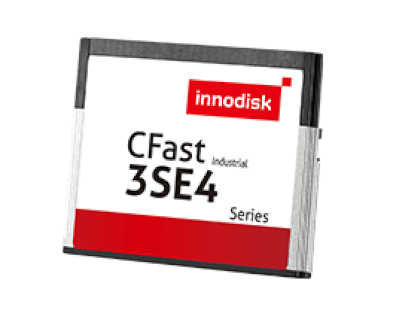

CFast 3SE4

SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Excellent performance
  • Long life span
  • Designed with LDPC ECC engine
  • DRAM-less, 100% data integrity
  • Supports TRIM/NCQ/SMART
  • Built in iData Guard

Innodisk CFast 3SE4, featured as small form factor, can be configured as a boot device or data storage and is suitable for most industrial application. With SLC NAND Flash and LDPC ECC, CFast 3SE4 provide high performance and prolong lifespan with exceptional reliability. Supported with hardware write protection, CFast 3SE4 can prevent valuable data on a device from modification and deletion.

Innodisk CFast 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

Specifikace

Model Name CFast 3SE4
Interface SATA III 6.0 Gb/s
Flash Type SLC
Capacity 8GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 520/360
Max. Power Consumption 1W
Thermal Sensor ST- Optional / WT- Default
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
