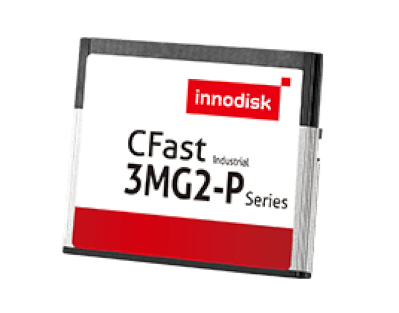

CFast 3MG2-P

SATA III solution for industrial field

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • SATA III solution for industrial field
  • High Sequential/IOPS performance
  • Intelligent error recovery system
  • iSMART for disk health monitoring
  • iData Guard for abnormal power failure
  • Wide Temperature: -40℃~85 ℃
  • Supports TRIM/NCQ/SMART
  • DEVSLP supported

Innodisk CFast 3MG2-P is SATA III 6Gb/s flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. CFast 3MG2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

Specifikace

Model Name CFast 3MG2-P
Interface SATA III 6.0 Gb/s
Flash Type MLC
Capacity 32GB~256GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 560/350
Max. Power Consumption 2.5W(3.3V x 760 mA)
Thermal Sensor ST- Optional / WT- Default
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
