CFast 3ME4

Innovative Firmware Algorithm

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Innovative Firmware Algorithm
  • DRAM-less, 100% data integrity
  • Excellent random performance
  • Wide Temperature: -40℃~85 ℃
  • Supports TRIM/NCQ/SMART
  • Built in iData Guard

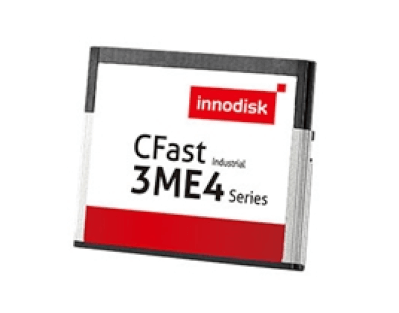

Innodisk CFast 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability. Without additional driver, CFast 3ME4, featured as small form factor, can be configured as a boot device or data storage and is suitable for most industrial application. Supported with hardware write protection, CFast 3ME4 can prevent valuable data on a device from modification and deletion.


Innodisk CFast 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

Specifikace

Model Name CFast 3ME4
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 8GB~256GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 530/210
Max. Power Consumption 1W
Thermal Sensor ST- Optional / WT- Default
H/W Write Protect Optional
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
