CFast 3ME3

Innovative Firmware Algorithm

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Innovative Firmware Algorithm
  • DRAM-less, 100% data integrity
  • Excellent random performance
  • Wide Temperature: -40℃~85 ℃
  • Supports TRIM/NCQ/SMART
  • Built in iData Guard

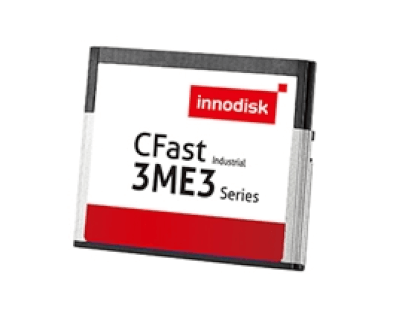

The Innodisk CFast 3ME3 operates at SATA III 6.0 Gb/s, which offers data transfer rate of read up to 220MB/s. and of sequential write up to 130MB/s. Compliant with CFast 2.0 standard, it is designed with 7+17 pin connector and is SATA compatible. Due to the idle power saving, it reduces 30% power consumption. CFast 3ME3 is featured as small form factor, and suitable for most industrial application.


CFast 3ME3 can work under harsh environment, and complies with ATA protocol. Without additional drives, the disk can be configured as a boot device or data storage device. CFast 3ME3 support hardware write protect to prevent modification of valuable data on a device. Besides, through Innodisk's enhanced power cycling technology and more capacitors, CFast 3ME3 prevents data loss caused by sudden power failure. By using Innodsik's iSMART, users can not only monitor the operation status of SSD, but also visualize Wear-Leveling status with graphics.

Specifikace

Model Name CFast 3ME3
Interface SATA III 6.0 Gb/s
Flash Type MLC
Type Standard
Capacity 8GB~256GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 220/130
Max. Power Consumption 1.1W
Thermal Sensor ST- Optional / WT- Default
H/W Write Protect Optional
S.M.A.R.T. Y
Dimension (WxLxH/mm) 42.8 x 36.4 x 3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
