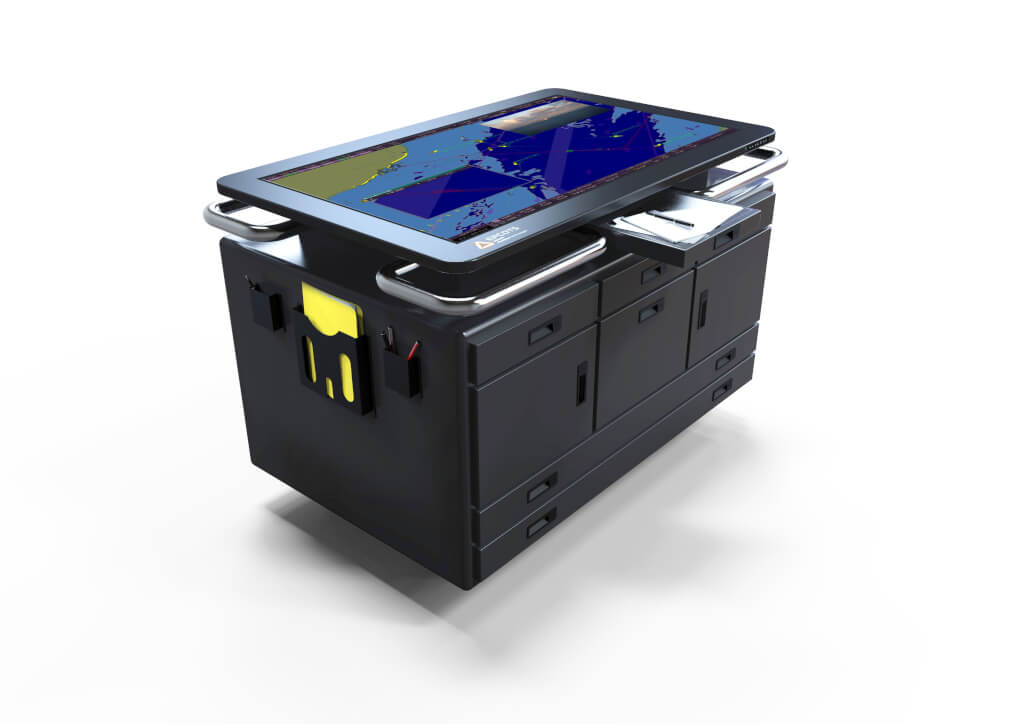

C-CAP Wi 55

Odolný dotykový stůl

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

High Quality TFT LCD (high contrast ratio and luminance)
Dimensions: 1740x1190x960 mm
Resolution: 1920*1080 (HD), 4K (optional)
Touch sensor : Infrared or Projected Capacitive (gloves use compliant), multitouch : up to 100 points
Typical product availability: 8 to 10 years
Luminance : up to 1000 cd/m² (Sunlight readability enhancement)
Viewing angle: 178°/178°
Dimming, ON/OFF, OSD access on weatherproof dimmable front panel keyboard (Dimming 0-100%, Blackout with automatic disabling of touch sensor)
Protected against liquid spillage (IP65)
Color customization, customer logo adding
Integrated and con gurable PC (CPU, GPU…), stockage on HDD, SSD or CF…
I/O interface con gurable : Ethernet, USB, Serial port…
Power : 115 VAC 60 Hz or 220 VAC 50 Hz
Gas-spring-assisted system to raise/lower the display with positive retention in both position (optional)
Chemically strenghned glass compatible with horizontal operation

Shock: MIL STD 810 (20/11 ms 1/2 sinus) operating
EMI: MIL STD 461 (CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102), IR configuration
Temperature: MIL STD 810 (0° to 50°C operating, -20 to +70°C storage)
Vibration: MILS STD 810 (10-2000Hz, 2Grms)
MIL STD 167 table 1
Humidity: MIL STD 810 (95% RH @ 30°C, non condensing)
