BL72E - Rugged Embedded Box PC with AMD Ryzen for Transportation

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • AMD V1000 APU, up to 32 GB DDR4 DRAM
  • 2.5" HDD/SSD, NVMe storage
  • Gigabit Ethernet, USB 3.0, DisplayPort, Audio
  • RS232, RS422/RS485, IBIS
  • 2 slots for CAN, MVB
  • Class S2 wide-range power supply, incl. ignition
  • -40 °C to +70 °C (+85 °C), fanless
  • Compliant to EN 50155 (railways)

For IoT or Storage-Intensive Applications

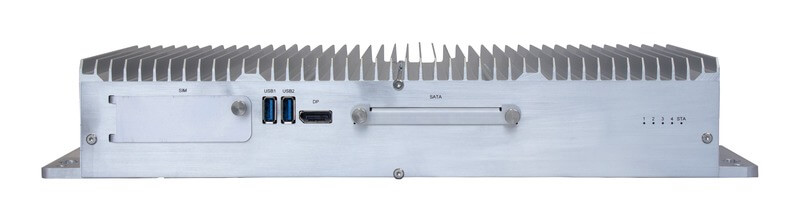

The BL72E is a fanless, maintenance-free box computer for embedded applications in transportation, e.g., in trains. It offers a SATA HDD/SSD shuttle providing the storage capacity necessary for entertainment servers or video surveillance systems, plus eMMC memory and an M.2 slot for PCIe based storage (NVMe).

Cost-Efficient High-End Processor Performance

The BL72E is based on AMD's Ryzen V1000 APU family featuring excellent power-per-watt performance and a Radeon Vega next-generation 3D graphics engine. With up to four high-performance processor cores and AMD virtualization support, and up to 32 GB soldered-down DDR4 SDRAM, the BL72E offers powerful computing for handling data intensive work loads efficiently, e.g. for implementation of complex algorithms for deep learning or machine intelligence.

Multi-Talent for Wireless Communication

The BL72E can take over typical on-board wireless functions, such as an Internet connection for passengers or locating the vehicle. A GNSS positioning interface is available. Two PCI Express Mini Card slots and two M.2 slots provide maximum flexibility in implementing mobile service standards up to 4G LTE or WLAN IEEE 802.11, and derivates. A total of eight externally accessible micro-SIM card slots is available. As an option, the box can be delivered with a second I/O board offering additional LTE modems, storage and I/O.

Multitude of I/O

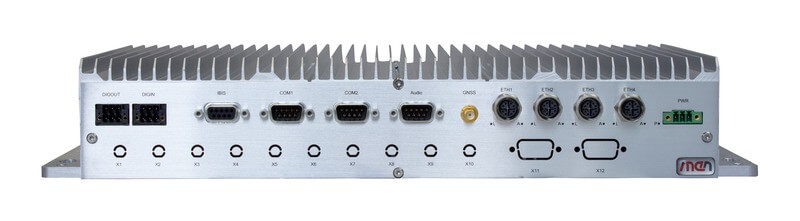

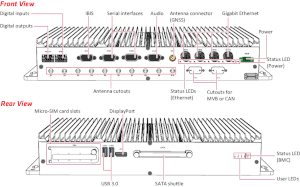

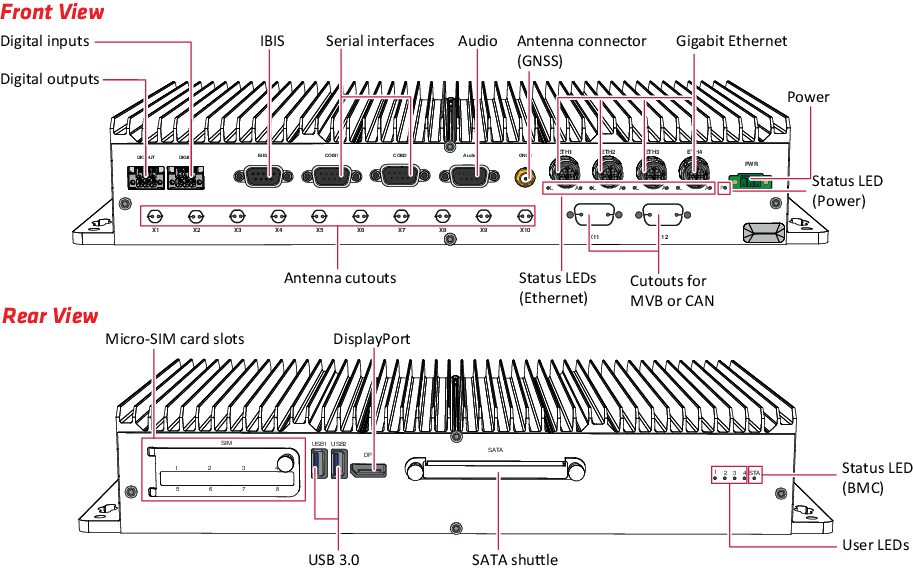

The BL72E supports one DisplayPort interface with maximum 4K resolution. A multitude of other I/O is available, including four Gigabit Ethernet, audio, two USB 3.0, RS232, RS422/RS485, IBIS, digital inputs and outputs. An MVB master or slave or a CAN interface can optionally be implemented.

Railway-Compliant PSU with Ignition Function

The BL72E comes with a class S2 wide range power supply and complies to EN 50155. The power can be switched on and off using an ignition signal on the power connector.

Fanless Operation for Mobile Applications

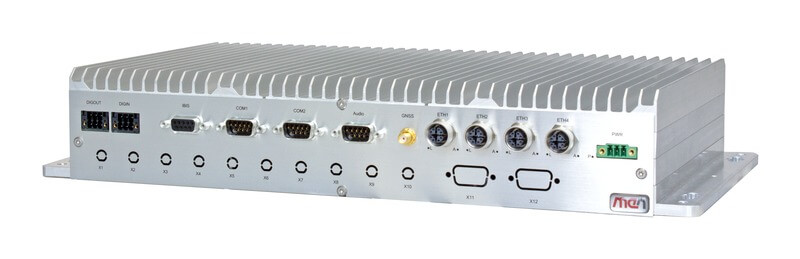

The system offers long-term availability for 10 years and is designed for fanless operation at temperatures from -40 °C to +70 °C (+85 °C for up to 10 minutes). Its rugged aluminum housing with cooling fins serves as a heat sink and provides conduction cooling.
