BL51E

• Intel Atom E3900 series
• Up to 8 GB DDR3 DRAM soldered, ECC
• 1 HDD/SSD shuttle
• 4 Gb Ethernet ports
• 4 PCI Express Mini Card slots with micro-SIM slots
• WLAN, 4G LTE, GPS or GLONASS
• 2 USB 2.0, 2 DisplayPort, 1 CAN, 4 UARTs
• 24 and 36 VDC nom. class S2 PSU, with ignition
• -40°C to +85°C, fanless
• Conformal coating of internal components
• EN 50155 compliant (railways)
• ISO 7637-2 compliant (E-mark for automotive)

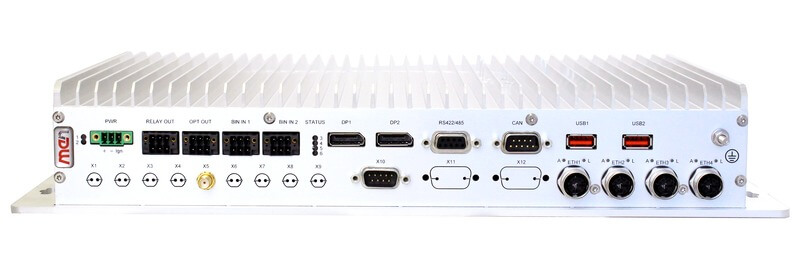

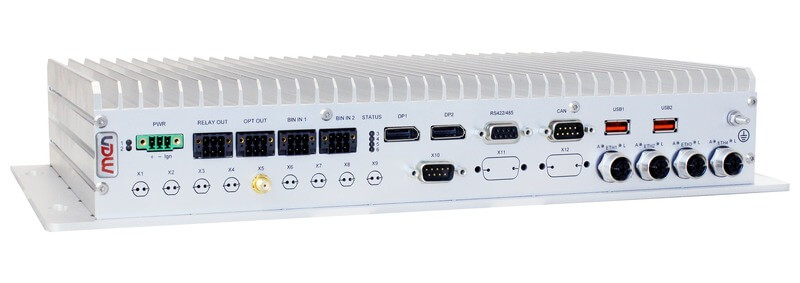

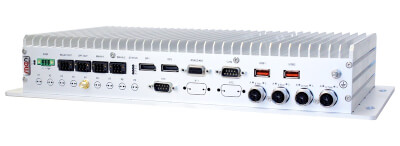

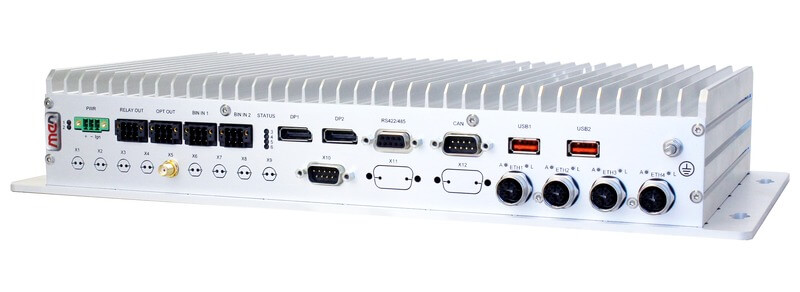

The BL51E is a rugged, fanless EN 50155 railway and E-Mark automotive box computer for in-vehicle functions like Passenger Information Systems (PIS), surveillance and storage based on Intel Atom E3900.
