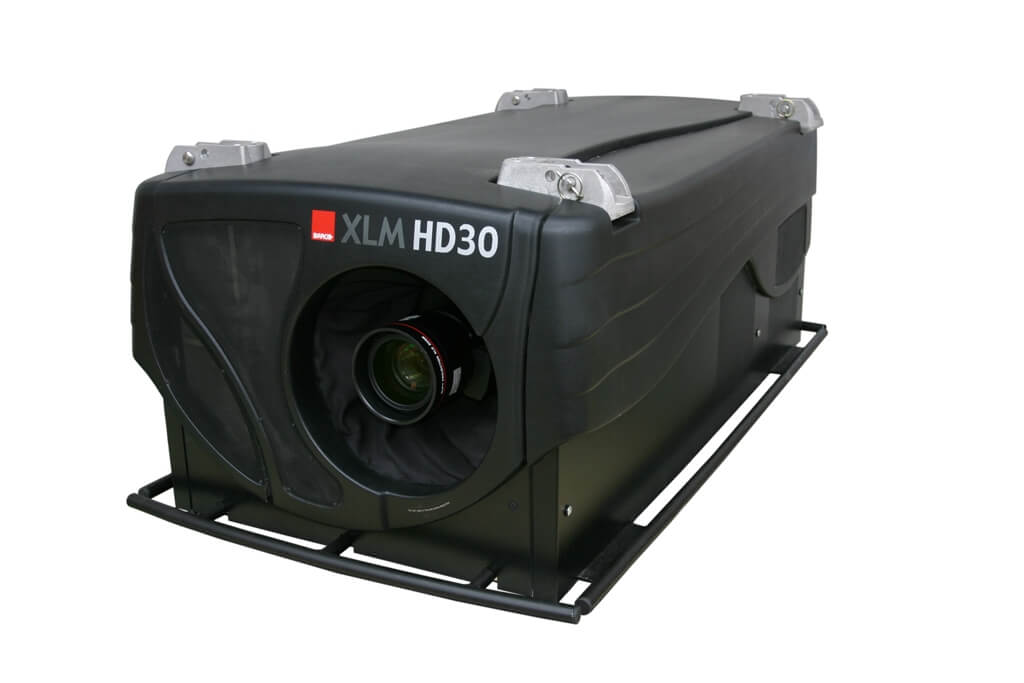

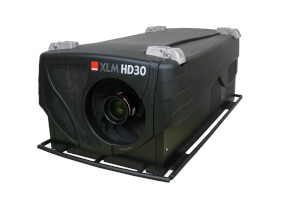

XLM HD30
Projektor XLM HD30 je nejjasnější projektor na světě s jasem 30000 lumenů. Takže je nejlepší volbou pro dynamické prezentace i ve velmi světlých prostorech jako jsou koncertní sály nebo sportovní haly.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Powerful projection for the largest venues
The XLM HD30's 30,000 lumens light output is strong enough to conquer any ambient light condition, and project images in deep, saturated colors on a large screen. Through its superior video processing and picture-in-picture capabilities, you can render your presentations interactive and energizing without having to buy extra peripherals. In addition, it is amazingly quick to setup and get to work.
Extensive durability
Barco's XLM HD30 projector features a sealed optical engine that prevents dust, smoke or other environmental contamination to its image quality. Additionally, its liquid cooling helps to cut noise levels to a minimum and increases the XLM's reliability to a maximum, guaranteeing a long system lifetime and ensuring that your investment renders optimally.
Technical specification:
The XLM HD30's 30,000 lumens light output is strong enough to conquer any ambient light condition, and project images in deep, saturated colors on a large screen. Through its superior video processing and picture-in-picture capabilities, you can render your presentations interactive and energizing without having to buy extra peripherals. In addition, it is amazingly quick to setup and get to work.
Extensive durability
Barco's XLM HD30 projector features a sealed optical engine that prevents dust, smoke or other environmental contamination to its image quality. Additionally, its liquid cooling helps to cut noise levels to a minimum and increases the XLM's reliability to a maximum, guaranteeing a long system lifetime and ensuring that your investment renders optimally.
Technical specification:
| Light Output | 30 000 Center Lumen 27 000 ANSI Lumen |
| Resolution | 2048 x 1080 (native) |
| Brightness uniformity | > 80 % |
| Contrast ratio | 2000:1 full field – high contrast mode: 2800:1 (full field) |
| Display | 3 Chip DLP DC2K (resolution of 2048 x 1080 pixels (aspect ratio 16:9)). |
| Convergence | Max allowed convergence drift is 0.5 pixel. This is checked on vertical and horizontal midlines only. Corners are not applicable for convergence error. This is measured with TLD 1.2 lens on axis |
| Features |
|
| Picture-in-picture | Up to 4 sources simultaneous (with alpha blending; z-order; color keying) |
| Inputs | Modular inputs: Standard: 1x DVI 1x SDI 1x (HD)SDI (+ loop through) 1x RGB Analogue (up to UXGA) Optional: 1x composite video/S-Video 1x RGB/YUV (both + loop through) |
| Outputs | DB15 out (2048*1080 @ 60 HZ) |
| Communication |
|
| Compatibility |
|
| Input source compatibility | 2048x1080 (max. input) |
| Screen size | From 1-16m and higher / 3-52ft.recommended |
| Scan Frequencies | pixel clock >162Mhz (uxga 60hz) including true HD 1920 * 1080@ 50/60 Hz and 2048* 1080@ 50/60Hz |
| Network connection | Standard (10/100 base-T; 2 ports; internal HUB) |
| On board display server | Ethernet control standard remote control projector over ethernet via Projector Toolset |
| Ambient Temperature | Max 35°C (95°F) |
| Lamp | 6.3 kW Xenon Lamp warranty: 750 hrs |
| Lenses | Fixed focal lenses: XLD 1.0 - R9852950 Zoom lenses: XLD 1.45 - 1.8 - R9852090 XLD 1.8 - 2.4 - R9852092 XLD 2.2 - 3.0 - R9852094 XLD 2.8 - 5.5 - R9852100 XLD 5.5 - 8.5 - R9852920 |
| Lens Shift | Vertical: -10% to +110% Horizontal: -50% to +50% (samll differences exist per lens type) |
| Lens encoders | On zoom and focus (with TLD lenses) |
| Throw Ratio | Lens Throw ratio XLD 1.0 - 1.0 Zoom lenses: XLD 1.45 - 1.8 -> 1.45 - 1.8 XLD 1.8 - 2.4 -> 1.8 - 2.4 XLD 2.2 - 3.0 -> 2.2 - 3.0 XLD 2.8 - 5.5 -> 2.8- 5.5 XLD 5.5 - 8.5 -> 5.5 - 8.5 |
| ScenergiX | Standard horizontal and vertical electronic edge blending |
| Sealed DLP™ core | Standard |
| Dust filters | metal filters |
| Noise Level | 64dba @ 40°C |
| Mains Voltage | 3 x 400 V + N or 3 x 220 V 50/60 HZ |
| Power consumption | 8000 W |
| Power Dissipation | max 25100 BTU/h |
| Weight | 180 kg (400 lbs) |
| Dimensions | WxLxH: 810 x 1563 x 631 mm (31.9 x 61.5 x 24.8 inch) |
| Shipping Dimensions | Width: 104 cm |
| Safety Regulations | Compliant with UL1950 and EN60950 |
| Electromagnetic Interference | complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A |
| Order Information | R9004460 (incl. 4 inputs) R9004461 (incl. 1 DVI) R9852411 (Spare Lamp) |
Specifikace
| čip: | 3 x DC2K DLP Chip |
| jas: | 30000 lm |
| rozlišení: | HD2K 2048 x 1080 (2.211.840 pixel) |
| výměnné objektivy: | ano |
| LAN: | ano |
| počet lamp: | 1 - Xenon |
| rozměry (š x v x h): | 810 x 631 x 1563 mm |
| hmotnost: | 180 kg |
| projekční poměr: | volitelný |
