X8
Barco X8, který nabízí vynikající kontrast a špičkovou kvalitu obrazu, představuje venkovní LED displej pro Rental & Staging. Díky své modulární konstrukci a nízké hmotnosti se snadno instaluje a servisuje.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

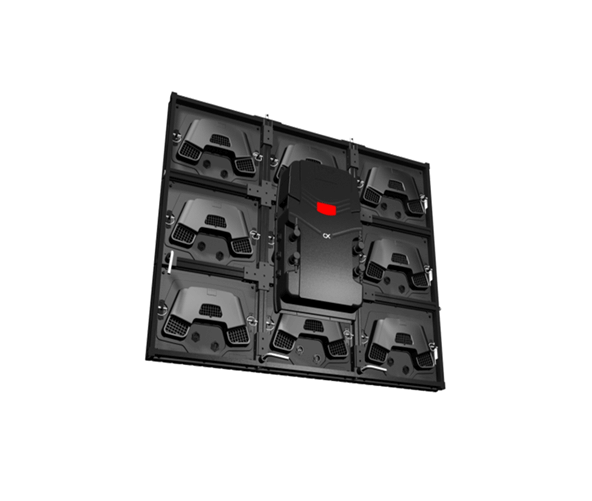

Barco's X8, which offers excellent contrast and image quality, is a true high-resolution outdoor LED display for the rental and staging industry. Thanks to its modular design and low weight, the X8 is simple to install and service.
Worry-free operation
It features auto-calibration and auto-redundancy to guarantee worry-free operation. Finally, the X8 is fully cross-rentable allowing you to mix and match tiles of different batches and various run-time ages to obtain a seamless display with a perfect image every single time.
Outdoor and indoor
Although it is mainly suited for outdoor applications, the X8 can be used for indoor installations as well thanks to its high resolution. Featuring a sea worthy standard, the X8 is highly suited for cruise ship installations in addition to event and retail applications.
Worry-free operation
It features auto-calibration and auto-redundancy to guarantee worry-free operation. Finally, the X8 is fully cross-rentable allowing you to mix and match tiles of different batches and various run-time ages to obtain a seamless display with a perfect image every single time.
Outdoor and indoor
Although it is mainly suited for outdoor applications, the X8 can be used for indoor installations as well thanks to its high resolution. Featuring a sea worthy standard, the X8 is highly suited for cruise ship installations in addition to event and retail applications.
Specifikace
| Pixel pitch | 8.6 mm |
| Brightness | 4,200 nits |
| LED type | 3-in-1 SMD |
| Processing | 16 bit/color |
| Colors | 281 trillion |
| Refresh rate | 3,200 Hz |
| Hor. viewing angle | 60/60° @50% brightness |
| Vert. viewing angle | +60/-60° @50% brightness |
| Contrast ratio | 4,000 (x : 1) |
| Lifetime | 100,000 hr @50% brightness |
| Avg Power Consumption | 800 W max. |
| Operation power voltage | 200-240V / 50-60 Hz |
| Tile size (WxHxD) in mm | 1,140 x 853 x 234 |
| Weight | 39 kg |
| Weight/m² | 40 kg |
| Pixel density | 13,408/sqm |
| 1,247/sqf | |
| 13,068/tile | |
| IP rating | IP65/54 |
| Max. stacking | 3 tiles (with Barco foot mechanics) |
| Max. hanging | 11 tiles |
| Serviceability | back |
| Source compatibility (with digitizer) |
CVBS, YC, YUV, RGB, DVI (Single & Dual link, up to 2048x1536), SDI, HDSDI, Dual link HDSDI |
| 3D capability | Yes (L/R separate, Side by side, 120 Hz) |
| Interfaces/Ports | x2 HDMI link |
| Link interface | NNI interface (HDMI connector) |
| Max link length | 10m (by Barco HDMI cable) |
| Max power cascade connection | 3 tiles |
| Operating temperature | -20°C min./+45°C max. |
| Storage temperature | -20°C min./+60°C max. |
| Operating humidity | 10% min./99% max. |
| Storage humidity | 10% min./99% max. |
| Certifications | ETL/UL, CE, FCC class A, RoHS, TUV |
