V6
LED displeje řady V jsou speciálně navrženy pro pevné instalace v brandingu, v prostředí out-of-home digitálních médií a ve sportu. Displeje řady V lze pořídit za velmi výhodnou cenu, přitom si zachovávají vysoký výkon a spolehlivost.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
The V series LED displays are specifically designed for fixed installations in branding, digital out-of-home (advertising) and sports. They come at an attractive price without compromising on performance and reliability. The V series are an excellent choice for basic LED display applications.
Excellent performance
Building on Barco’s experience with high-end LED technology, the V series is supported by the DV-100 image processor with high-class Athena™ scaler for flexible scaling. Next to supporting standard inputs up to (dual) HD-SDI, the V-series also supports new standards like 3G SDI, HDMI and DisplayPort.
Easy setup and management
The V series is managed and controlled by the dedicated V series Toolset (VTS), a direct derivative of the first-class Director Toolset. The VTS comes with an intuitive interface for easy display management and offers advanced options such as brightness, gamma and color temperature control and display configuration.
Black package LEDs for high contrast

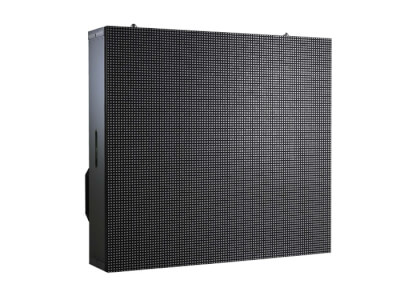

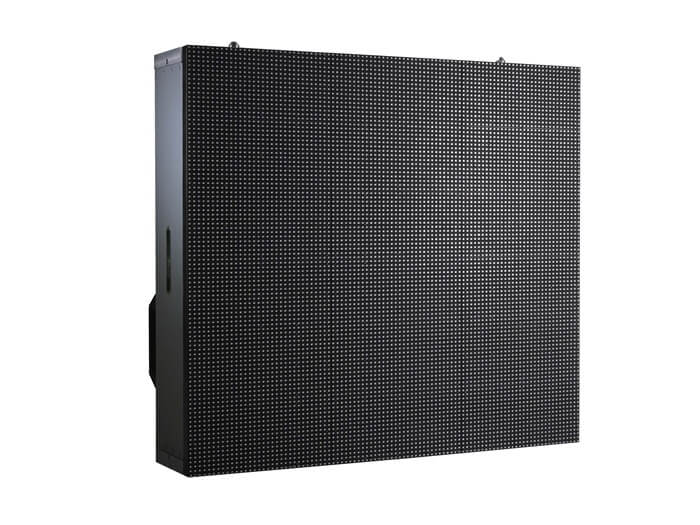

The V6 is a tile-based indoor LED display geared with 6mm pixel pitch SMD LEDs. It features the latest indoor LED technology with black package LEDs and offers dark black levels with a very high contrast. Paired with its very wide viewing angle, these elements make the V6 excel in image quality.
Excellent performance
Building on Barco’s experience with high-end LED technology, the V series is supported by the DV-100 image processor with high-class Athena™ scaler for flexible scaling. Next to supporting standard inputs up to (dual) HD-SDI, the V-series also supports new standards like 3G SDI, HDMI and DisplayPort.
Easy setup and management
The V series is managed and controlled by the dedicated V series Toolset (VTS), a direct derivative of the first-class Director Toolset. The VTS comes with an intuitive interface for easy display management and offers advanced options such as brightness, gamma and color temperature control and display configuration.
Black package LEDs for high contrast
The V6 is a tile-based indoor LED display geared with 6mm pixel pitch SMD LEDs. It features the latest indoor LED technology with black package LEDs and offers dark black levels with a very high contrast. Paired with its very wide viewing angle, these elements make the V6 excel in image quality.
Specifikace
| Pixel pitch | 6.0 mm |
| Brightness | 1,700 nits |
| LED type | 3-in-1 SMD |
| Pixel density | 27,778/sqm |
| 2,581/sqft | |
| 9,216/tile (96x96) | |
| Viewing angle | H: 120 degrees |
| V: +50/-65 degrees | |
| Contrast ratio | 2,000:1 |
| Lifetime | 50,000 hrs (@50 % brightness) |
| Power consumption | 603W/sqm |
| 241/sqm typical | |
| Tile size (WxHxD) in mm | 576 x 576 x 130 |
| Weight | 16 kg/tile |
| 35.53 lbs | |
| IP rating | Indoor only |
| Processing | 16 bit/color |
| Refresh rate | 1,200 Hz |
| Max. stacking | 17 tiles |
| Max. hanging | 34 tiles |
| Interfaces/Ports | CAT5 |
| Serviceability | back |
| Source compatibility (with digitizer) | DVI-I (CVBS/YC/YUV/DVI), RGB, SDI (HD/SD),HDMI, DisplayPort |
| Operatable digitizer | DV-100 |
| Certifications | CE, ETL, CCC, FCC classA, RoHS, China RoHS,WEEE |
