V10

LED displej pro venkovní instalace s rozlišením 10 mm (rozteč pixelů) a jasem 5 400 nitů

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Specifikace

Pixel pitch
10.0 mm
Brightness 5,400 nits
LED type 3-in-1 SMD
Pixel density 10,000/sqm
  929/sqft
  3,072/tile (64x48)
Viewing angle H: 120 degrees
  V: +10/-50 degrees
Contrast ratio 1,200:1
Lifetime 50,000 hrs (@50 % brightness)
Power consumption 512 W/sqm
  208 W/sqm typical
Tile size (WxHxD) in mm 640 x 480 x 135
Weight 20.0 kg/tile
  44.1 lbs
IP rating IP65/43
Processing 16 bit/color
Refresh rate 1,200 Hz
Max. stacking 20 tiles
Max. hanging 40 tiles
Interfaces/Ports CAT5
Serviceability back
Source compatibility (with digitizer) DVI-I (CVBS/YC/YUV/DVI),
RGB, SDI (HD/SD),HDMI, DisplayPort
Operatable digitizer DV-100
Certifications CE, ETL, CCC, FCC classA,
RoHS, China RoHS,WEEE

Detail

The V series LED displays are specifically designed for fixed installations in branding, digital out-of-home (advertising) and sports. They come at an attractive price without compromising on performance and reliability. Building on Barco’s experience with high-end LED technology, the V series is supported by the DV-100 image processor with high-class Athena™ scaler for flexible scaling. Next to supporting standard inputs up to (dual) HD-SDI, the V-series also supports new standards like 3G SDI, HDMI and DisplayPort.

Easy setup and management

The V series is managed and controlled by the dedicated V series Toolset (VTS), a direct derivative of the first-class Director Toolset. The VTS comes with an intuitive interface for easy display management and offers advanced options such as brightness, gamma and color temperature control and display configuration. The V series are an excellent choice for basic LED display applications.

Ideally suited for outdoor use

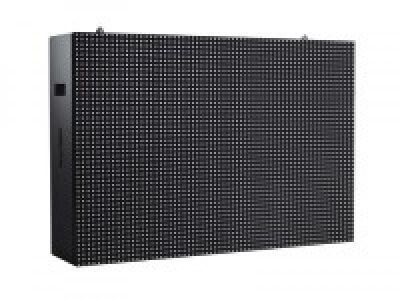

The V10 is a tile-based outdoor LED display geared with 10mm pixel pitch SMD LEDs. Designed for outdoor use, it has successfully passed Barco’s typhoon testing program which exceeds standard IP rating tests. Six weeks of heavy rain simulation proved that this product can withstand the most severe weather conditions.

Shaders for enhanced contrast and image quality

Barco’s V10 features a unique shader design with louvers that minimize the reflection and impact of the sun on the LEDs for enhanced contrast levels and improved contrast/brightness ratio. It allows for lower absolute brightness levels that guarantee a longer LED lifetime without compromising on image quality.
