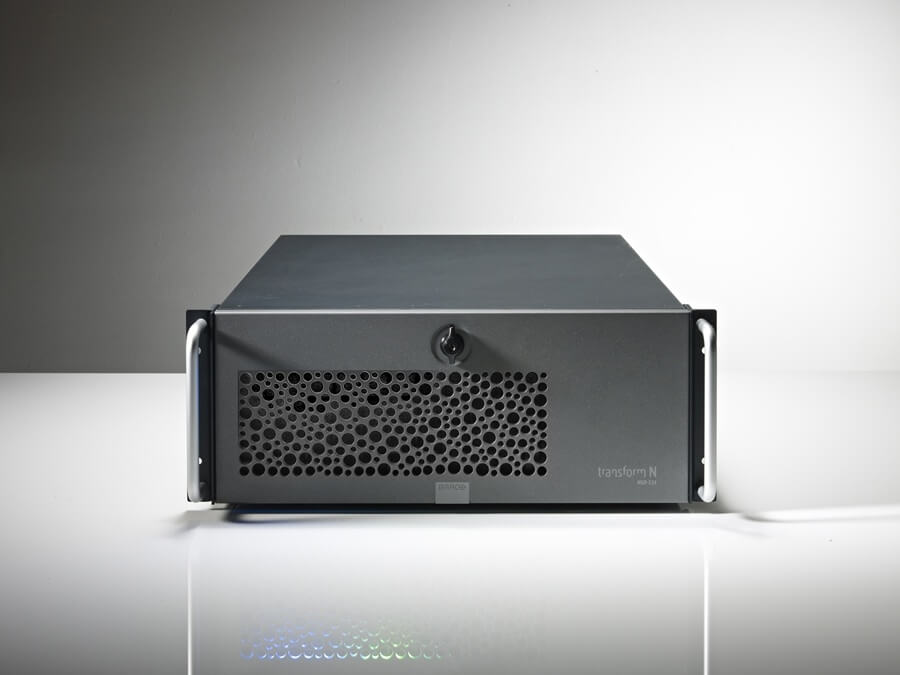

Barco's TransForm NSD is a hybrid video wall controller perfectly suited for monitoring both baseband and networked video sources purposes. It enables customers to capture sources (networked sources, local DVI/RGB inputs and analog video inputs) from anywhere and display them on a video wall in combination with high resolution 3D images. The TransForm NSD can be integrated as part of a larger TransForm N solution, where it takes the function of a multimedia terminal.
A fully qualified platform for Barco's advanced CMS control room management software, TransForm NSD allows to organize display content (including 3D accelerated content) in a smart way to enhance knowledge and improve decision-making.
Possibility to integrate into networked visualization system
TransForm NSD can be used as a multimedia terminal within a networked visualization system, capable of controlling multiple video walls. This offers customers a complete overview of data, while providing them with interaction and collaboration possibilities. As such, information can be shared between multiple sites, making crucial information omnipresent throughout your organization and beyond.
Pre-installed CMS control room management software
Large Windows 7 desktop
High-end 3D graphics acceleration
Up to 24 HD outputs through Barco's OL and OV video walls
High input density
Universal IP streaming video decoding
Baseband capture cards for analog video and DVI/RGB inputs
Local application support
Dual quad-core Intel Xeon processors for concurrent application processing and software based media decoding
|4U housing for 19" rack
|Up to 8 HD displays through DCB-110 DVI splitcard
|Up to 24 HD displays through multiple GPUs and Barco loop-through displays (OV and OL series)
|(Limited by the max. horizontal and vertical resolutions of 4000 pixels per output)
|2x 16 channel analog video input cards (see configurations)
|2x 2 channel DVI-I input card (supporting resolutions up to 1920x1200)
|Up to 24 IP video sources (SD)
|High-performance NVIDIA Quadro series cards
|2x Xeon Quad core
|12 GByte RAM
|Redundant package. Raid-1(Redundant Harddisk) + Red.PSU (Redundant Power supply)
|Windows-7 64bit Ultimate Version
|CMS with 1x Display, 5x Sidebar and 36 Viewer licenses.
