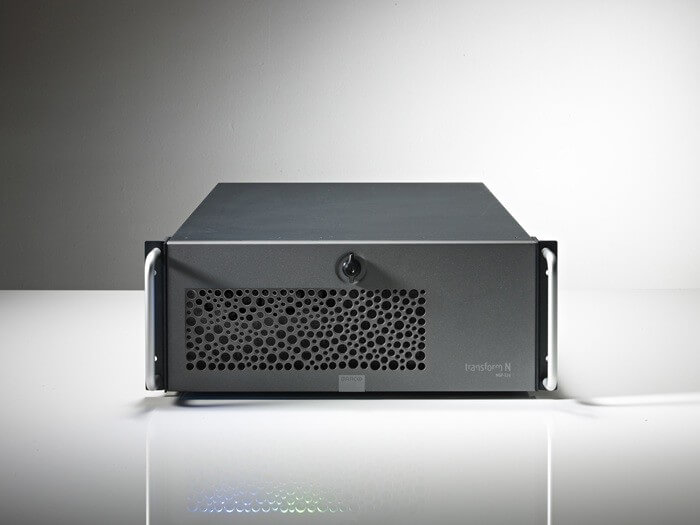

TransForm N Application Node

Jednoduchý kanálový snímač DVI s velkou šířkou pásma.

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Klíčové prvky

  • Managed as an intrinsic part of TransForm N
  • Decoupling of content definition and operational use
  • Windows 7 desktops up to 16 Megapixels
  • Redundant network interface
  • Redundant power supply

Specifikace

Platforms NGP-324 (see dedicated information on product page)
Form factor 1U housing for 19" rack
Dimensions 440 x 566 x 177mm (17.32 x 22.28 x 6.97 inch) without handles
Weight Windows 7 - 32 bit platform
  • 21kg | 46,3 lbs
  • 23.5kg | 51.8 lbs (including redundant power supply)
Power supply 2 x 400W (redundant) 100-240V, 50/60Hz
EMI Class B input filter
Environmental specifications Windows 7 - 32 bit platform
  • Operating conditions: 0°C to 35° C | 32°F to 95°F
  • Humidity: Max 80% (non-condensing)
  • Noise: With redundant power supply (2m in front,typ.) 47.4 dB(A)
Safety Regulations CE, UL and CCC certified
Resolution 8k x 4k (maximum)
