TransForm N 4/8/16-channel DVI Input Node
High density multi-channel full framerate DVI encoder. Barco’s multi-channel DVI Input Node is a standalone appliance encoding and delivering the applied input signals across Ethernet for decoding and displaying on TransForm N output nodes supporting JP2K
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Klíčové prvky
- Full 24bits processing, RGB4:4:4 sampling
- Best effort encoding of image with resolutions up to 2560x1600 at 30Hz
- JP2K encoding and multi-stream packetization enable high-end performance resulting in the visualization of up to 64 sources per display
- Intelligent shelf management helps to ensure a high uptime while minimizing noise and safeguarding the system
- Dual gigabit/s Ethernet interfaces allow deployment with redundant networks
- Easy configuration and status review by means of an easy to use web interface
- Hot swappable active components and rear-accessible passive connection board ensure high availability and low MTTR
Specifikace
| Rack mount | 2U height for 19" rack |
| Dimensions | 494.8 x 450.0 x87.1 mm (19.48 x 17.72 x 3.47 inch) without handles |
| Weight | 13.5 kg |
| Hot swappable | Power supplies, fans, shelf manager, front processing board, rear I/O boards |
| Noise Level | 45 dbA @ 25°C, 64 dbA @ 40°C |
| Inputs | 4 or 8 DVI input channels (dual link) |
| 8 or 16 DVI input channels (single link) | |
| Network connection | Redundant Gigabit Ethernet connection (2x RJ45) |
| service connection (RJ45) | |
| Pre-processing | Progressive scan, RGB 4:4:4 processing, high quality downscaling, alarming (signal lock) |
| Media encoding and delivery | Multicast RTP with proprietary multi-stream best effort frame rate, full resolution JPEG2000 encoded payload. Variable encoding latency depending on codec availability |
| Thumbnail encoding and delivery | Multicast RTP with configurable resolution and frame rate best effort JPEG2000 encoded payload. Variable encoding latency depending on codec availability. |
| Metadata delivery | Dynamic source labeling, input resolution, alarm status |
| Input power | 2x300 W |
| Hot swappable redundant power supply | |
| Input voltage | 90-264VAC |
| Input frequency | 47-63Hz |
| Inrush current limiting | 2x40A (max) |
| (redundant power supply) | |
| EMI | Input filtering Class B |
| PCF | 0.95 (power factor corrected) |
| Efficiency | 80% at typical load |
| Operating temperature | 0°C to 40°C |
| Heat dissipation | 900 BTU/h |
| Shelf management | Enables appliance auto-detection |
| Active fan speed regulation | |
| System health monitoring | |
| Emergency shutdown | |
| SNMP agent | |
| Browser based access to system statistics | |
| MTBF | Chassis (excl. fans and power supply: 2,746,000 h |
| Hot-swap power supply: 100,000 h | |
| Hot-swap fan module: 225,000 h | |
| Safety Regulations | CE, UL and CCC certified |

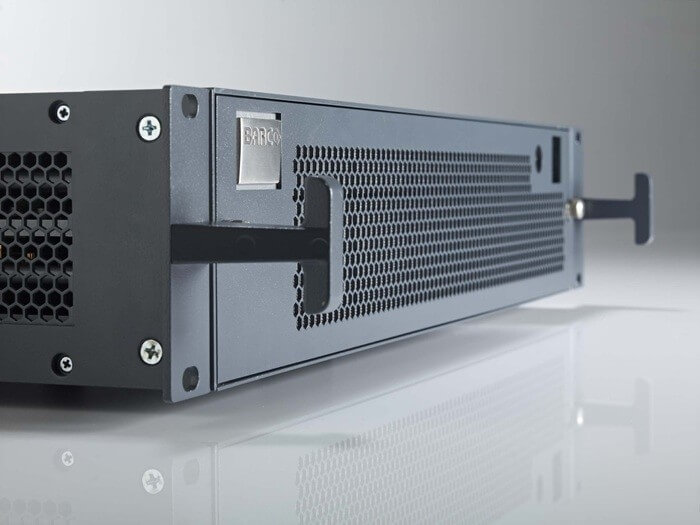

Fotogalerie
