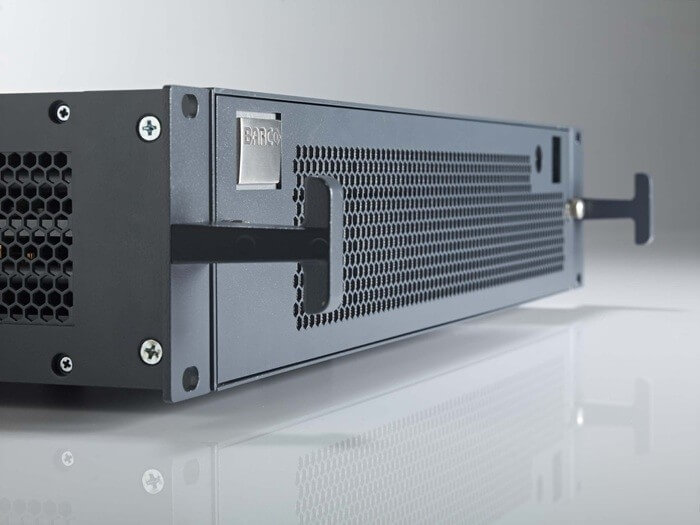

TransForm N 16-channel Analog Video Input Node
High density multi-channel analog video encoder. Barco’s 16 channel Analog Video Input Node is a standalone 2U managed appliance encoding and delivering the applied input signals across Ethernet for visually lossless display on one or multiple TransForm N
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Klíčové prvky
- Small form factor bulk encoding of 16 standard definition analog video input signals
- YUV 4:2:2 video sampling and full frame rate visually lossless encoding provide for broadcast quality visualization
- Low latency encoding
- JP2K scalable encoding and multi-stream packetization enable high end performance resulting in the visualization of up to 64 sources per display
- Intelligent shelf management helps to ensure a high uptime while minimizing noise and safeguarding the system
- Dual gigabit/s Ethernet interfaces allow deployment with redundant networks
- Easy configuration and status review by means of an easy to use web interface
- Hot swappable active components and rear-accessible passive connection board ensure high availability and low MTTR
Specifikace
| Platforms | NGC-102 and NGS-103 |
| Form factor | 2U housing for 19" rack |
| Dimensions | 494.8 x 450.0 x87.1 mm (19.48 x 17.72 x 3.47 inch) without handles |
| Weight | 13.5 kg (29.7 lbs) |
| Hot swappable | Power supplies, fans, shelf manager, front processing board, rear I/O boards |
| Noise Level | 45 dbA @ 25°C, 64 dbA @ 40°C |
| Inputs | analog video input channels |
| Video interface | 75 Ohm BNC, no loop-through |
| Network connection | redundant Gigabit Ethernet connection (2x RJ45) service connection (RJ45) |
| Pre-processing | High-quality scaler and deinterlacer, YUV 4:2:2 processing, alarming (video black, white, freeze and lock) |
| Media encoding and delivery | Multicast RTP with proprietary multi-stream full frame rate, full resolution JPEG2000 encoded payload. Fixed encoding latency <30msec. |
| Thumbnail encoding and delivery | Multicast RTP with configurable resolution and frame rate best effort JPEG2000 encoded payload. Variable encoding latency depending on codec availability. |
| Metadata delivery | Dynamic source labeling, video standard, alarm status |
| Input power | 2x300 W |
| Hot swappable redundant power supply | |
| Input voltage | 90-264 VAC |
| Input frequency | 47-63Hz |
| Inrush current limiting | 2x40A (max) |
| (redundant power supply) | |
| EMI | Input filter Class B |
| PCF | 0.95 (power factor corrected) |
| Efficiency | 80% at typical load |
| Operating temperature range | 0°C to 40°C |
| Heat dissipation | 900 BTU/h |
| Shelf management | Enables appliance auto-detection |
| Active fan speed regulation | |
| System health monitoring | |
| Emergency shutdown | |
| SNMP agent | |
| Browser based access to system statistics | |
| MTBF | Chassis (excl. fans and power supply): 2,746,000 h |
| Hot-swap power supply: 100,000 h | |
| Hot-swap fan module: 225,000 h | |
| Safety Regulations | CE, UL and CCC certified |
