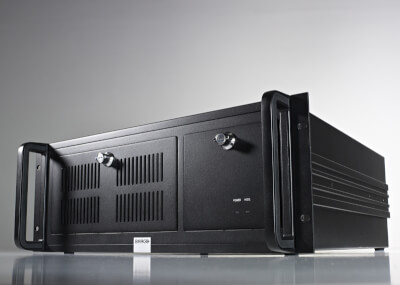

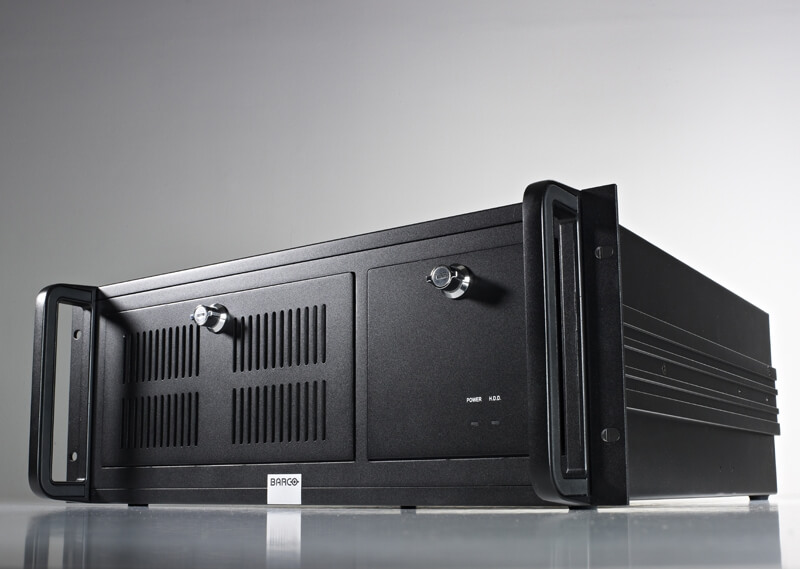

TransForm ECU-110

TransForm ECU-110 představuje výkonný kontrolér pracující na platformě Windows 7 se 64bitovým softwarem, který dokáže řídit velké video stěny sestavené z různých typů displejů. Tento výkonný kontrolér může generovat obraz až do 80 modulů kostek Barco OL-s



The TransForm ECU-110 is a powerful Windows 7 64-bit version controller capable of driving large video walls of many different display types. This powerful controller can generate a common operational picture spanning up to 80 modules with Barco's OL-series cubes, or even  up to 160 modules with the OVL-series cubes. The TransForm ECU-110 fulfills all demanding 24/7 control room visualization needs, and is easy to install and use. It comes preconfigured out of the box to assure a simplified and hassle-free setup. The auto-detection on the analog video and DVI/RGB inputs allow a complete installation in less than an hour.

Create, save and recall on the spot
The TransForm ECU-110 by default includes the Barco Display Control Software which can be launched from multiple operator desktops, allowing operators to create, save, or recall layouts on the spot. All sources can be opened and manipulated on the wall as fully scalable windows, without considering individual screen borders.

TransForm ECU-110 in a nutshell:

  •     Video wall controller for all typical needs
  •     Very large desktops for large common operational picture
  •     Avoid misrepresented schematics and symbols through the excellent image quality
  •     Freely moveable and resizable video windows
  •     Easy to use layout management
  •            • Standard Barco Display Control software
  •     High performance and high reliability, suited for 24/7 applications
  •     Easy installation
  •     Microsoft Windows 7 64-bit version operating system
  •     Can be operated through any pc in the LAN


General specifications
Operating system Windows 7 ultimate 64-bit
Software images Standard Barco Display Control
CPU Intel i7-2600K 3.4GHz quad-core with Intel Hyper-Threading technology
Memory 16 GB
Hard disk Dual 500GB HDD in RAID1 configuration
Optical drive DVD R/W
Network connection 2x1Gb/s LAN
Power Supply 500 W redundant power supply (100-240V, 50/60Hz)
Weight 26 kg (57.32 lbs) per chassis, without expansion modules
Housing rackmount 4U
Dimensions 500mm x 177 mm x 439 mm / 19.69in x 6.97in x 17.28in
Operating conditions
Temperature range 0-35°C | 32-95°F
Number of inputs and outputs
DL DVI/RGB inputs Up to 16
SD MPEG2/MPEG4 inputs --
JP2K inputs --
DL-DVI outputs --
Analog video inputs Up to 128
SL DVI/RGB inputs Up to 32
SL-DVI outputs Up to 40 (supporting loop-through)
