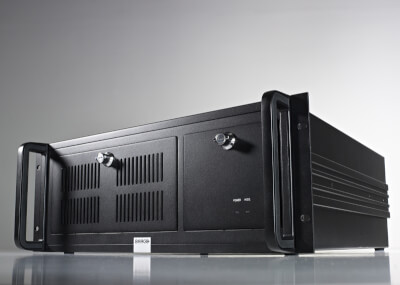

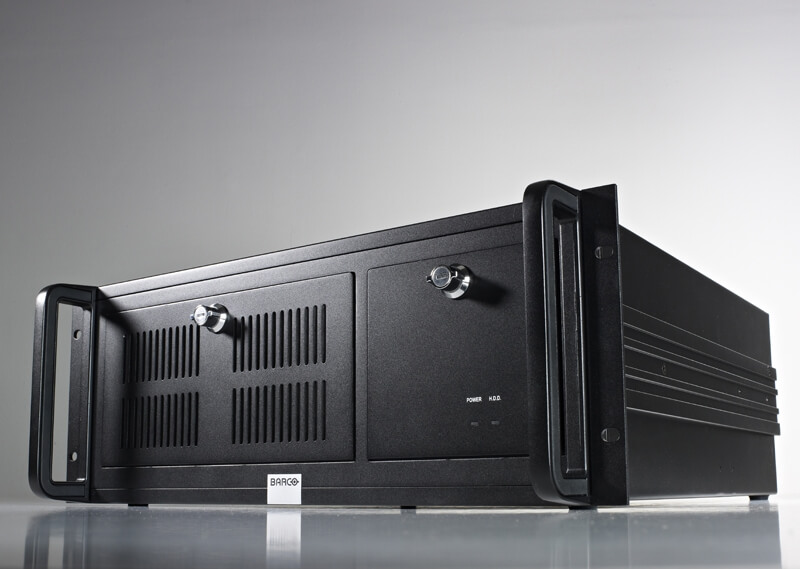

Transform ECU-100

Transform ECU-100 představuje výkonný kontrolér pracující na platformě Windows 7 se 64bitovým softwarem, který dokáže řídit velké video stěny sestavené z různých typů displejů. Tento výkonný kontrolér může generovat obraz až do 80 modulů kostek Barco OL-s

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

The TransForm ECU-100 is a powerful Windows 7 64-bit version controller capable of driving large video walls of many different display types. This powerful controller can generate a common operational picture spanning up to 80 modules with Barco's OL-series cubes, or even  up to 160 modules with the OVL-series cubes. The TransForm ECU-100 fulfills all demanding 24/7 control room visualization needs, and is easy to install and use. It comes preconfigured out of the box to assure a simplified and hassle-free setup. The auto-detection on the analog video and DVI/RGB inputs allow a complete installation in less than an hour.

Create, save and recall on the spot
The TransForm ECU-100 by default includes the Barco Display Control Software which can be launched from multiple operator desktops, allowing operators to create, save, or recall layouts on the spot. All sources can be opened and manipulated on the wall as fully scalable windows, without considering individual screen borders.

CMS compatible
Optionally the TransForm ECU-100 can be delivered with the advanced Barco Control Room Management Suite (CMS) software which enables collaboration between operators, managers and other authorized personnel in the Control Center using the intuitive and easy to use Side bar utility.

TransForm ECU-100 in a nutshell:
    Video wall controller for all typical needs
    Very large desktops for large common operational picture
    Avoid misrepresented schematics and symbols through the excellent image quality
    Freely moveable and resizable video windows
    Easy to use layout management
           • Standard Barco Display Control software
           • Optional enhancement: Barco Control Room Management Suite  (CMS)
                 - Software for sharing PC-content on the network
                 - Includes one display, two sidebar and 20 viewer licenses
    High performance and high reliability, suited for 24/7 applications
    Easy installation
    Microsoft Windows 7 64-bit version operating system
    Can be operated through any pc in the LAN

Specifikace

General specifications
Operating system     Windows 7 ultimate 64-bit
Software images   Standard Barco Display Control
  Optional Barco Control Room Management Suite (CMS)   (no streaming video support)
CPU  Intel Quad Core CPU 2.66 GHz
Memory  4 GB main memory
Hard disk Dual 500GB HDD in RAID1 configuration
Optical drive DVD R/W
Network connection 2x1Gb/s LAN
Power Supply    500 W redundant power supply (100-240V, 50/60Hz)
Weight  26 kg (57.32 lbs) per chassis, without expansion modules
Housing  rackmount 4U
Dimensions  500mm x 177 mm x 439 mm / 19.69in x 6.97in x 17.28in
Operating conditions
Temperature range  0-35°C | 32-95°F
Number of inputs and outputs
DL DVI/RGB inputs --
SD MPEG2/MPEG4 inputs                    --
JP2K inputs     --
DL-DVI outputs     --
Analog video inputs   Up to 128
SL DVI/RGB inputs     Up to 32
SL-DVI outputs     Up to 40 (supporting loop-through)
