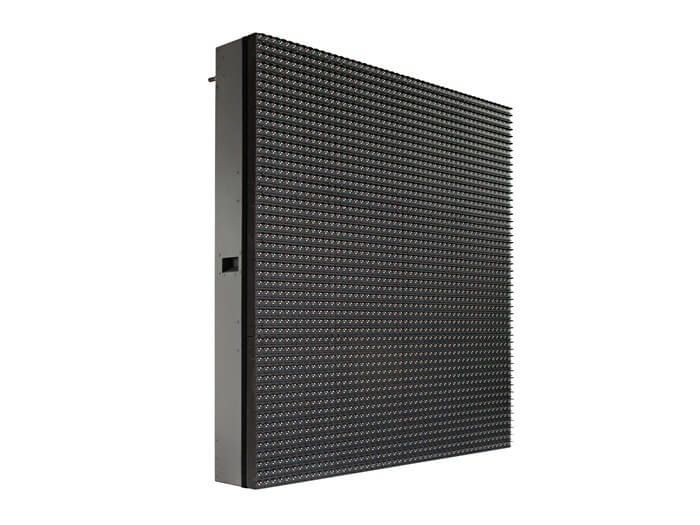

TF16
Série Barco TF nabízí spolehlivost při nepřetržitém provozu a nízké pořizovací náklady. Díky nízké spotřebě energie a nízké hmotnosti jsou Barco LED displeje řady TF perfektním řešením pro digital signage a sportovní aplikace.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Barco's TF series offers 24/7 reliability at a low cost of ownership. With less power consumption and a lighter weight than similar products, Barco's TF LED displays are a perfect fit for digital signage and sports applications.
Featuring contrast-enhancing shaders
The TF16 features environmentally friendly technologies that reduce light pollution, such as contrast-enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs. This ensures that light is well targeted at your audience and that less excess light is spilled, which leads to a lower power consumption and longer lifetime.
Featuring contrast-enhancing shaders
The TF16 features environmentally friendly technologies that reduce light pollution, such as contrast-enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs. This ensures that light is well targeted at your audience and that less excess light is spilled, which leads to a lower power consumption and longer lifetime.
Specifikace
| Pixel pitch | 16.0 mm |
| Brightness | 6,000 nits |
| LED configuration | 1R, 1G, 1B tilted downwards |
| Pixel density | 11,739/sqm |
| 1,092/sqf | |
| 3,600/tile (60x60) | |
| Hor. viewing angle | +70°/-70° |
| Vert. viewing angle | -30°/+20° |
| Power consumption | 119W/m² (average) |
| 460W/m² (max.) | |
| Heat dissipation | 406BTU/hr/m² (typical) |
| Tile dimensions | Width: 960mm |
| Height: 960mm | |
| Depth: 225mm | |
| Weight / Tile | 39.2 kg (83.77 lbs) |
| IP rating | IP65/54 |
| Processing | 16 bit/color |
| Serviceability | Front or back |
| Operating temperature | -20 to +50°C (-4° to 122°F) |
| Operational humidity | 10-99% |
| Certifications | ETL, CE, FCC Class A, RoHS |
